Data sheet
CNX 64
CNX 150
Description

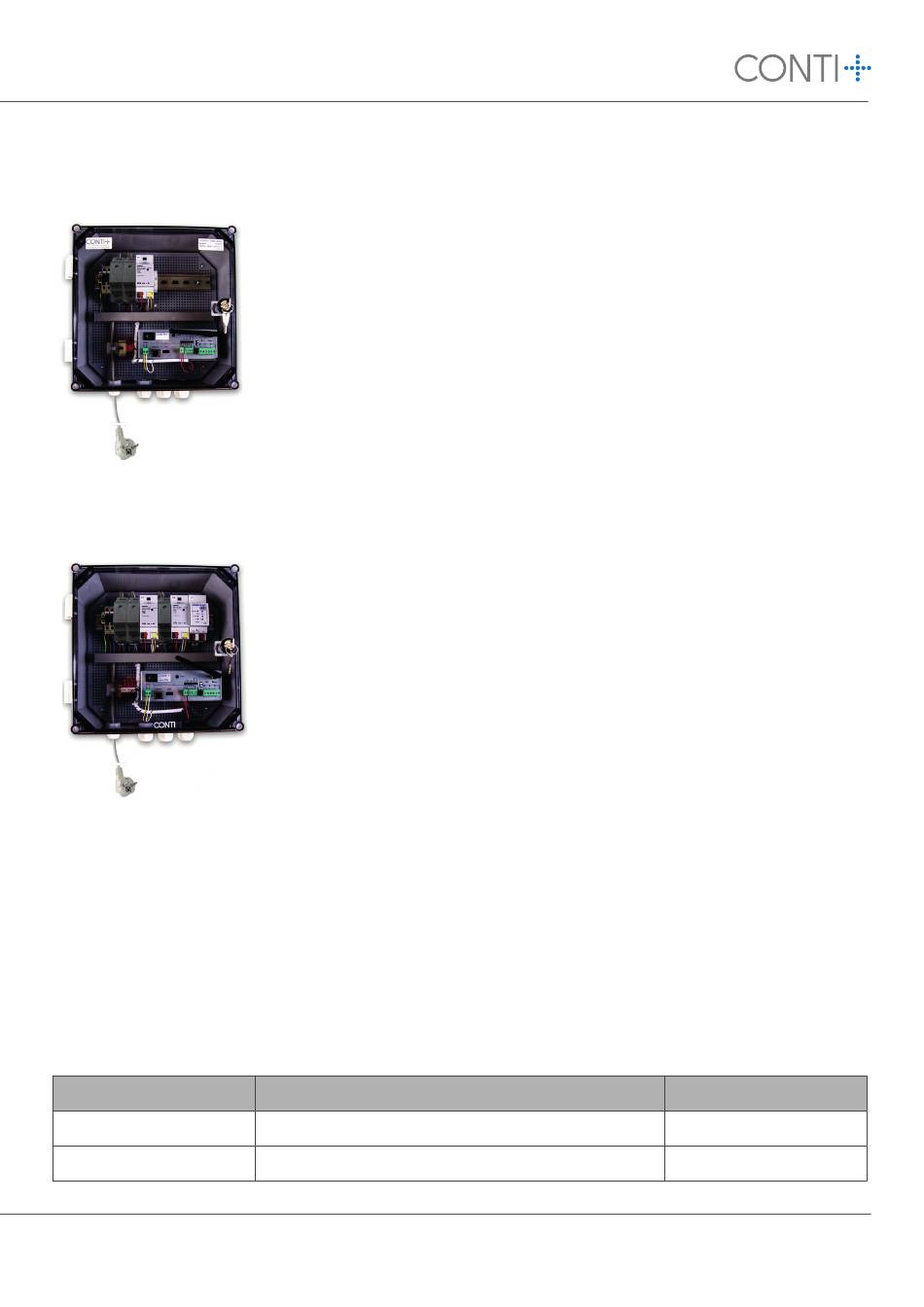

Control cabinet CNX 64
Control cabinet CNX 150
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
Control cabinet CNX 64/150
Power supply and control for max. 64/150 CONBUS-CNX fittings, including 10" tablet
as central operating unit, with integrated web server including software for setting,
control and monitoring, integration into the CNX field bus system, possibility of con-
nection to the building control system, data transmission via LAN and WLAN, wired
ready for connection, connection cable with Schuko plug, generous variable cable
topology up to 350 meters in line, star or tree structure, for wall mounting.
Consisting of:
•
Housing: plastic, with door, RAL 7035
•
CNX controller with proprietary robust bus system on field level, with LAN
connection as well as WLAN antenna, SD card for lifelong data backup, potentail
free inputs for start THS, THS successful, group error message, inputs for THS abort,
deactivation shower operation and acknowledgement group error message, KNX
integration possibility via KNXnet/IP Baos module
•
Tablet 10": with menu-driven innovative user interface, integrated clock and
calendar function.
•
Tablet functions: Operating, querying and setting of the entire system, groups or
individual fittings locally via touch screen and Internet web browser, with user log-
in, export function of system and status logs
Function overview:
•
Water running time: Setting option for normal operation, hygienic flushing and
thermal disinfection.
•
Hygienic flushing: Option of selection, setting and combination (manual, depending
on use and calendar),
•
Thermal disinfection: Automatic, variable execution according to DVGW W551,
with temperature logging in PDF format with optional temperature sensors
•
Cleaning shutdown: Manually or optionally via external contact
•
Operating and fault messages with storage in PDF format
•
Power supply unit: Approval according to EN60950-1 / VDE 0805-1, EN61000-4-
2,3,4,5,6,8,11, EN61000-3-2,-3
Input voltage: 230V/50Hz
Output voltage: 26-28V/DC (KNX)
Power consumption: 2A
Power consumption max.: 0,1 kW
Communication: Interfaces 1 x USB, 1 x Ethernet, web server for a web client
Protection class: I
Protection class: IP 65
Dimensions: 300 x 300 x 160 mm (HxWxD)
The electrical wiring may only be carried out by a qualified electrician in accordance with
DIN VDE 105-100.
for up to 5 line segments / max. 64 fittings
for up to 8 line segments / max. 150 fittings
Order-No.
CONO140000
CONO150000
