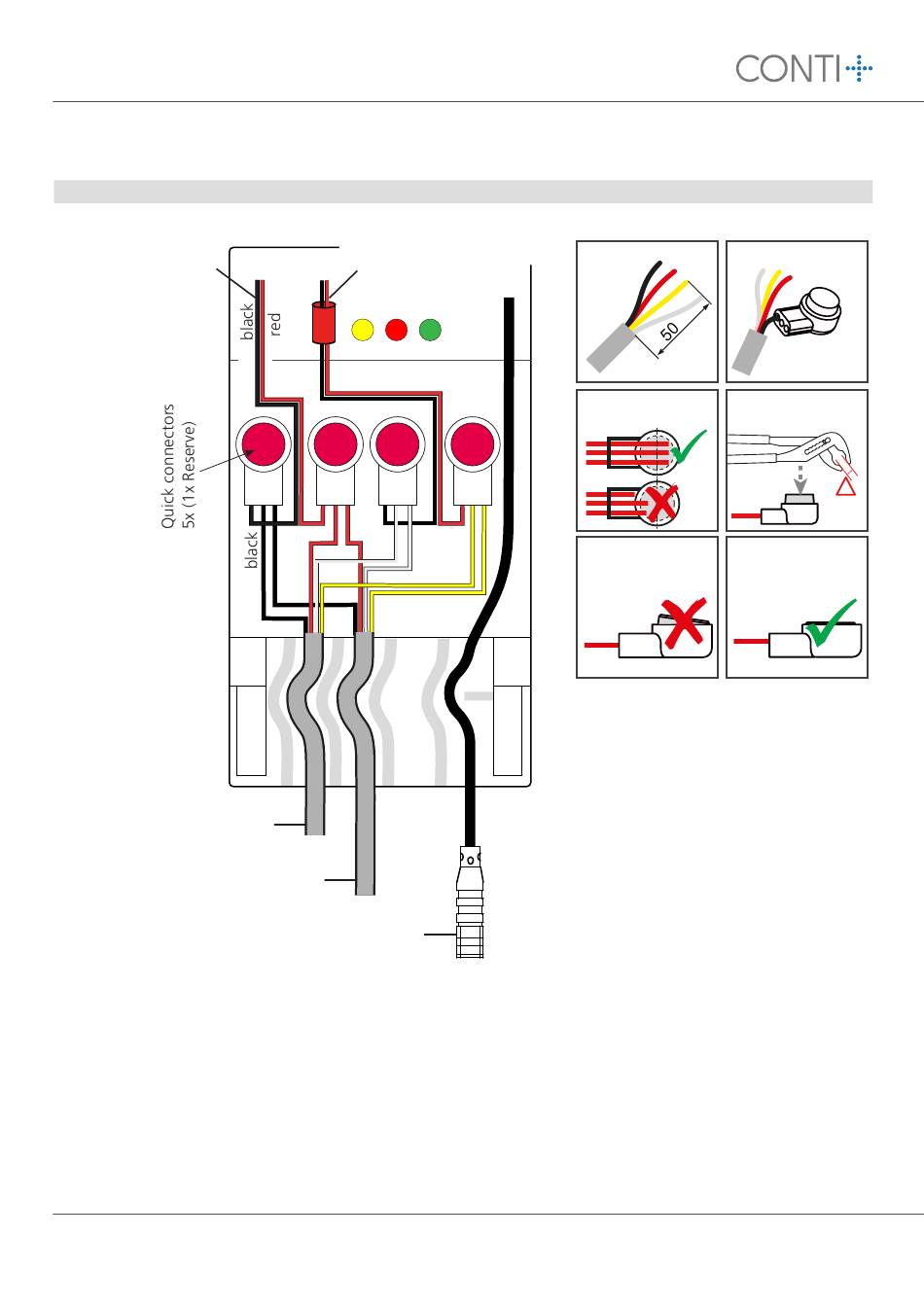

Wiring – ONLY valid for CONPRIMUS and lino PRIMUS

CNX Converter (CONO210012) for CONPRIMUS shower panel

30 V/DC
Supply CNX (BUS)
30 V/DC and 24 V/DC
from power supply unit
30 V/DC and 24 V/DC
to further converters / showers
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
24 V/DC
Supply E-Thermostat
red
white
yellow
6 V/DC Connection to
E-Thermostat
dismantle lead in
squeeze parallel
Transparent back
not closed correctly completely closed
Do not strip
single wires
!
parallel
