Cnx Converter (Cono210000) For Shower Panels, Flush-Mounted Showers And Urinal Fittings; Cnx Converter (Cono214641) In Flush-Mounted Housing For Washbasin Taps - Conti+ CNX 64 Montageanleitung

45

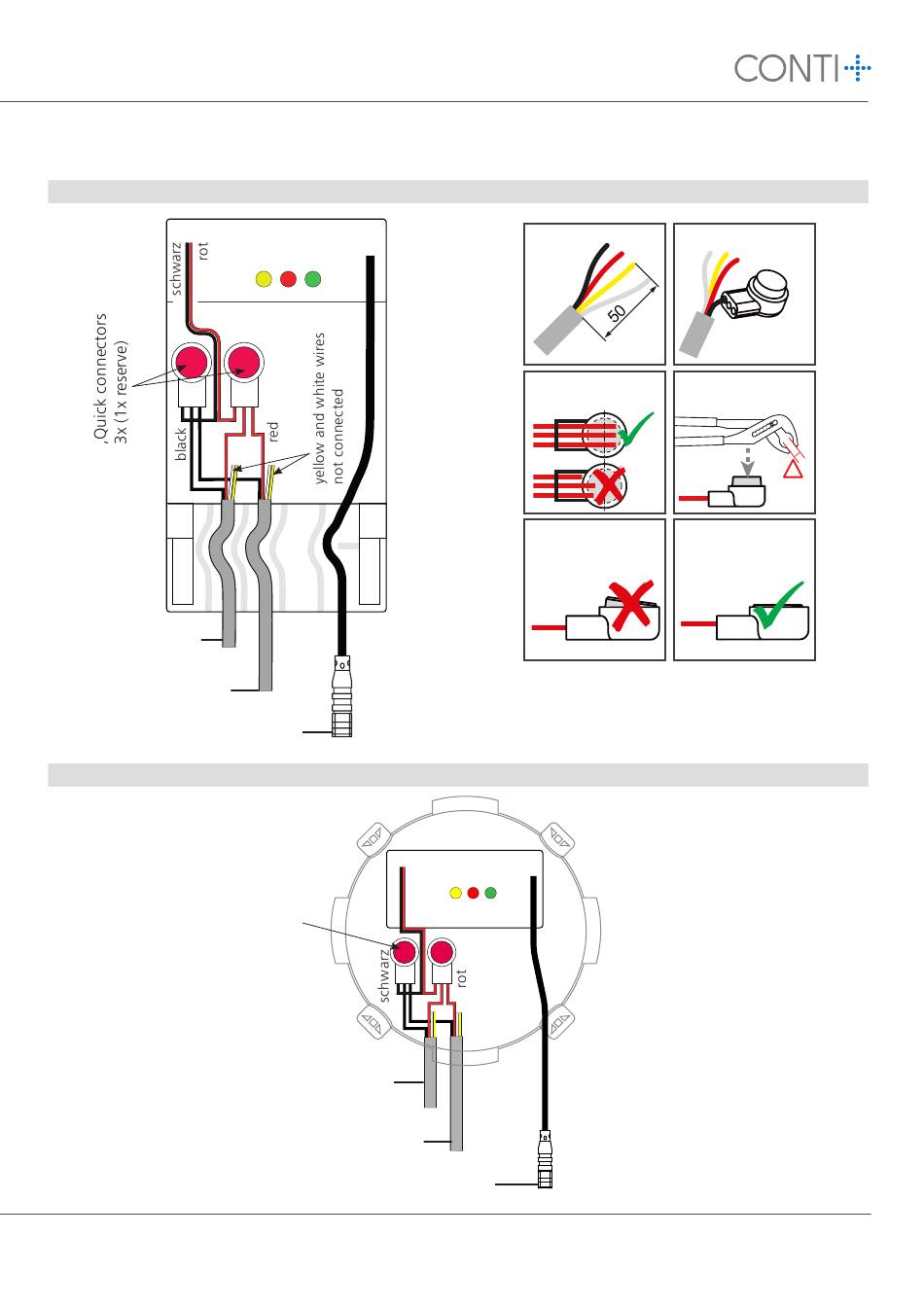

Wiring – NOT valid for CONPRIMUS and lino PRIMUS

CNX Converter (CONO210000) for shower panels, flush-mounted showers and urinal fittings

30 V/DC from
CNX control cabinet
30 V/DC to further
fittings / converters
6 V/DC to
control logic

CNX Converter (CONO214641) in flush-mounted housing for washbasin taps

Quick connectors
3x (1x reserve)
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
30 V/DC from
CNX control cabinet
30 V/DC to further
fittings / converters
6 V/DC to
control electronic
dismantle lead in
squeeze parallel
Transparent back
not closed correctly completely closed
Do not strip
single wires
!
parallel
