Overview Cnx Control Cabinet - Conti+ CNX 64 Montageanleitung

40

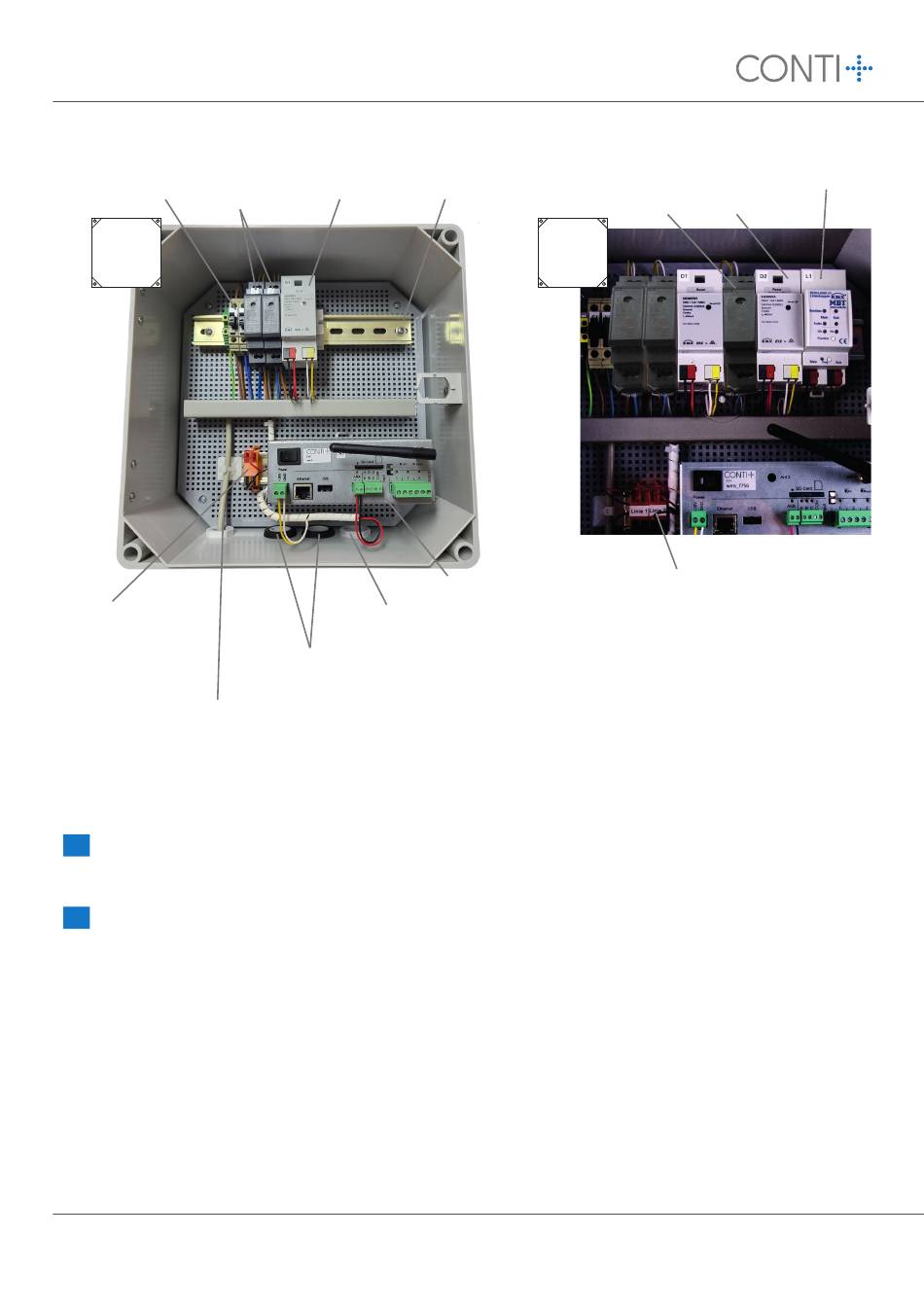

Overview CNX Control cabinet

Fuses Power supply
units
CNX
64
Terminal for connecting
the line segments
Connection cable (2 meters) with protective
contact plug for connection to 230 V/AC
protective contact socket
! The CNX control cabinet is delivered wired ready for connection. The connections of the individual line segments
must be made on site according to these installation instructions.
The control cabinet is connected to a 230 V/AC grounded socket via the 2 meter connection cable.
! As soon as the system is supplied with voltage and the CNX controller is switched on, the basic functions of the
showers / fittings can already be used with factory settings, even if the commissioning of the CNX system has not
yet taken place.
Please note:
The CNX control cabinet must be permanently supplied with voltage. Without power supply, the functions of the
showers / fittings cannot be used.
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
Choke DIN top-hat rail
Cable gland for Ethernet
cable insertion
Cable glands for insertion
of the line segments
CNX
150
CNX Controller
third power second
supply unit choke
Second terminal for connecting
the line segments (6 - 8)
Line coupler
