Switch on system
The controller of the CNX system can be switched on as soon as the following requirements are met:
•
CNX control cabinet is mounted and connected
•
Connection lines laid and connected in empty conduit on site according to topologies
•
One CNX Converter installed and connected per shower / fitting
•
Showers / fittings mounted and connected (water and voltage supply established)
Connect the CNX control cabinet to a 230 V/AC socket via the connection cable and switch on the CNX control-
ler at the power switch (B1).
After switching on the controller check if:
•
the LEDs on the power supplies (A) and on the controller (B) light up continuously.
•
the LEDs at the CNX Converters (C) flash green
•
the LEDs at the controllers of the showers (D) flash red 8 times quickly directly after power supply
•
the LEDs on the sensor electronics of the washbasin and urinal fittings (E) flash red
•
the LEDs on the control unit of CONPRIMUS showers (F) flash green.
If all LEDs light up or flash as indicated, carry out a function test of the connected showers and fittings by trigge-
ring each individual shower and fitting (press piezo switch or activate via IR sensor). After a successful function
test, all showers and fittings can already be used with their respective factory settings and the commissioning of
the CNX system can be performed.

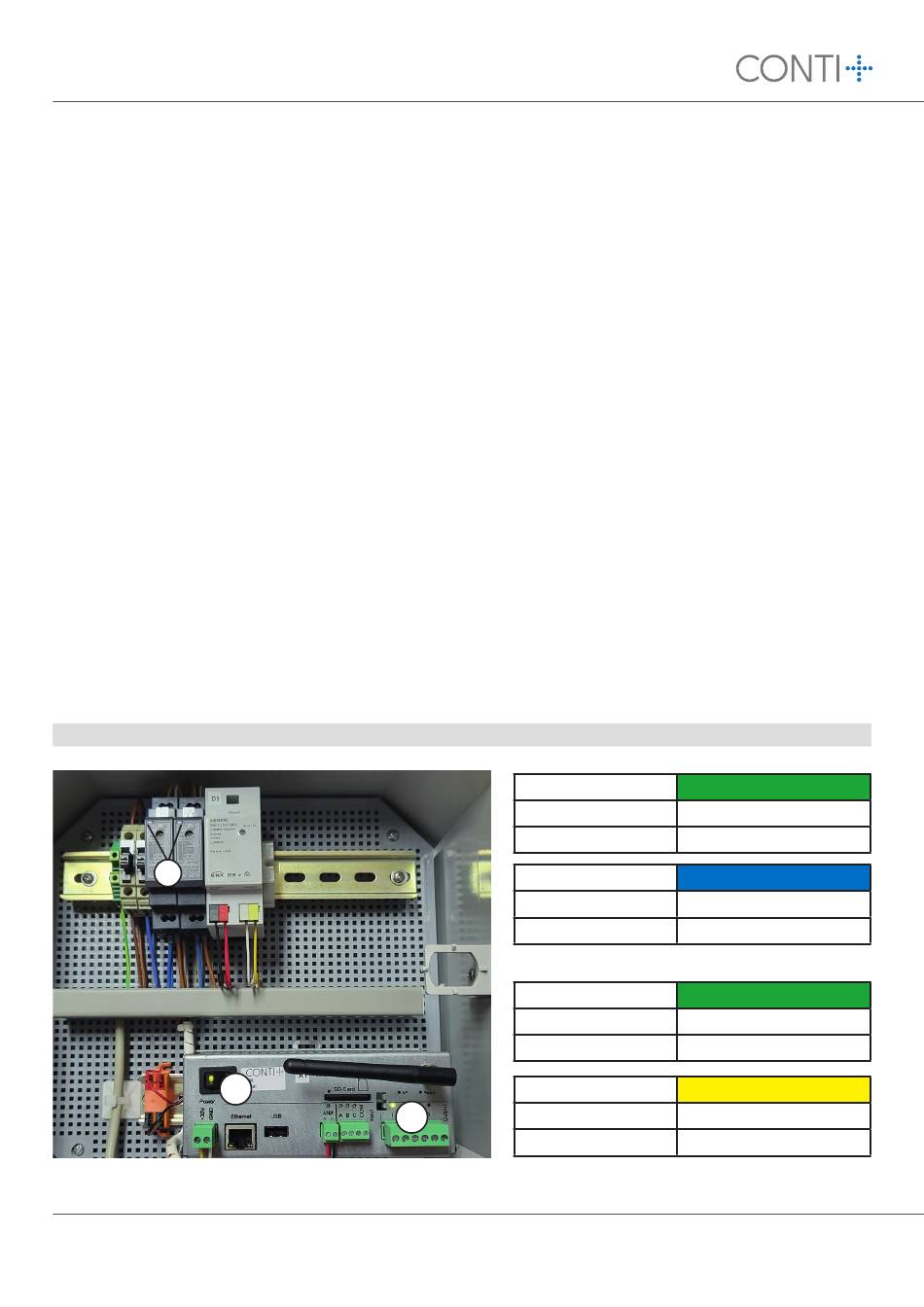

LED Status
CNX Controller
A
B1
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
LED display (A)
Lights up steady
no signal
LED display (A)
Lights up steady
no signal
LED display (B1)
Lights up steady
no signal
LED display (B2)
B2
Lights up steady
no signal
gree (until year 2021)
Power supply OK
System powerless
blue (from year 2021)
Power supply OK
System powerless
grün
Power supply OK
System powerless
gelb
Signal pending
System powerless
