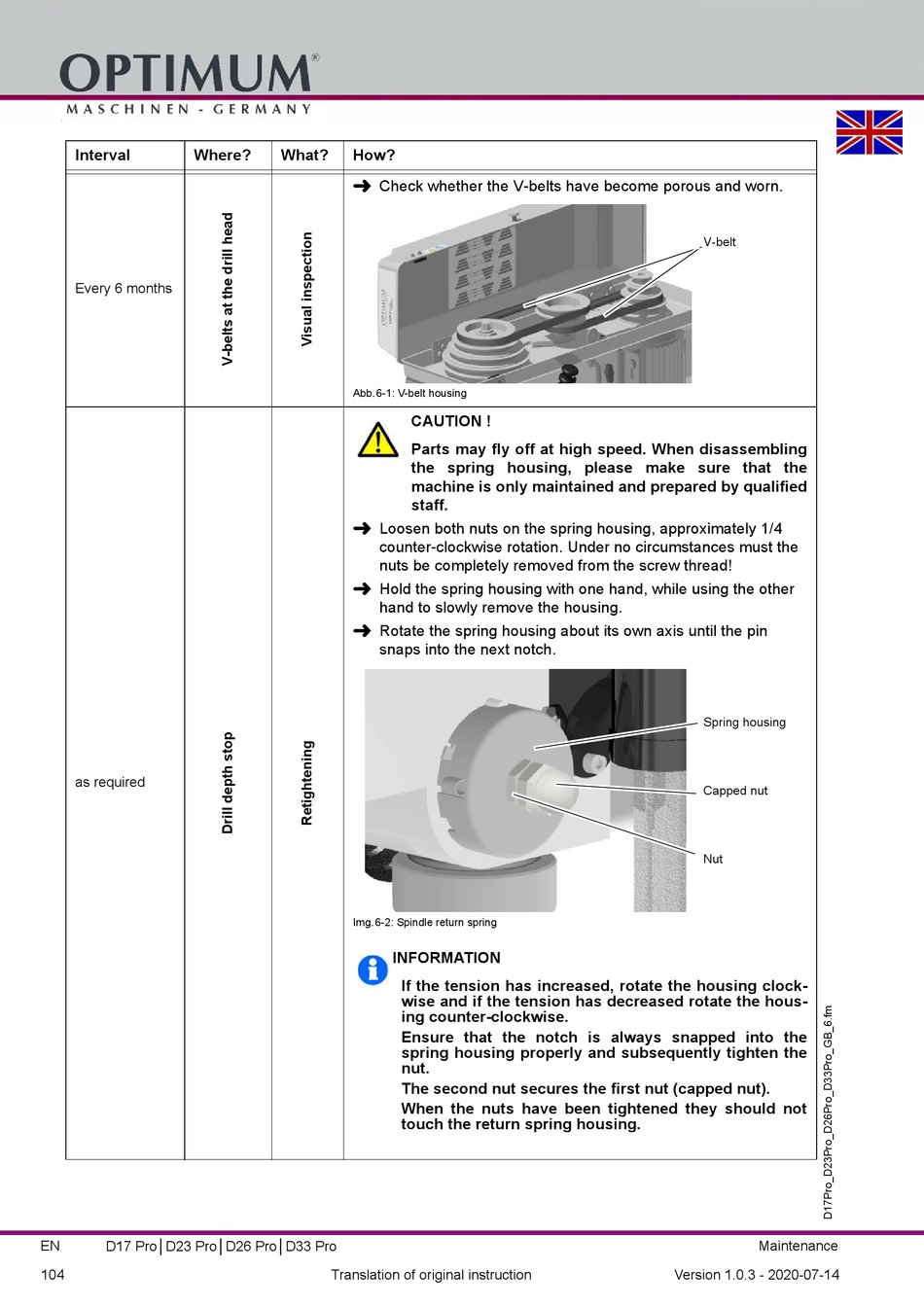

Interval
Where?
Every 6 months
as required
EN
D17 Pro│D23 Pro│D26 Pro│D33 Pro
104
What?
How?
Check whether the V-belts have become porous and worn.
Abb. 6-1: V-belt housing
CAUTION !
Parts may fly off at high speed. When disassembling
the spring housing, please make sure that the
machine is only maintained and prepared by qualified
staff.
Loosen both nuts on the spring housing, approximately 1/4
counter-clockwise rotation. Under no circumstances must the
nuts be completely removed from the screw thread!
Hold the spring housing with one hand, while using the other
hand to slowly remove the housing.
Rotate the spring housing about its own axis until the pin
snaps into the next notch.
Img. 6-2: Spindle return spring
INFORMATION
If the tension has increased, rotate the housing clock-
wise and if the tension has decreased rotate the hous-
ing counter-clockwise.
Ensure that the notch is always snapped into the
spring housing properly and subsequently tighten the
nut.
The second nut secures the first nut (capped nut).
When the nuts have been tightened they should not
touch the return spring housing.
Translation of original instruction
V-belt
Spring housing
Capped nut
Nut
Maintenance
Version 1.0.3 - 2020-07-14
