Tractel Tralift Cleantech Installations-, Gebrauchs- Und Wartungsanleitung Seite 5

Flaschenzüge
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen
  • DE

Verfügbare Sprachen

  • DEUTSCH, seite 17
OK

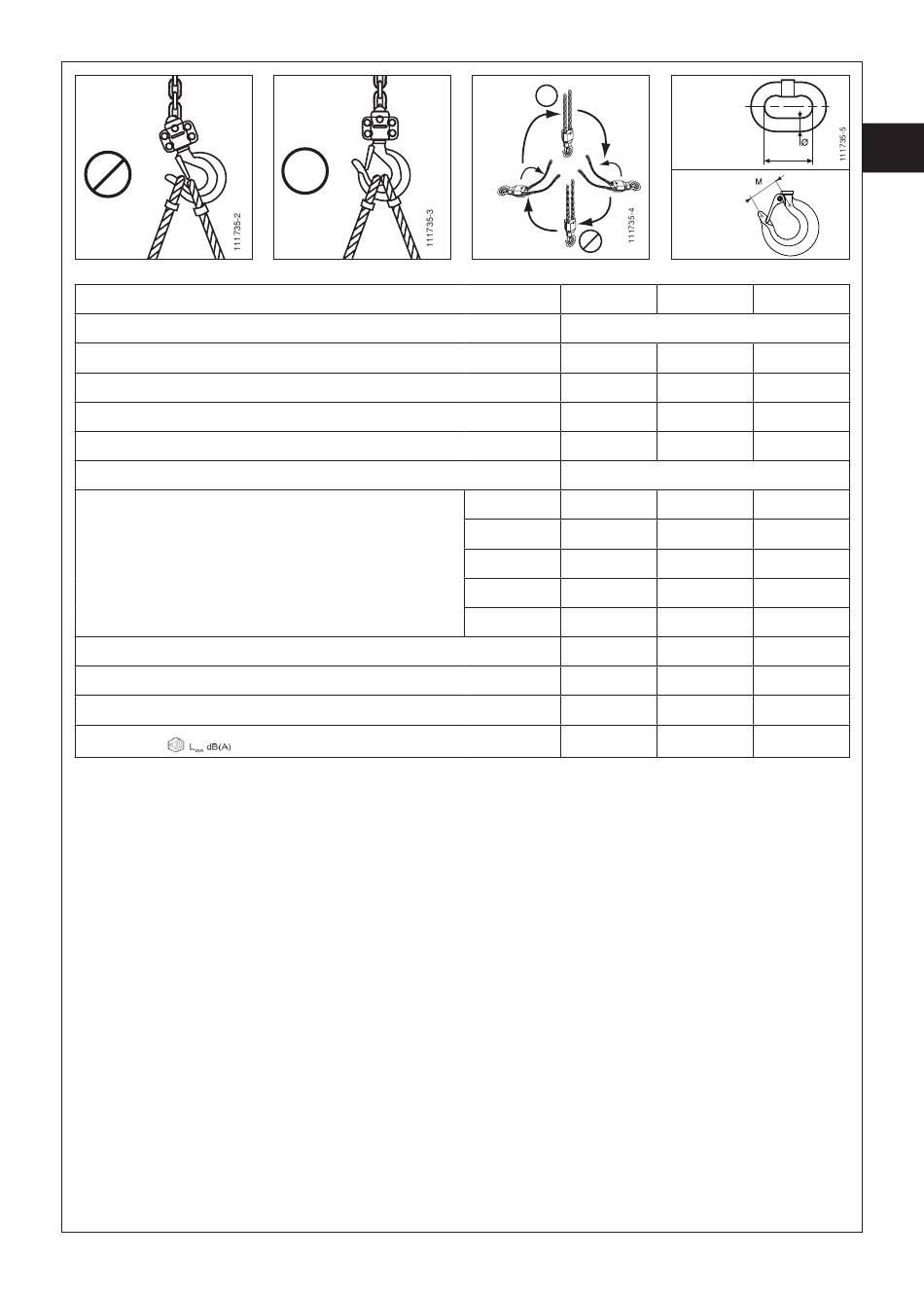

fig. 2
WLL*(t)
Standard lifting height (m)
Minimum distance between hooks Hmin (mm)
Pulling force on the hand chain at the WLL (daN)
Number of falls (lifting chain)
Lifting chain dimensions Ø x P (see fig. 5) (mm)
Hand chain dimensions Ø x P (see fig. 5) (mm)
Dimensions (mm)
Net weight (kg)
Additional weight by lifting m. (kg)
Noise level at 1m dB(A)
Noise level
: for higher lifting heights contact Tractel
(1)
3. INSTALLATION
Before installing the Tralift™ Cleantech hoist
make the following checks:
1. Check that the hoist is in good condition.
2. Check that the load to be lifted is less than
or equal to the WLL* of the hoist.
3. Check that the hook (item 2, fig. 1) and the
safety latches (item 6, fig. 1) are in good
condition.
4. Check that the end of the load chain, slack
strand side, is secured to the low limit stop
of the hoist (item 4, fig. 1).
5. Check that the markings comply with §9.
6. Check that the pulley block shows no
signs of damage and that the load sheave
turns freely.
7. When using a hoist with load chain com­
prising several strands, make sure that the
strands are neither tangled or twisted.
OK
fig. 3
(1)
.
®
OK
fig. 4
OK
0.5
376
15
1
6x18
A
172
B
151
C
26
D
40
M
46.5
13
1.7
88
96
8. Check that the load chain is neither twisted
or damaged. Check in particular that the
load chain is correctly positioned in the
unit's drive sheave.
9. Check that the hand chain is in place and
is not tangled with the load chain.
10. Make sure that the strength of the hoist
anchor point is greater than or equal to the
load to be lifted.
After successfully completing the preliminary
checks, install the Tralift™ Cleantech hoist on
its anchoring point and perform the following
checks:
1. Check that the Tralift™ Cleantech hoist is
properly suspended by its suspension hook
(item 5, fig. 1) and that the hook safety
catch (item 6, fig. 1) is properly closed (see
figs 2 and 3).
5
fig. 5
P
fig. 6
1
2
3
376
425
31
34
1
2
7x21
7x21
5x23.3
172
192
151
151
26
34
40
50
46.5
61.5
14
21
2
3.1
91
89
99
97
