8 Main menu value call-up

Parameters: Supplementary heating
Setting value: No / Yes
Parameters: Hysteresis setpoint temperature
Setting value: 0.1 ... 0.3 ... 1 K
Supplementary heating, e.g. using an electric or
hydraulic heat register. The Hysteresis setpoint
temperature parameter can still be set for adjust-
ment purposes. The hysteresis relates to the
room setpoint temperature set in the short code
menu.
7.1.11 EnOcean wireless (E-SM plug-in mod-
ule)
Parameters: EnOcean wireless
Setting value: no / yes
Parameters: Teaching mode
Setting value: inactive / active
Parameters: Unit list
Setting value: inactive / active
Parameters: Teach-out units
Setting value: Here you can either teach-out all
or just individual EnOcean wireless units.
7.1.12 KNX (K-SM plug-in module)
Parameters: KNX
Setting value: no / yes
7.1.13 BACnet
For further parameters, see BACnet description of
parameters. This can be downloaded from the
service area at www.aerex.de.
7.1.14 Switching test
Parameters: Supply air fan
Setting value: Off / On
Parameters: Exhaust air fan
Setting value: Off / On
Parameters: Bypass shutter
Setting value: Open / Closed
Parameters: Electric heat register
Setting value: Off / On
Parameters: Switching contact of basic board
(main board)
Setting value: Off / On
Parameters: Brine circulation pump (ZP 1)
Setting value: Off / On
Parameters: Zone shutter, zone 1 (ZP 1)
Setting value: Left / Centre
Parameters: Zone shutter, zone 2 (ZP 1)
Setting value: Right / Centre
Parameters: 3-way air shutter (ZP 1)
Setting value: Off / On
Parameters: Supplementary heating relay (ZP 1)
Setting value: Off / On
34
7.1.15 Internet
Parameters: IP address configuration
Setting value: Static / Dynamic (DHCP)
Parameters: IP address
Setting value: 192.168.1.100
Parameters: Subnet mask
Setting value: 255.255.255.0
Parameters: Gateway
Parameters: DNS
Parameter: air@home
Setting value: No / Yes
Parameters: Web server reset login
Setting value: reset / do not reset
8 Main menu value call-up
Current system values, such as temper-
ature and humidity measurement values
or system statuses can be retrieved in
the main menu value call-up.

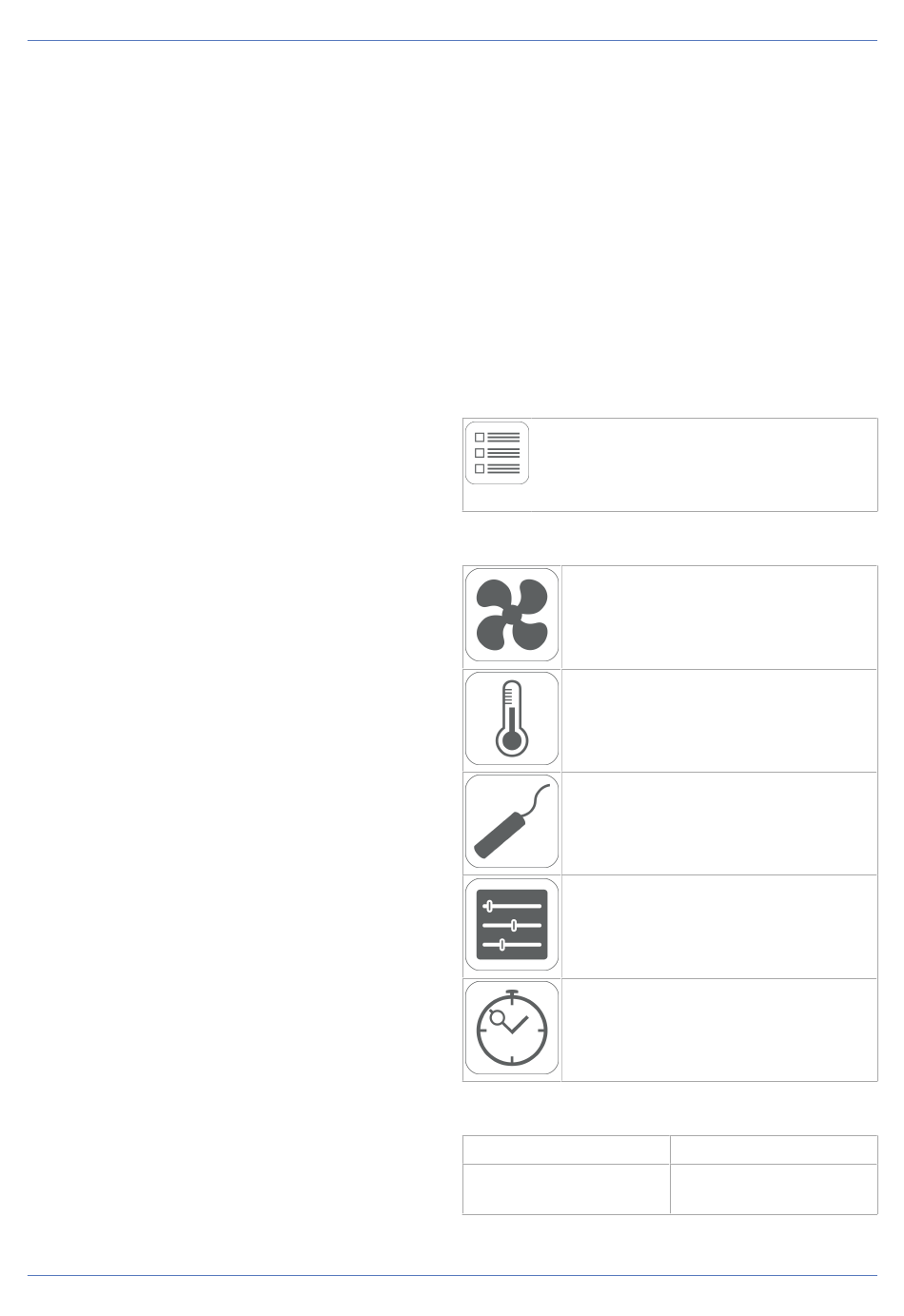

8.1 Operating structure for call-up

Ventilation

Temperatures
Sensors
Switching statuses
Operating hours
8.2 Ventilation
Parameters
Current ventilation level Current ventilation level
Display
running
