5 RLS T1 SYS room air control

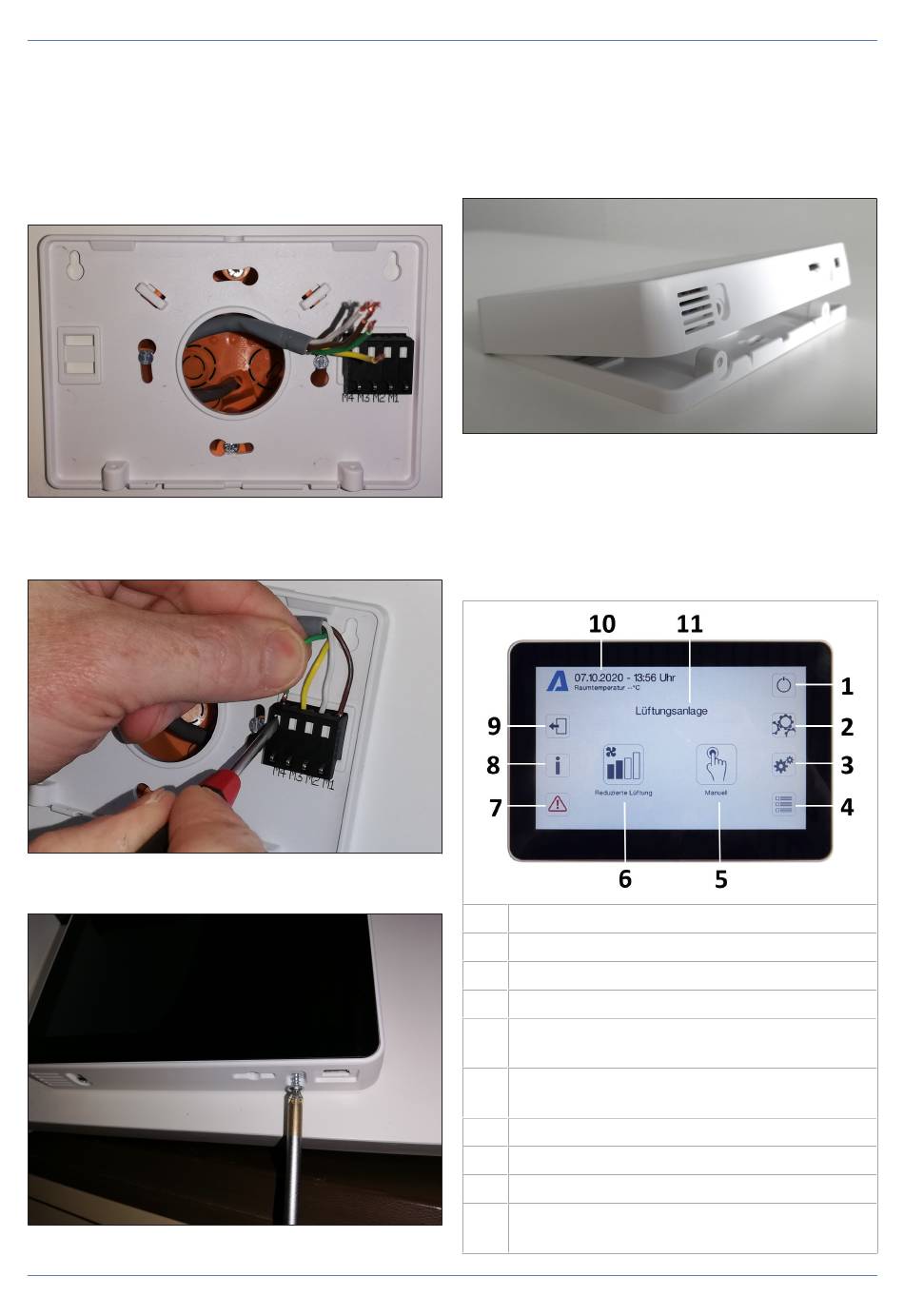

2. Route connection cables at installation loca-
tion. Permitted: Shielded control cable, e.g.
LIYY 4 x 0.34 mm².
Fitting touchscreen control unit at installation
location
3. Fit supplied mounting plate on flush-mounted
box.
4. Wire up electrics for connection terminal integ-
rated on the installation plate as shown in the
enclosed wiring diagram.
5. Attach touchscreen control panel and secure
with the 2 screws provided.
6. Check function of the touchscreen control
panel.

5.1.2 Replacing touchscreen control panel

1. Loosen 2 screws on control unit.
2. Take off control panel.

5.2 General explanation for RLS T1

SYS room air control

Touchscreen control panel for ventilation units
with air@home control.

5.2.1 Standard display/start screen

1 Main switch
2 System settings
3 Unit settings
4 Unit query
5 Current operating mode / operating mode
selection
6 Current ventilation level / ventilation level
selection
7 Current fault messages
8 Current notes
9 Logout
10 Date, time, room temperature, CO2 value
of current unit
