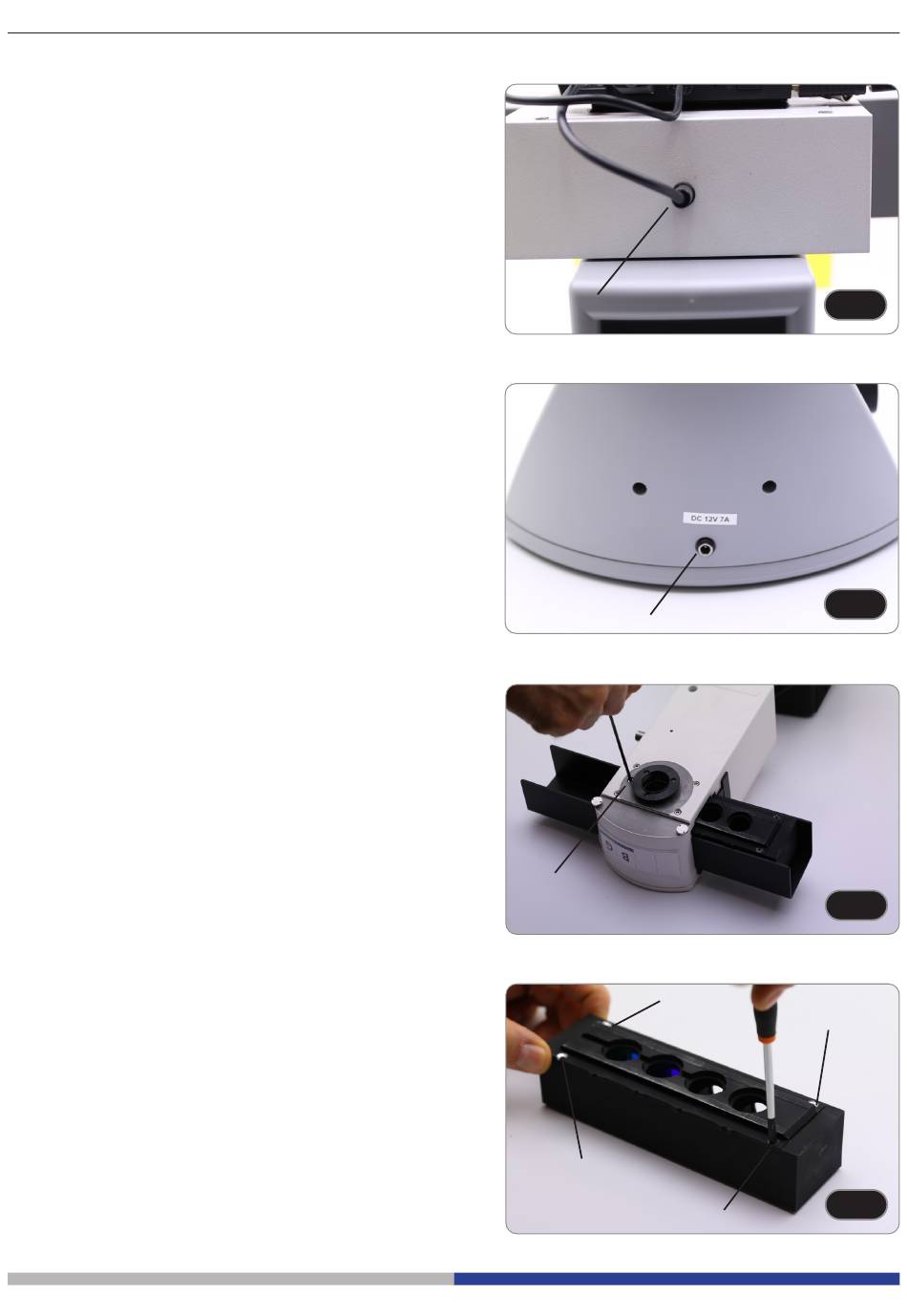

8. Using the multipower cable, plug the fluorescence power

supply in the connector ① on the back side of the fluores-

cence illuminator. (Fig. 34)

9. Insert the power supply jack in the connector ② placed at the

rear side of the microscope. (Fig. 35)

Installing fluorescence filter (B-510FL)

1. Remove the illuminator from the stand and place it on the

2. Loosen the locking screw ① of the filter slider with an Allen

wrench provided. (Fig. 36)

3. Remove the filter slider from the illuminator.

4. Use a Phillips screwdriver to unscrew the four screws ② to

open the filter slider. (Fig. 37-38)
