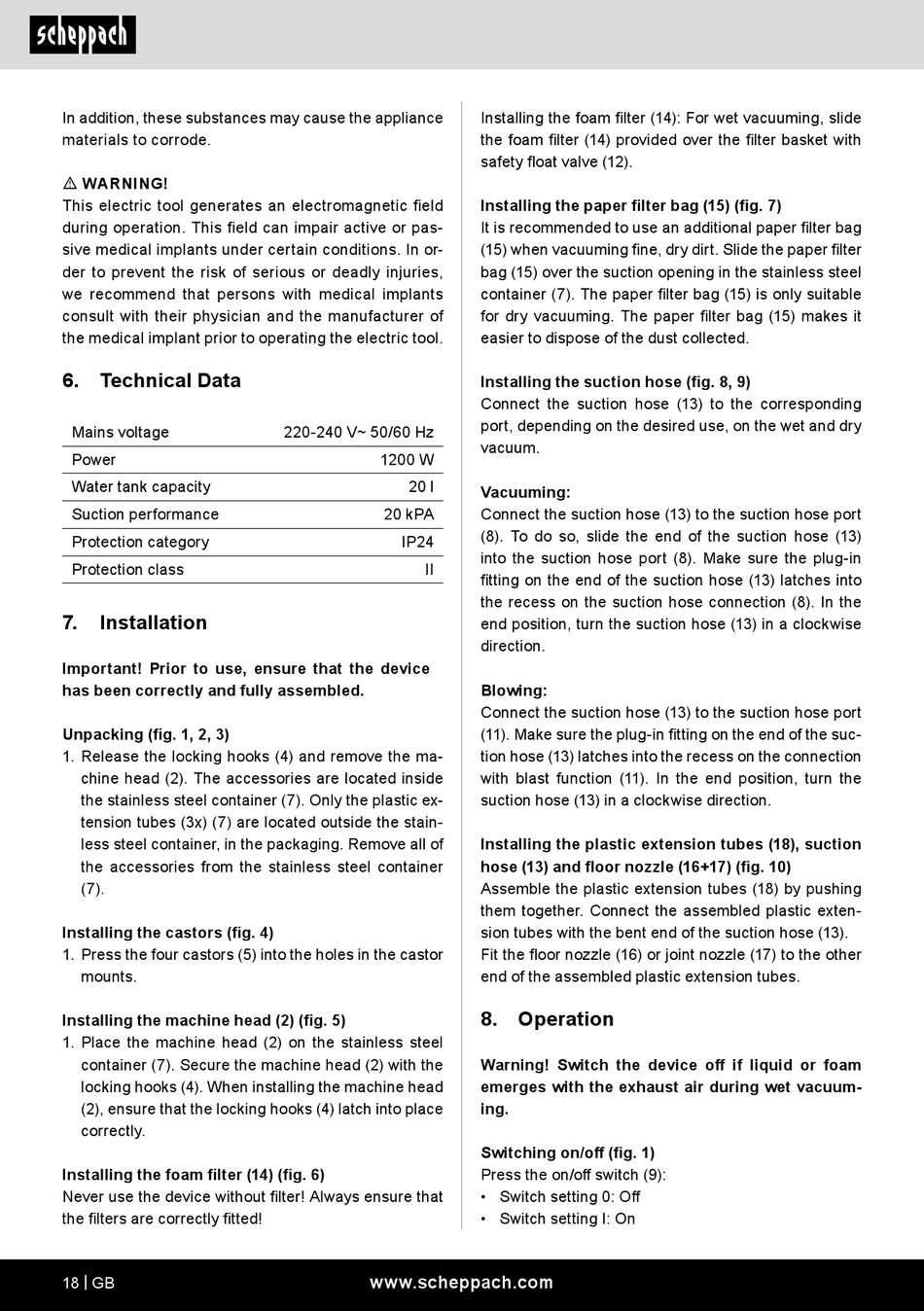

In addition, these substances may cause the appliance
materials to corrode.
m WARNING!
This electric tool generates an electromagnetic field
during operation. This field can impair active or pas-
sive medical implants under certain conditions. In or-
der to prevent the risk of serious or deadly injuries,
we recommend that persons with medical implants
consult with their physician and the manufacturer of
the medical implant prior to operating the electric tool.

6. Technical Data

Mains voltage
Power
Water tank capacity
Suction performance
Protection category
Protection class
7.

Installation

Important! Prior to use, ensure that the device
has been correctly and fully assembled.
Unpacking (fig. 1, 2, 3)
1. Release the locking hooks (4) and remove the ma-
chine head (2). The accessories are located inside
the stainless steel container (7). Only the plastic ex-
tension tubes (3x) (7) are located outside the stain-
less steel container, in the packaging. Remove all of
the accessories from the stainless steel container
(7).
Installing the castors (fig. 4)
1. Press the four castors (5) into the holes in the castor
mounts.
Installing the machine head (2) (fig. 5)
1. Place the machine head (2) on the stainless steel
container (7). Secure the machine head (2) with the
locking hooks (4). When installing the machine head
(2), ensure that the locking hooks (4) latch into place
correctly.
Installing the foam filter (14) (fig. 6)
Never use the device without filter! Always ensure that
the filters are correctly fitted!
18 | GB
220-240 V~ 50/60 Hz
1200 W
20 l
20 kPA
IP24
II
www.scheppach.com
Installing the foam filter (14): For wet vacuuming, slide
the foam filter (14) provided over the filter basket with
safety float valve (12).
Installing the paper filter bag (15) (fig. 7)
It is recommended to use an additional paper filter bag
(15) when vacuuming fine, dry dirt. Slide the paper filter
bag (15) over the suction opening in the stainless steel
container (7). The paper filter bag (15) is only suitable
for dry vacuuming. The paper filter bag (15) makes it
easier to dispose of the dust collected.
Installing the suction hose (fig. 8, 9)
Connect the suction hose (13) to the corresponding
port, depending on the desired use, on the wet and dry
vacuum.
Vacuuming:
Connect the suction hose (13) to the suction hose port
(8). To do so, slide the end of the suction hose (13)
into the suction hose port (8). Make sure the plug-in
fitting on the end of the suction hose (13) latches into
the recess on the suction hose connection (8). In the
end position, turn the suction hose (13) in a clockwise
direction.
Blowing:
Connect the suction hose (13) to the suction hose port
(11). Make sure the plug-in fitting on the end of the suc-
tion hose (13) latches into the recess on the connection
with blast function (11). In the end position, turn the
suction hose (13) in a clockwise direction.
Installing the plastic extension tubes (18), suction
hose (13) and floor nozzle (16+17) (fig. 10)
Assemble the plastic extension tubes (18) by pushing
them together. Connect the assembled plastic exten-
sion tubes with the bent end of the suction hose (13).
Fit the floor nozzle (16) or joint nozzle (17) to the other
end of the assembled plastic extension tubes.

8. Operation

Warning! Switch the device off if liquid or foam
emerges with the exhaust air during wet vacuum-
ing.
Switching on/off (fig. 1)
Press the on/off switch (9):
• Switch setting 0: Off
• Switch setting I: On
