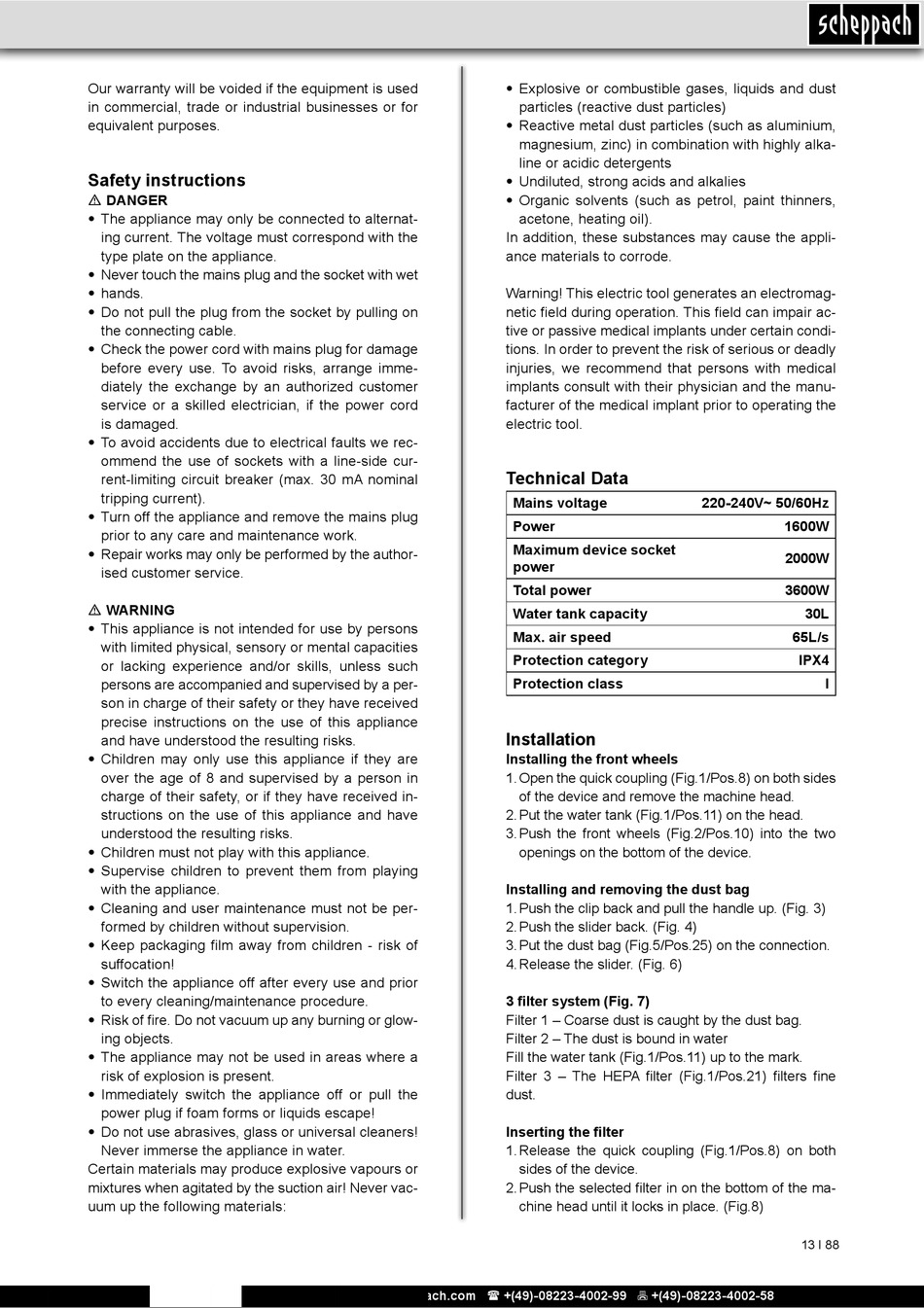

Safety Instructions; Technical Data; Installation - Scheppach ASP30 Originalbetriebsanleitung

Our warranty will be voided if the equipment is used
in commercial, trade or industrial businesses or for
equivalent purposes.

Safety instructions

m DANGER
• The appliance may only be connected to alternat-
ing current. The voltage must correspond with the
type plate on the appliance.
• Never touch the mains plug and the socket with wet
• hands.
• Do not pull the plug from the socket by pulling on
the connecting cable.
• Check the power cord with mains plug for damage
before every use. To avoid risks, arrange imme-
diately the exchange by an authorized customer
service or a skilled electrician, if the power cord
is damaged.
• To avoid accidents due to electrical faults we rec-
ommend the use of sockets with a line-side cur-
rent-limiting circuit breaker (max. 30 mA nominal
tripping current).
• Turn off the appliance and remove the mains plug
prior to any care and maintenance work.
• Repair works may only be performed by the author-
ised customer service.
m WARNING
• This appliance is not intended for use by persons
with limited physical, sensory or mental capacities
or lacking experience and/or skills, unless such
persons are accompanied and supervised by a per-
son in charge of their safety or they have received
precise instructions on the use of this appliance
and have understood the resulting risks.
• Children may only use this appliance if they are
over the age of 8 and supervised by a person in
charge of their safety, or if they have received in-
structions on the use of this appliance and have
understood the resulting risks.
• Children must not play with this appliance.
• Supervise children to prevent them from playing
with the appliance.
• Cleaning and user maintenance must not be per-
formed by children without supervision.
• Keep packaging film away from children - risk of
suffocation!
• Switch the appliance off after every use and prior
to every cleaning/maintenance procedure.
• Risk of fire. Do not vacuum up any burning or glow-
ing objects.
• The appliance may not be used in areas where a
risk of explosion is present.
• Immediately switch the appliance off or pull the
power plug if foam forms or liquids escape!
• Do not use abrasives, glass or universal cleaners!
Never immerse the appliance in water.
Certain materials may produce explosive vapours or
mixtures when agitated by the suction air! Never vac-
uum up the following materials:
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58  www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
• Explosive or combustible gases, liquids and dust
particles (reactive dust particles)
• Reactive metal dust particles (such as aluminium,
magnesium, zinc) in combination with highly alka-
line or acidic detergents
• Undiluted, strong acids and alkalies
• Organic solvents (such as petrol, paint thinners,
acetone, heating oil).
In addition, these substances may cause the appli-
ance materials to corrode.
Warning! This electric tool generates an electromag-
netic field during operation. This field can impair ac-
tive or passive medical implants under certain condi-
tions. In order to prevent the risk of serious or deadly
injuries, we recommend that persons with medical
implants consult with their physician and the manu-
facturer of the medical implant prior to operating the
electric tool.

Technical Data

Mains voltage
Power
Maximum device socket
power
Total power
Water tank capacity
Max. air speed
Protection category
Protection class

Installation

Installing the front wheels
1. Open the quick coupling (Fig.1/Pos.8) on both sides
of the device and remove the machine head.
2. Put the water tank (Fig.1/Pos.11) on the head.
3. Push the front wheels (Fig.2/Pos.10) into the two
openings on the bottom of the device.
Installing and removing the dust bag
1. Push the clip back and pull the handle up. (Fig. 3)
2. Push the slider back. (Fig. 4)
3. Put the dust bag (Fig.5/Pos.25) on the connection.
4. Release the slider. (Fig. 6)
3 filter system (Fig. 7)
Filter 1 – Coarse dust is caught by the dust bag.
Filter 2 – The dust is bound in water
Fill the water tank (Fig.1/Pos.11) up to the mark.
Filter 3 – The HEPA filter (Fig.1/Pos.21) filters fine
dust.
Inserting the filter
1. Release the quick coupling (Fig.1/Pos.8) on both
sides of the device.
2. Push the selected filter in on the bottom of the ma-
chine head until it locks in place. (Fig.8)
220-240V~ 50/60Hz
1600W
2000W
3600W
30L
65L/s
IPX4
I
13 І 88
