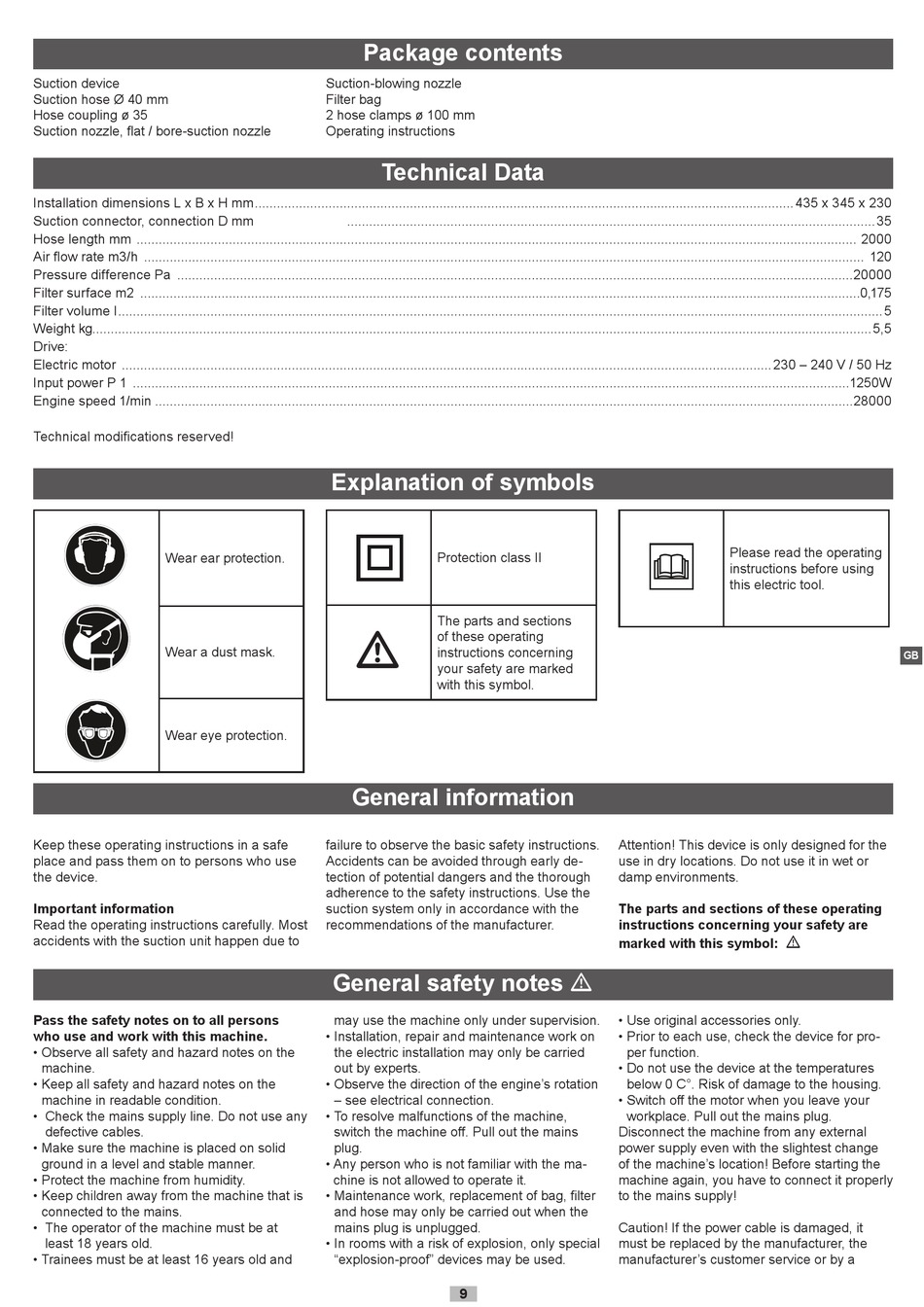

Package Contents; Technical Data; Explanation Of Symbols; General Information - Scheppach ha 200s Originalbetriebsanweisung

Suction device
Suction hose Ø 40 mm
Hose coupling ø 35
Suction nozzle, flat / bore-suction nozzle
Installation dimensions L x B x H mm .................................................................................................................................................. 435 x 345 x 230
Suction connector, connection D mm
Hose length mm ................................................................................................................................................................................................... 2000
Air flow rate m3/h ................................................................................................................................................................................................... 120
Pressure difference Pa .......................................................................................................................................................................................20000
Filter surface m2 ...................................................................................................................................................................................................0,175
Filter volume l ............................................................................................................................................................................................................... 5
Weight kg...................................................................................................................................................................................................................5,5
Drive:
Electric motor ................................................................................................................................................................................ 230 – 240 V / 50 Hz
Input power P 1 ..................................................................................................................................................................................................1250W
Engine speed 1/min .............................................................................................................................................................................................28000
Technical modifications reserved!
Wear ear protection.
Wear a dust mask.
Wear eye protection.
Keep these operating instructions in a safe
place and pass them on to persons who use
the device.
Important information
Read the operating instructions carefully. Most
accidents with the suction unit happen due to
Pass the safety notes on to all persons
who use and work with this machine.
• Observe all safety and hazard notes on the
machine.
• Keep all safety and hazard notes on the
machine in readable condition.
• Check the mains supply line. Do not use any
defective cables.
• Make sure the machine is placed on solid
ground in a level and stable manner.
• Protect the machine from humidity.
• Keep children away from the machine that is
connected to the mains.
• The operator of the machine must be at
least 18 years old.
• Trainees must be at least 16 years old and

Package contents

Suction-blowing nozzle
Filter bag
2 hose clamps ø 100 mm
Operating instructions

Technical Data

...............................................................................................................................................35

Explanation of symbols

Protection class II
The parts and sections
m
of these operating
instructions concerning
your safety are marked
with this symbol.

General information

failure to observe the basic safety instructions.
Accidents can be avoided through early de-
tection of potential dangers and the thorough
adherence to the safety instructions. Use the
suction system only in accordance with the
recommendations of the manufacturer.
General safety notes m
may use the machine only under supervision.
• Installation, repair and maintenance work on
the electric installation may only be carried
out by experts.
• Observe the direction of the engine's rotation
– see electrical connection.
• To resolve malfunctions of the machine,
switch the machine off. Pull out the mains
plug.
• Any person who is not familiar with the ma-
chine is not allowed to operate it.
• Maintenance work, replacement of bag, filter
and hose may only be carried out when the
mains plug is unplugged.
• In rooms with a risk of explosion, only special
"explosion-proof" devices may be used.
9
Please read the operating
instructions before using
this electric tool.
Attention! This device is only designed for the
use in dry locations. Do not use it in wet or
damp environments.
The parts and sections of these operating
instructions concerning your safety are
m
marked with this symbol:
• Use original accessories only.
• Prior to each use, check the device for pro-
per function.
• Do not use the device at the temperatures
below 0 C°. Risk of damage to the housing.
• Switch off the motor when you leave your
workplace. Pull out the mains plug.
Disconnect the machine from any external
power supply even with the slightest change
of the machine's location! Before starting the
machine again, you have to connect it properly
to the mains supply!
Caution! If the power cable is damaged, it
must be replaced by the manufacturer, the
manufacturer's customer service or by a
GB
