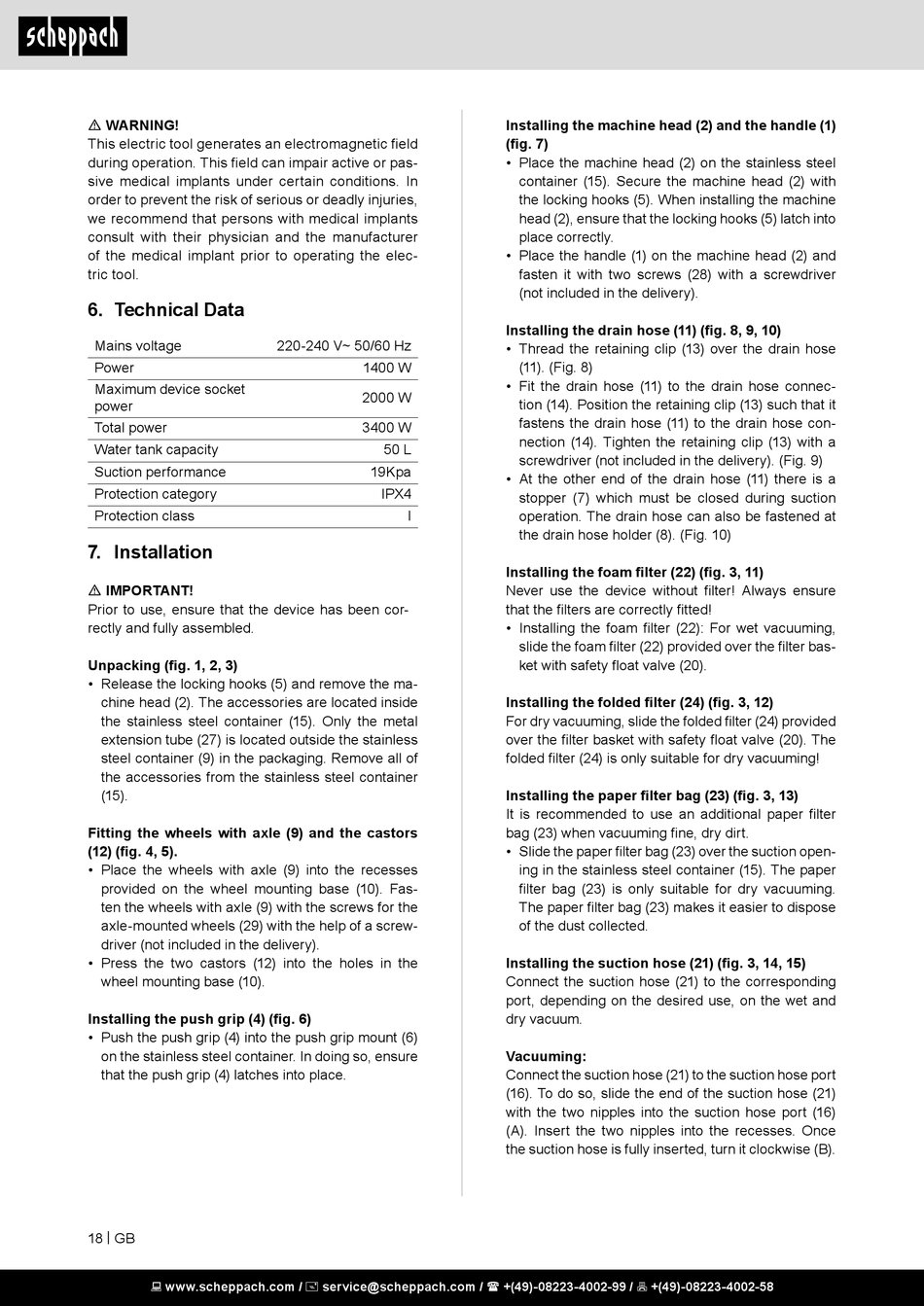

m WARNING!
This electric tool generates an electromagnetic field
during operation. This field can impair active or pas-
sive medical implants under certain conditions. In
order to prevent the risk of serious or deadly injuries,
we recommend that persons with medical implants
consult with their physician and the manufacturer
of the medical implant prior to operating the elec-
tric tool.

6. Technical Data

Mains voltage
Power
Maximum device socket
power
Total power
Water tank capacity
Suction performance
Protection category
Protection class

7. Installation

m IMPORTANT!
Prior to use, ensure that the device has been cor-
rectly and fully assembled.
Unpacking (fig. 1, 2, 3)
• Release the locking hooks (5) and remove the ma-
chine head (2). The accessories are located inside
the stainless steel container (15). Only the metal
extension tube (27) is located outside the stainless
steel container (9) in the packaging. Remove all of
the accessories from the stainless steel container
(15).
Fitting the wheels with axle (9) and the castors
(12) (fig. 4, 5).
• Place the wheels with axle (9) into the recesses
provided on the wheel mounting base (10). Fas-
ten the wheels with axle (9) with the screws for the
axle-mounted wheels (29) with the help of a screw-
driver (not included in the delivery).
• Press the two castors (12) into the holes in the
wheel mounting base (10).
Installing the push grip (4) (fig. 6)
• Push the push grip (4) into the push grip mount (6)
on the stainless steel container. In doing so, ensure
that the push grip (4) latches into place.
18 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
220-240 V~ 50/60 Hz
1400 W
2000 W
3400 W
50 L
19Kpa
IPX4
I
Installing the machine head (2) and the handle (1)
(fig. 7)
• Place the machine head (2) on the stainless steel
container (15). Secure the machine head (2) with
the locking hooks (5). When installing the machine
head (2), ensure that the locking hooks (5) latch into
place correctly.
• Place the handle (1) on the machine head (2) and
fasten it with two screws (28) with a screwdriver
(not included in the delivery).
Installing the drain hose (11) (fig. 8, 9, 10)
• Thread the retaining clip (13) over the drain hose
(11). (Fig. 8)
• Fit the drain hose (11) to the drain hose connec-
tion (14). Position the retaining clip (13) such that it
fastens the drain hose (11) to the drain hose con-
nection (14). Tighten the retaining clip (13) with a
screwdriver (not included in the delivery). (Fig. 9)
• At the other end of the drain hose (11) there is a
stopper (7) which must be closed during suction
operation. The drain hose can also be fastened at
the drain hose holder (8). (Fig. 10)
Installing the foam filter (22) (fig. 3, 11)
Never use the device without filter! Always ensure
that the filters are correctly fitted!
• Installing the foam filter (22): For wet vacuuming,
slide the foam filter (22) provided over the filter bas-
ket with safety float valve (20).
Installing the folded filter (24) (fig. 3, 12)
For dry vacuuming, slide the folded filter (24) provided
over the filter basket with safety float valve (20). The
folded filter (24) is only suitable for dry vacuuming!
Installing the paper filter bag (23) (fig. 3, 13)
It is recommended to use an additional paper filter
bag (23) when vacuuming fine, dry dirt.
• Slide the paper filter bag (23) over the suction open-
ing in the stainless steel container (15). The paper
filter bag (23) is only suitable for dry vacuuming.
The paper filter bag (23) makes it easier to dispose
of the dust collected.
Installing the suction hose (21) (fig. 3, 14, 15)
Connect the suction hose (21) to the corresponding
port, depending on the desired use, on the wet and
dry vacuum.
Vacuuming:
Connect the suction hose (21) to the suction hose port
(16). To do so, slide the end of the suction hose (21)
with the two nipples into the suction hose port (16)
(A). Insert the two nipples into the recesses. Once
the suction hose is fully inserted, turn it clockwise (B).
