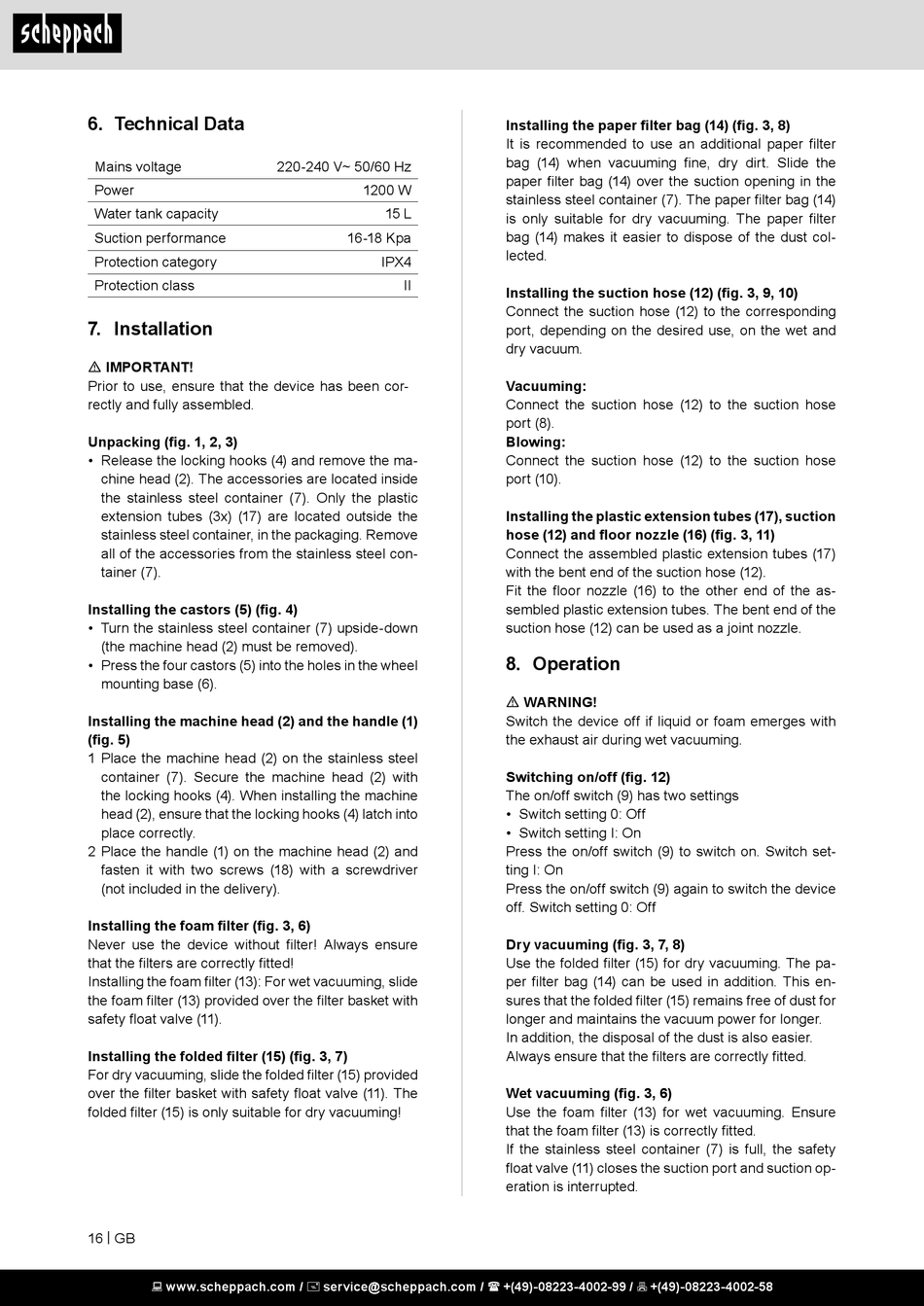

6. Technical Data

Mains voltage
Power
Water tank capacity
Suction performance
Protection category
Protection class

7. Installation

m IMPORTANT!
Prior to use, ensure that the device has been cor-
rectly and fully assembled.
Unpacking (fig. 1, 2, 3)
• Release the locking hooks (4) and remove the ma-
chine head (2). The accessories are located inside
the stainless steel container (7). Only the plastic
extension tubes (3x) (17) are located outside the
stainless steel container, in the packaging. Remove
all of the accessories from the stainless steel con-
tainer (7).
Installing the castors (5) (fig. 4)
• Turn the stainless steel container (7) upside-down
(the machine head (2) must be removed).
• Press the four castors (5) into the holes in the wheel
mounting base (6).
Installing the machine head (2) and the handle (1)
(fig. 5)
1 Place the machine head (2) on the stainless steel
container (7). Secure the machine head (2) with
the locking hooks (4). When installing the machine
head (2), ensure that the locking hooks (4) latch into
place correctly.
2 Place the handle (1) on the machine head (2) and
fasten it with two screws (18) with a screwdriver
(not included in the delivery).
Installing the foam filter (fig. 3, 6)
Never use the device without filter! Always ensure
that the filters are correctly fitted!
Installing the foam filter (13): For wet vacuuming, slide
the foam filter (13) provided over the filter basket with
safety float valve (11).
Installing the folded filter (15) (fig. 3, 7)
For dry vacuuming, slide the folded filter (15) provided
over the filter basket with safety float valve (11). The
folded filter (15) is only suitable for dry vacuuming!
16 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
220-240 V~ 50/60 Hz
1200 W
15 L
16-18 Kpa
IPX4
II
Installing the paper filter bag (14) (fig. 3, 8)
It is recommended to use an additional paper filter
bag (14) when vacuuming fine, dry dirt. Slide the
paper filter bag (14) over the suction opening in the
stainless steel container (7). The paper filter bag (14)
is only suitable for dry vacuuming. The paper filter
bag (14) makes it easier to dispose of the dust col-
lected.
Installing the suction hose (12) (fig. 3, 9, 10)
Connect the suction hose (12) to the corresponding
port, depending on the desired use, on the wet and
dry vacuum.
Vacuuming:
Connect the suction hose (12) to the suction hose
port (8).
Blowing:
Connect the suction hose (12) to the suction hose
port (10).
Installing the plastic extension tubes (17), suction
hose (12) and floor nozzle (16) (fig. 3, 11)
Connect the assembled plastic extension tubes (17)
with the bent end of the suction hose (12).
Fit the floor nozzle (16) to the other end of the as-
sembled plastic extension tubes. The bent end of the
suction hose (12) can be used as a joint nozzle.

8. Operation

m WARNING!
Switch the device off if liquid or foam emerges with
the exhaust air during wet vacuuming.
Switching on/off (fig. 12)
The on/off switch (9) has two settings
• Switch setting 0: Off
• Switch setting I: On
Press the on/off switch (9) to switch on. Switch set-
ting I: On
Press the on/off switch (9) again to switch the device
off. Switch setting 0: Off
Dry vacuuming (fig. 3, 7, 8)
Use the folded filter (15) for dry vacuuming. The pa-
per filter bag (14) can be used in addition. This en-
sures that the folded filter (15) remains free of dust for
longer and maintains the vacuum power for longer.
In addition, the disposal of the dust is also easier.
Always ensure that the filters are correctly fitted.
Wet vacuuming (fig. 3, 6)
Use the foam filter (13) for wet vacuuming. Ensure
that the foam filter (13) is correctly fitted.
If the stainless steel container (7) is full, the safety
float valve (11) closes the suction port and suction op-
eration is interrupted.
