DMX512 CONNECTION

A DMX512 data link is required in order to control the device via DMX. The device provides 3-pin XLR
connectors for DMX connection.

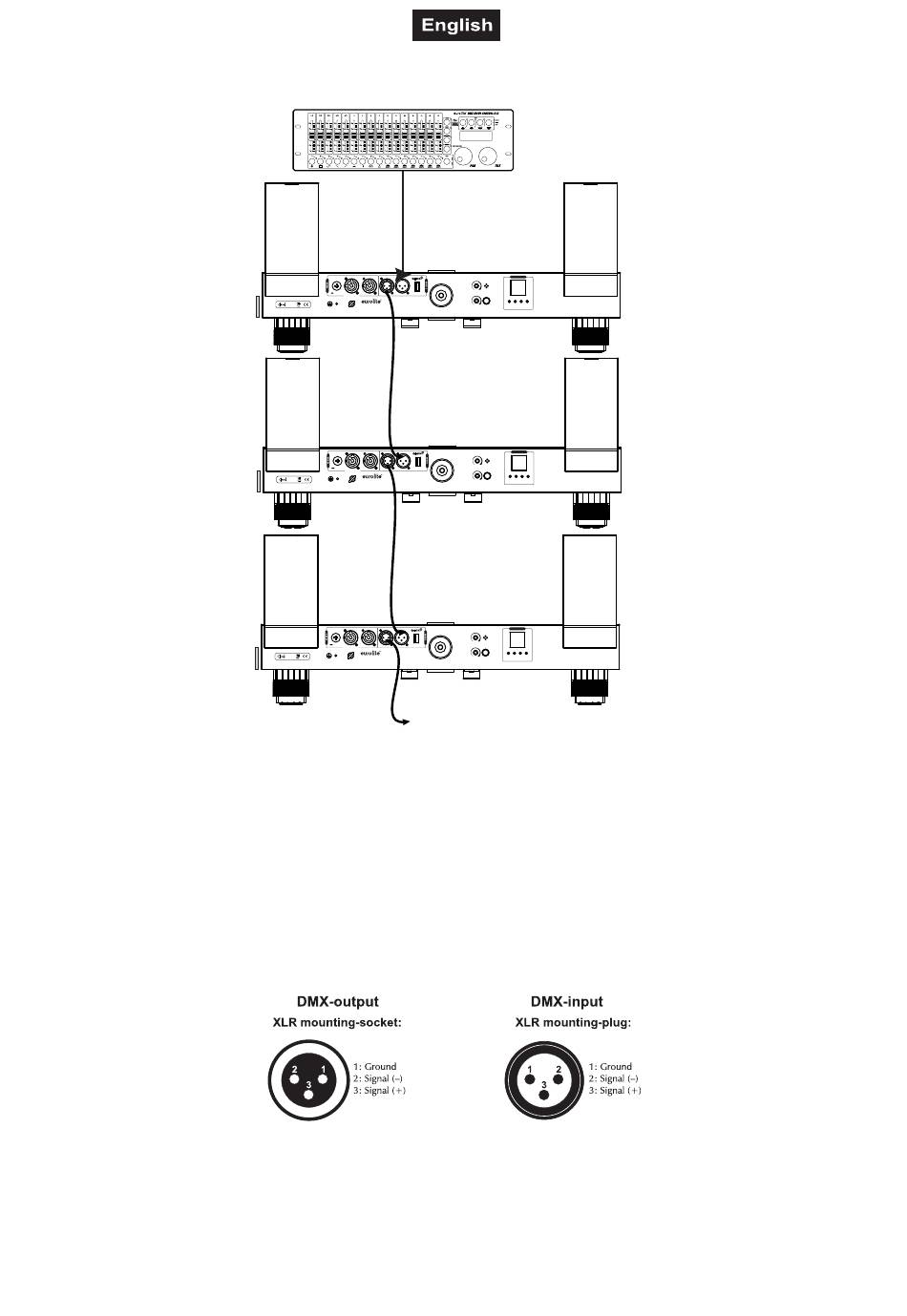

1 Connect the output of your DMX controller to the DMX input DMX IN of the device with a DMX cable.
2 Connect the DMX output DMX OUT of the device to the DMX input of the next unit in the chain. Always
connect one output to the input of the next unit until all units are connected.
3 At the last unit, the DMX cable has to be terminated. Plug the terminator with a 120 Ω resistor between
Signal (–) and Signal (+) in the DMX output of the last unit.
4 If the cable length exceeds 300 m or the number of DMX devices is greater than 32, it is recommended
to insert a DMX level amplifier to ensure proper data transmission.
XLR connection:
DMX Controller
IN OUT OUT IN
T 3.15 A/250V
100-240V 50/60Hz ~
No. 51786200 EAN 4026397708127 ∙
SAFETY
T =45°C
a
T =65°C LED Twin Scan Bar
c 2 1 5W
Steinigke Showtechnic GmbH Andreas-Bauer-Str. 5 ·
97297 Waldbüttelbrunn Germa ny · www.steini ke.de g EYELET No. 51786200 EAN 4026397708127 ∙
IN OUT OUT IN
T 3.15 A/250V
100-240V 50/60Hz ~
No. 51786200 EAN 4026397708127 ∙
SAFETY
T =45°C a
T =65°C LED Twin Scan Bar
c 2 1 5W
Steinigke Showtechnic GmbH Andreas-Bauer-Str. 5 ·
97297 Waldbüttelbrunn Germa ny www.steini ke.de g EYELET No. 51786200 EAN 4026397708127
· ∙
IN OUT OUT IN
T 3.15 A/250V
100-240V 50/60Hz ~
No. 51786200 EAN 4026397708127 ∙
SAFETY
T =45°C
T =65°C a
c 2 1 5W LED Twin Scan Bar
Steinigke Showtechnic GmbH Andreas-Bauer-Str. 5 ·
97297 Waldbüttelbrunn Germa ny · www.steini ke.de g EYELET No. 51786200 EAN 4026397708127 ∙
30/44
Program
Chase32 Step100
Device 1
Start Address 1
MICROPHONE CONTROL
SENSITIVITY
MIC
BRIGHTNESS
IR
MENU UP DOWN ENTER
Device 2
Start Address 15
CONTROL
MICROPHONE
SENSITIVITY
MIC
BRIGHTNESS
IR
MENU UP DOWN ENTER
Device 3
Start Address 29
MICROPHONE CONTROL
SENSITIVITY
MIC
BRIGHTNESS
IR
MENU UP DOWN ENTER
