SYSTEM INSTALLATION
CONNECT TO THE NMEA2000® NETWORK
Connect the sensor and the LinkUp gateway with the 3-pin connector
(Hirschmann 3way 1.2 SealStar FA Connector).

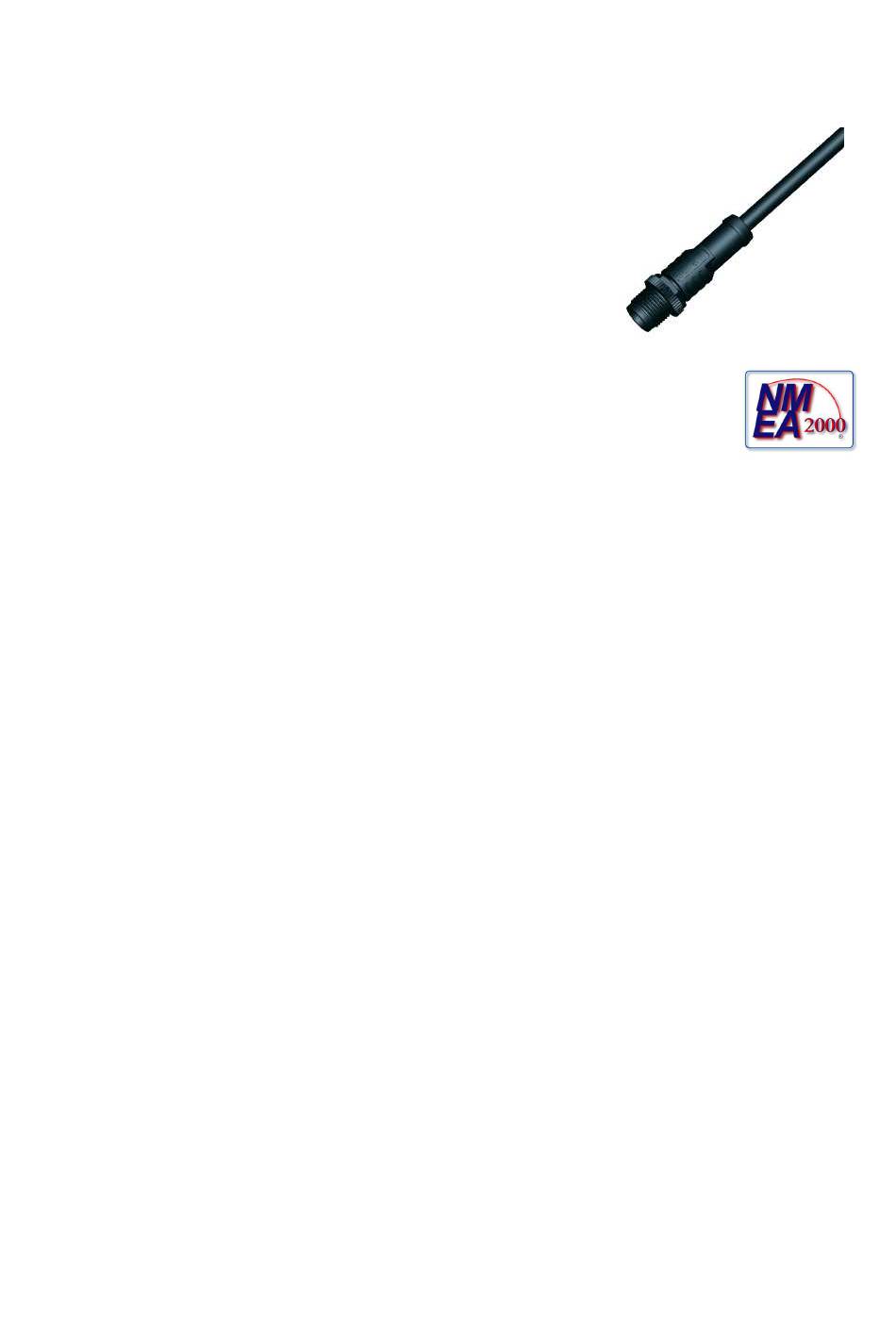

Now interface the LinkUp gateway to the NMEA 2000® backbone
through the dedicated plug.
Please ensure to tighten the M12 connector by screwing it onto its
counterpart, so to preserve the water tightness.
A drop cable is not needed unless the total length of the LinkUp
device is not enough to reach the NMEA 2000® backbone. In this
case it is possible to extend the total length by using one of the
accessory drop cables.
Please note that NMEA 2000® does not allow drop cables longer
than 6 meters.
Refer to the NMEA 2000® standard for a proper network design.
If power from the NMEA 2000® network is received, the green LED
on the LinkUp housing will start flashing (see "LED notifications").
