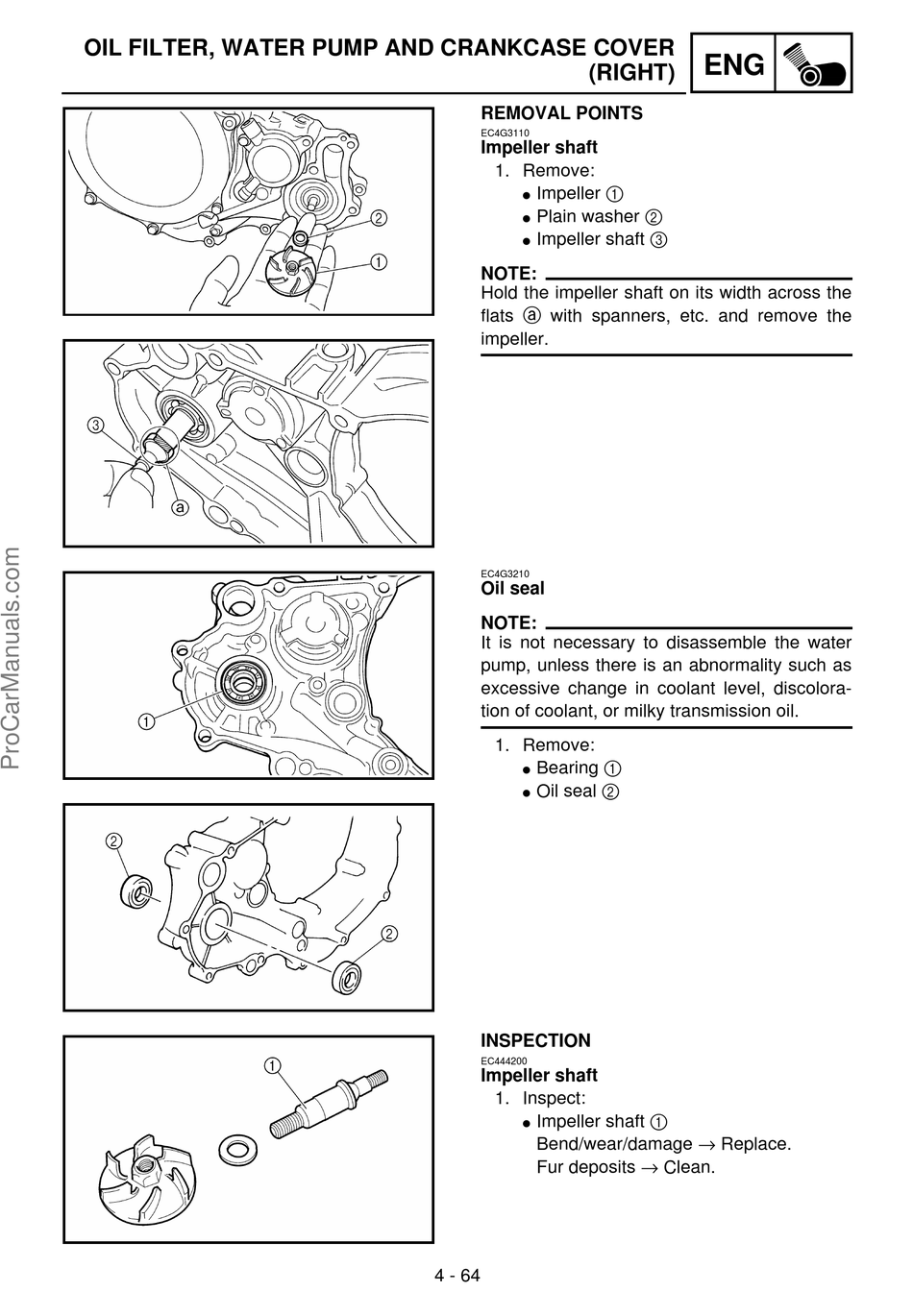

OIL FILTER, WATER PUMP AND CRANKCASE COVER
(RIGHT)
REMOVAL POINTS
EC4G3110
Impeller shaft
1. Remove:
Impeller 1
Plain washer 2
Impeller shaft 3
NOTE:
Hold the impeller shaft on its width across the
flats a with spanners, etc. and remove the
impeller.
EC4G3210
Oil seal
NOTE:
It is not necessary to disassemble the water
pump, unless there is an abnormality such as
excessive change in coolant level, discolora-
tion of coolant, or milky transmission oil.
1. Remove:
Bearing 1
Oil seal 2
INSPECTION
EC444200
Impeller shaft
1. Inspect:
Impeller shaft 1
Bend/wear/damage → Replace.
Fur deposits → Clean.
4 - 64
ENG
