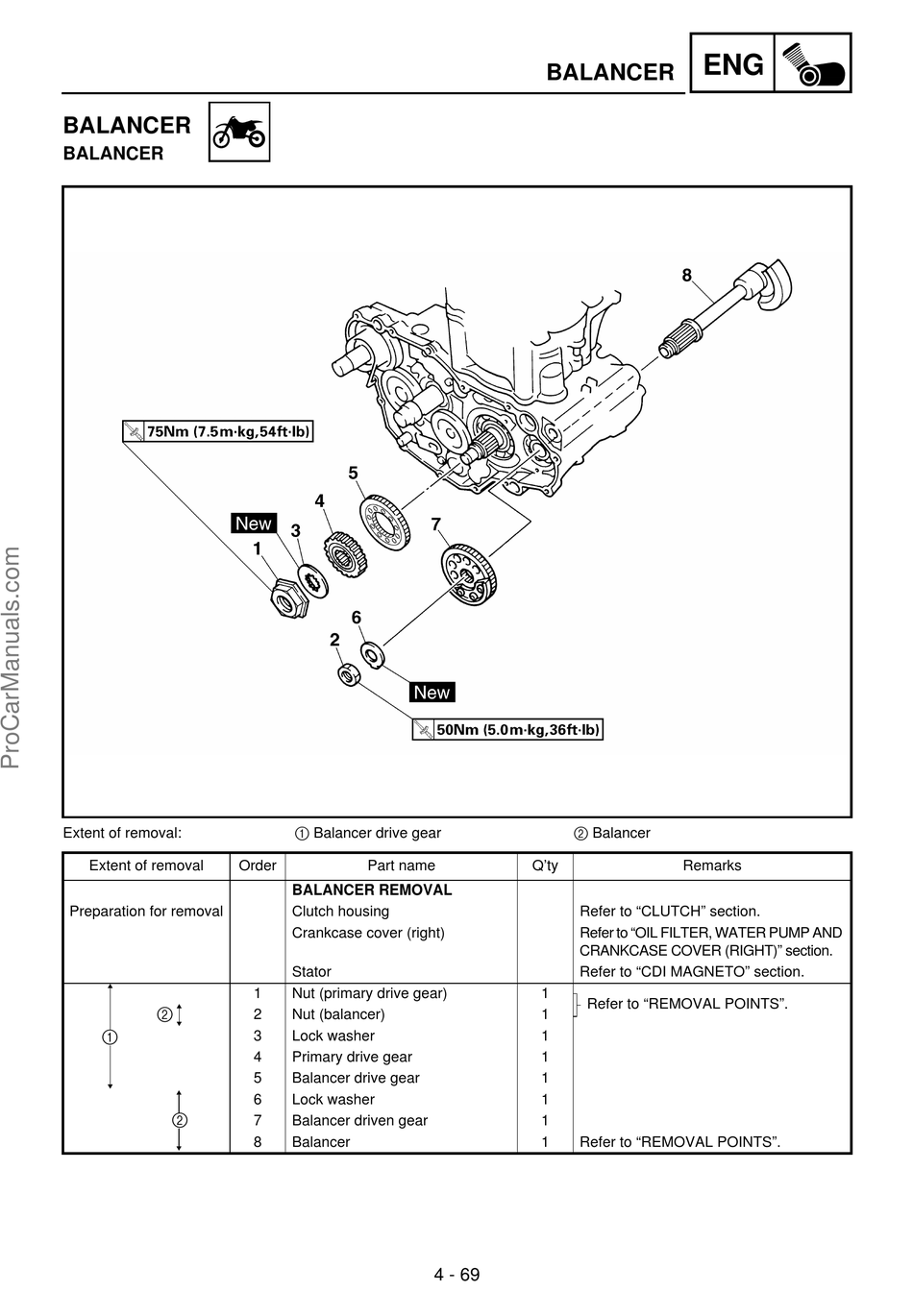

BALANCER
BALANCER
Extent of removal:
Extent of removal
Preparation for removal
2
1
2
1 Balancer drive gear
Order
Part name
BALANCER REMOVAL
Clutch housing
Crankcase cover (right)
Stator
1
Nut (primary drive gear)
2
Nut (balancer)
3
Lock washer
4
Primary drive gear
5
Balancer drive gear
6
Lock washer
7
Balancer driven gear
8
Balancer
BALANCER
2 Balancer
Q'ty
Refer to "CLUTCH" section.
Refer to "OIL FILTER, WATER PUMP AND
CRANKCASE COVER (RIGHT)" section.
Refer to "CDI MAGNETO" section.
1
Refer to "REMOVAL POINTS".
1
1
1
1
1
1
1
Refer to "REMOVAL POINTS".
4 - 69
ENG
Remarks
