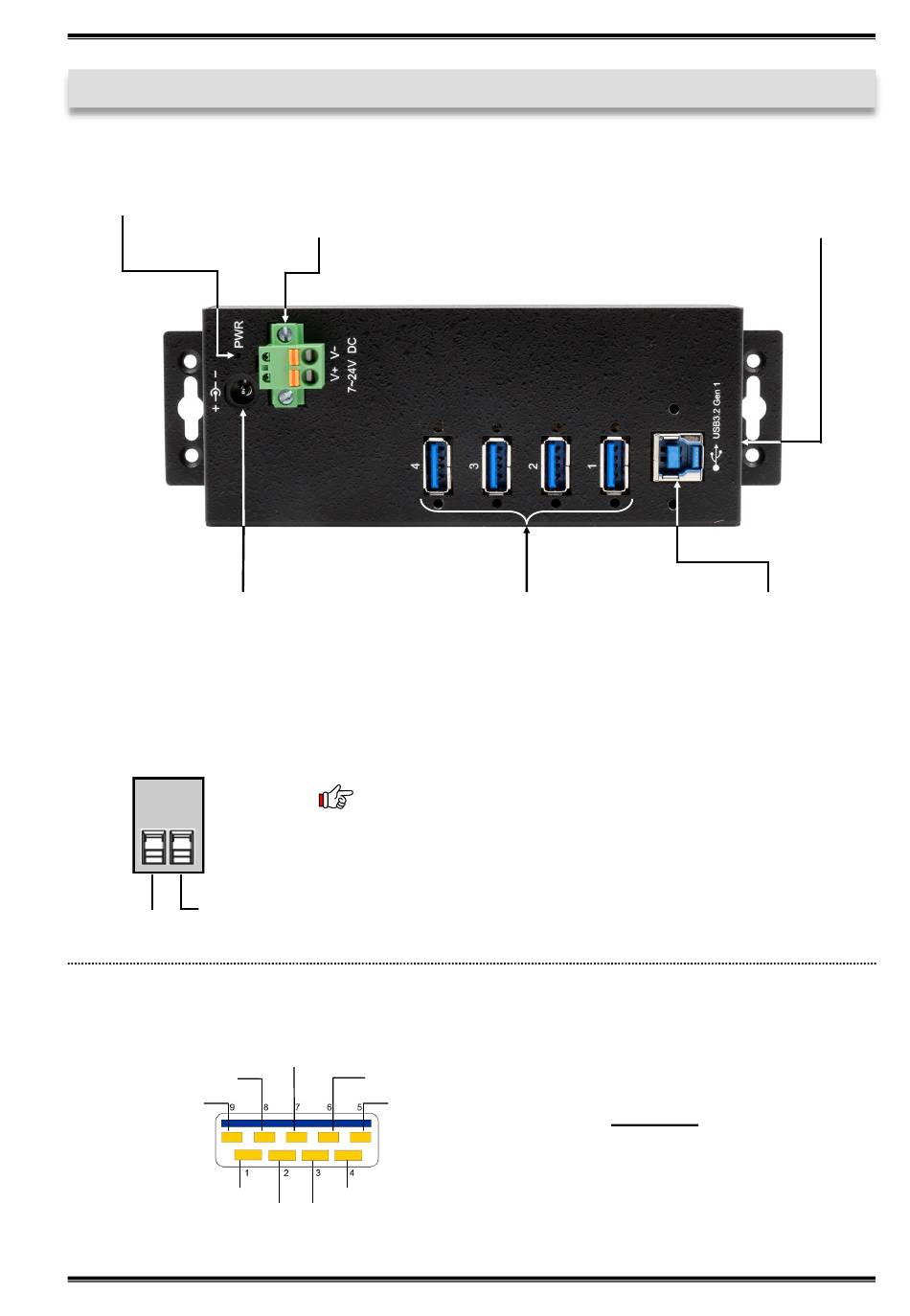

3. Layout & Connections

3.1 Layout

Power LED
optional Power Supply
7-24V DC-Connector for
optional Power Supply

3.2 Connections

+7V to 24V T-Block:
GND (Ground)
+7V - 24V
USB 3.2 Gen 1 A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
© Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved
7-24V T-Block for
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
4x USB 3.2 Gen 1
Downstream A-Port
Attention!
Never plug in with force
or in wrong direction.
11
English
Reset Button
1x USB 3.2 Gen 1
Upstream B-Port
