EX-1178
3. Layout, Connections & Jumper Settings

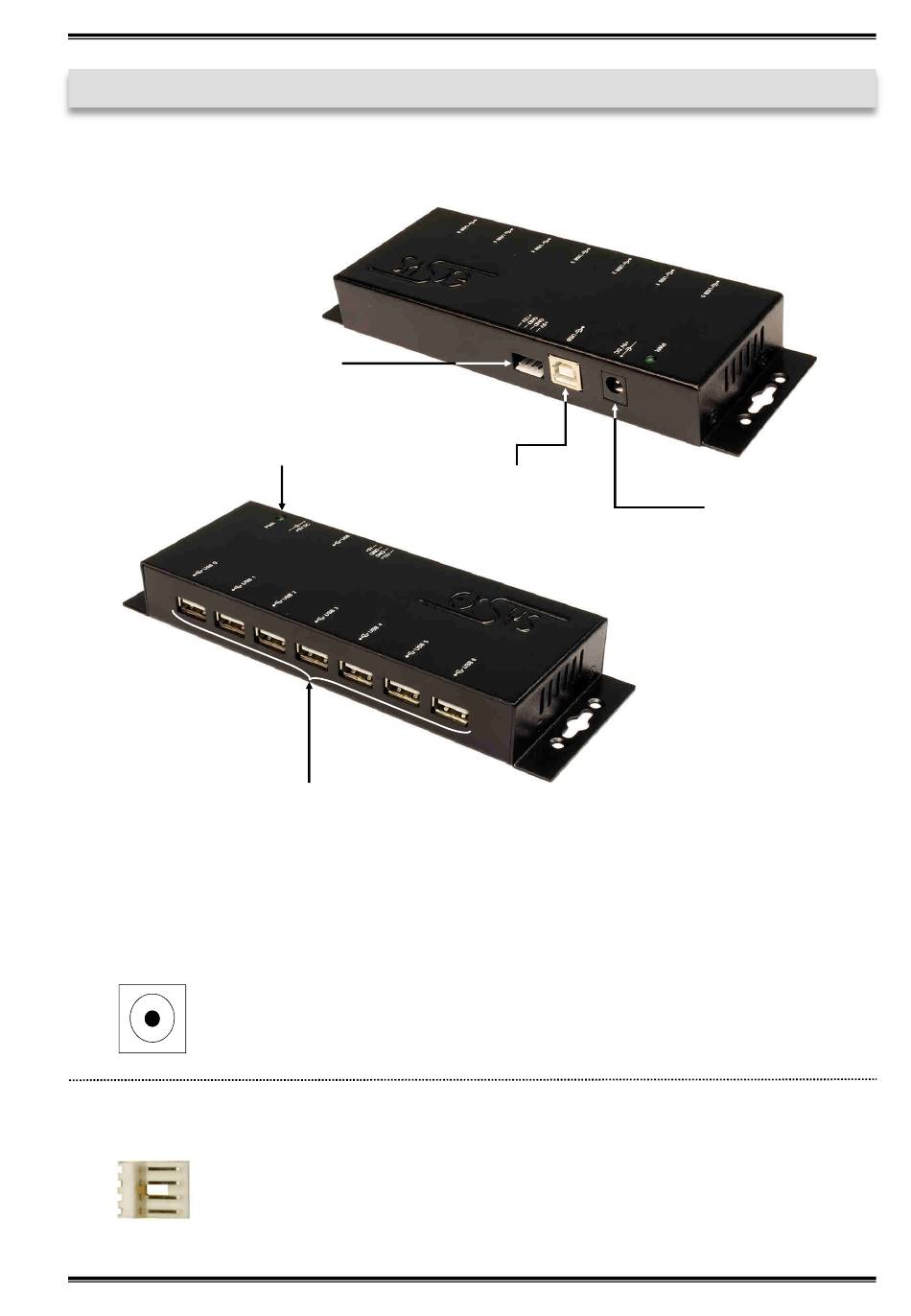

3.1 Layout

4 Pin Floppy Connector
Power LED
Downstream A-Port

3.2 Connections

5V Connector:
4 Pin Floppy Connector:
1 +5V
2 GND
3 GND
4 +12V
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
7x USB 2.0
ATTENTION!!!
Use only with Power Supply which is included in delivery!
Please pay attention to the correct polarity! The 12V Pin isn't used!
Never connect or release the plug while the PC power is on!
1x USB 2.0
Upstream B-Port
9
English
5V Connector
for included external
Power Supply
