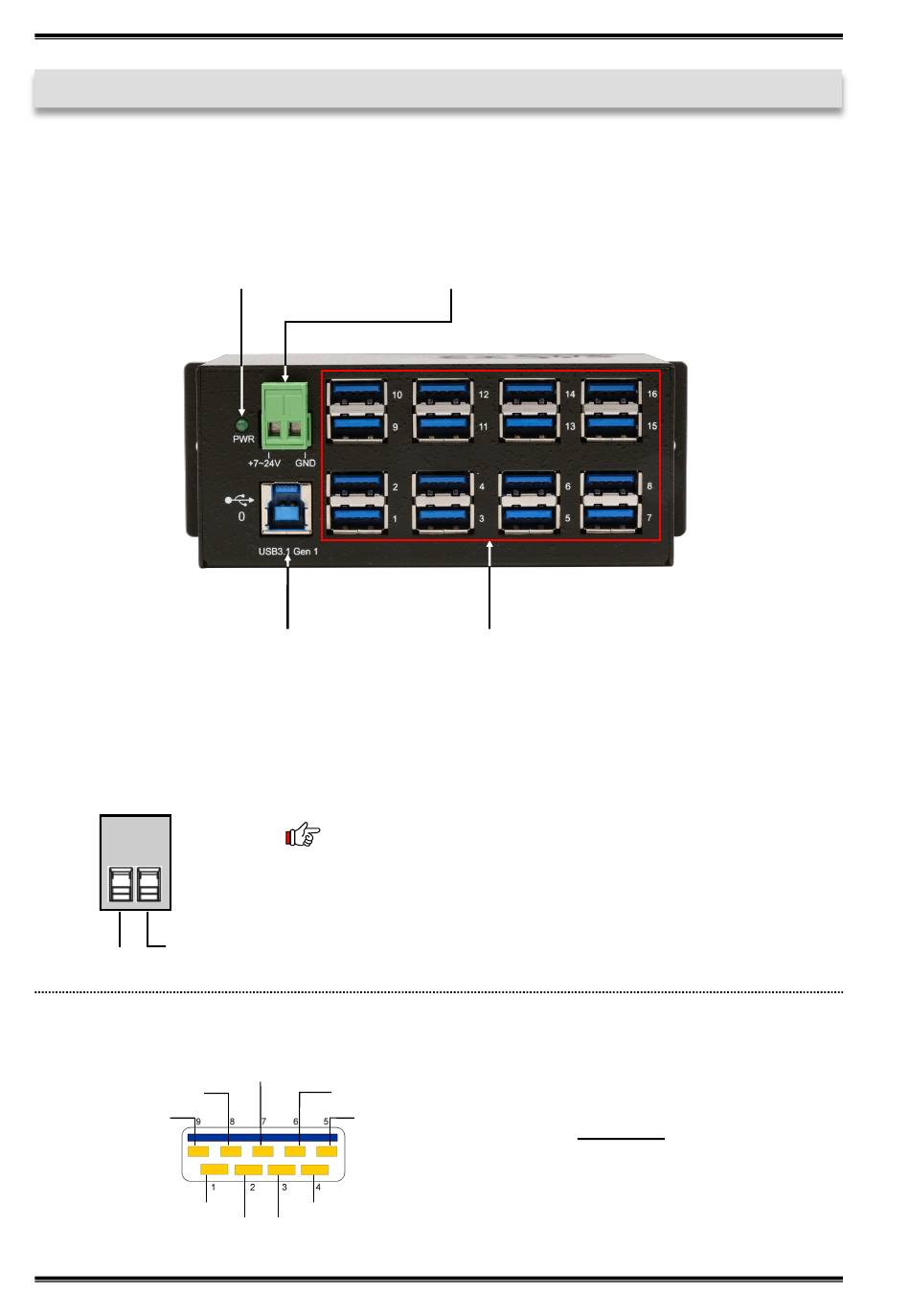

3. Layout, Connections & Jumper Settings

3.1 Layout

Front Side:
Power LED

3.2 Connections

+7V to +24V T-Block:
GND (Ground)
+7V - 24V
USB 3.2 Gen 1 A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
© Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved
7-24V T-Block for
optional Power Supply
1x USB 3.2 Gen 1
Upstream B-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
16x USB 3.2 Gen 1
Downstream A-Port
Attention!
Never plug in with force
or in wrong direction.
10
EX-1113HMS
