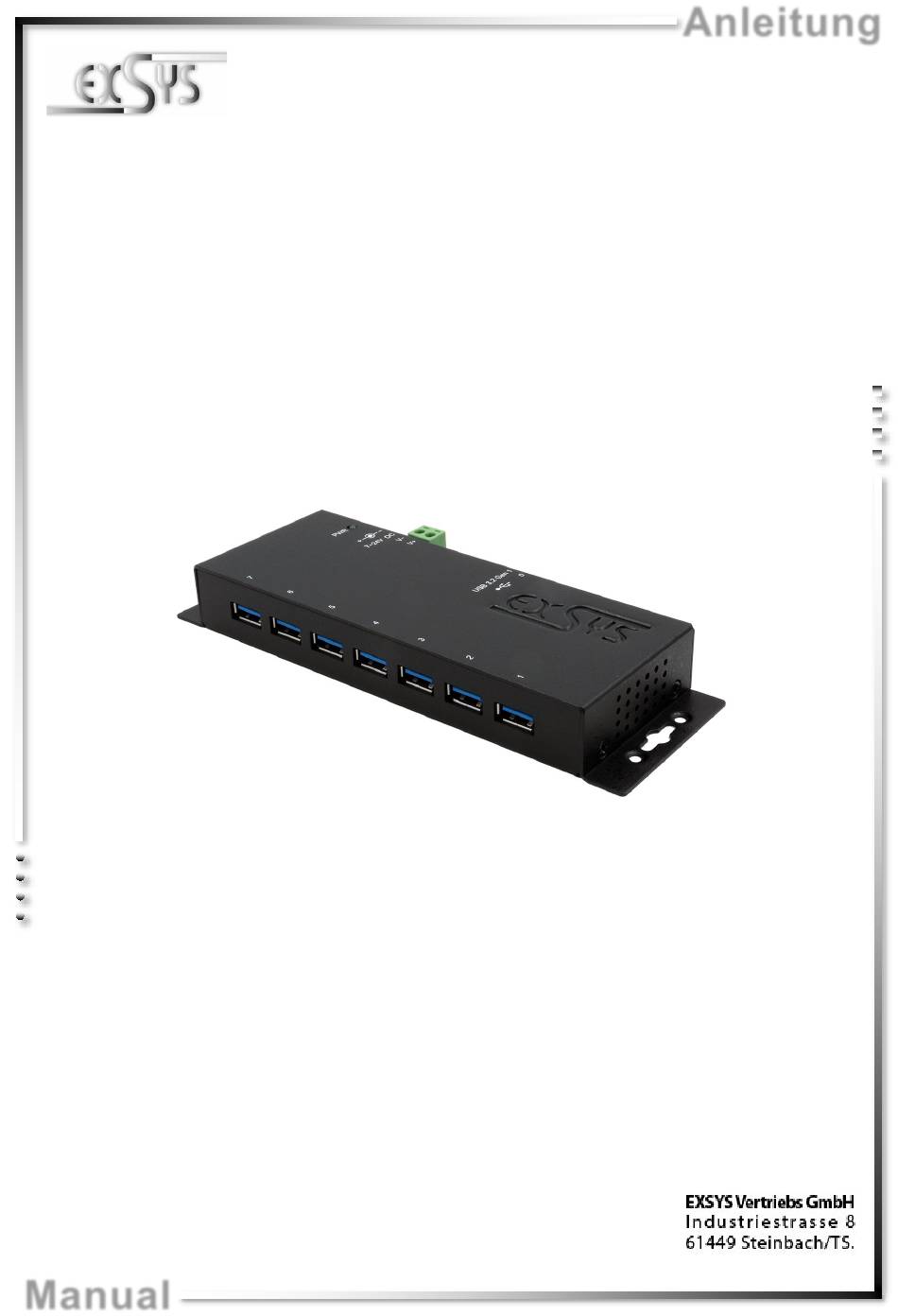

- Seite 1 Anleitung EX-1188HMS-3 7 Port USB 3.2 Gen 1 Metall HUB mit 15KV ESD Überspannungsschutz 7 Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection Vers. 1.0 / 07.10.21 Manual...
-
Seite 2: Inhaltsverzeichnis
Layout, Connections & Jumper Settings ··························································· 10-12 Layout ·······················································································································10 Connections ·········································································································· 10-11 Jumper Settings ··········································································································12 Hardware Installation ························································································· 13 Driver Installation ······························································································ 13 Cleaning ········································································································· 13 Technical Information ························································································ 14 Technical Drawing ···························································································· 14 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Seite 3: Beschreibung
1. Beschreibung Der EX-1188HMS-3 ist ein USB 3.2 Gen 1 Metall HUB für bis zu 7 Endgeräte. Der Hub ist mit 7 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB An- schlüsse von 1.1 bis 3.2. -
Seite 4: Aufbau, Anschlüsse & Jumper Einstellungen
Lieferumfang enthaltenem Netzteil 3.2 Anschlüsse +7V - 24V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 24V © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Seite 5: Anschlüsse
StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. USB 3.2 Gen 1 B-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Achtung! Stecker niemals umgekehrt oder mit VBus Gewalt einstecken. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Seite 6: Jumper Einstellungen
Der EX-1188HMS-3 wird mit der Einstellung Bus-Power ausgeliefert. Sie haben aber die Mög- lichkeit den EX-1188HMS-3 auf der Datenleitung zum PC sprich die USB B-Buchse stromlos zu machen. Dafür müssen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öffnen. -
Seite 7: Hardware Installation
4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Anschluss des EX-1188HMS-3 geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Verbinden Sie das mitgelieferte USB 3.2 Gen 1 Kabel mit dem USB 3.2 Gen 1 Upstream B- Anschluss des Hubs. -
Seite 8: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +24 Volt Abmessung: 178,50 x 67,90 x 23,00 mm Gewicht: 815g 8. Technische Zeichnung © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Seite 9: Description

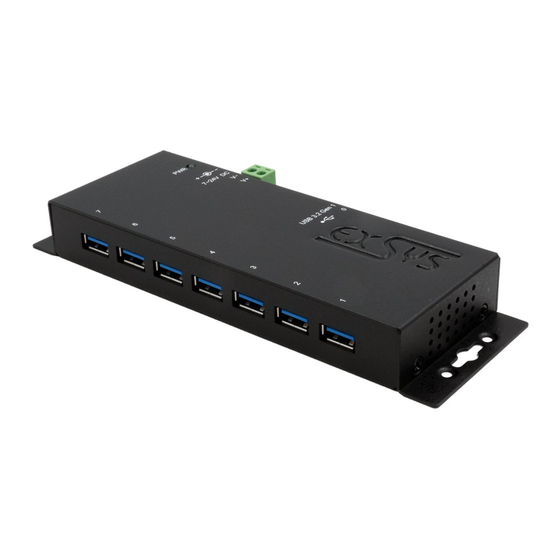

English 1. Description The EX-1188HMS-3 is a plug & play high-speed USB 3.2 Gen 1 metal hub for 7 USB devices. The EX-1188HMS-3 provides 7 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.2. By supplying power via the DC connector or the Terminal Block, 1.5A can be provided on each port or 2.3A on two ports. -
Seite 10: Layout, Connections & Jumper Settings
Power Supply for included external Power Supply 3.2 Connections +7V - 24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Seite 11: Connections
Never plug in with force or in wrong direction. USB 3.2 Gen 1 B-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force VBus or in wrong direction. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Seite 12: Jumper Settings
EX-1188HMS-3 3. Layout, Connections & Jumper Settings 3.3 Jumper Settings The EX-1188HMS-3 will be delivered with the setting Bus-Power. But you have the possibility to cut the power at the data line. For this you open the case with the four screws on both sides. -
Seite 13: Hardware Installation
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Seite 14: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +24 Volt Size: 178,50 x 67,90 x 23,00 mm Weight: 815g 8. Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
