3. Layout & Connections
3.2 Connections

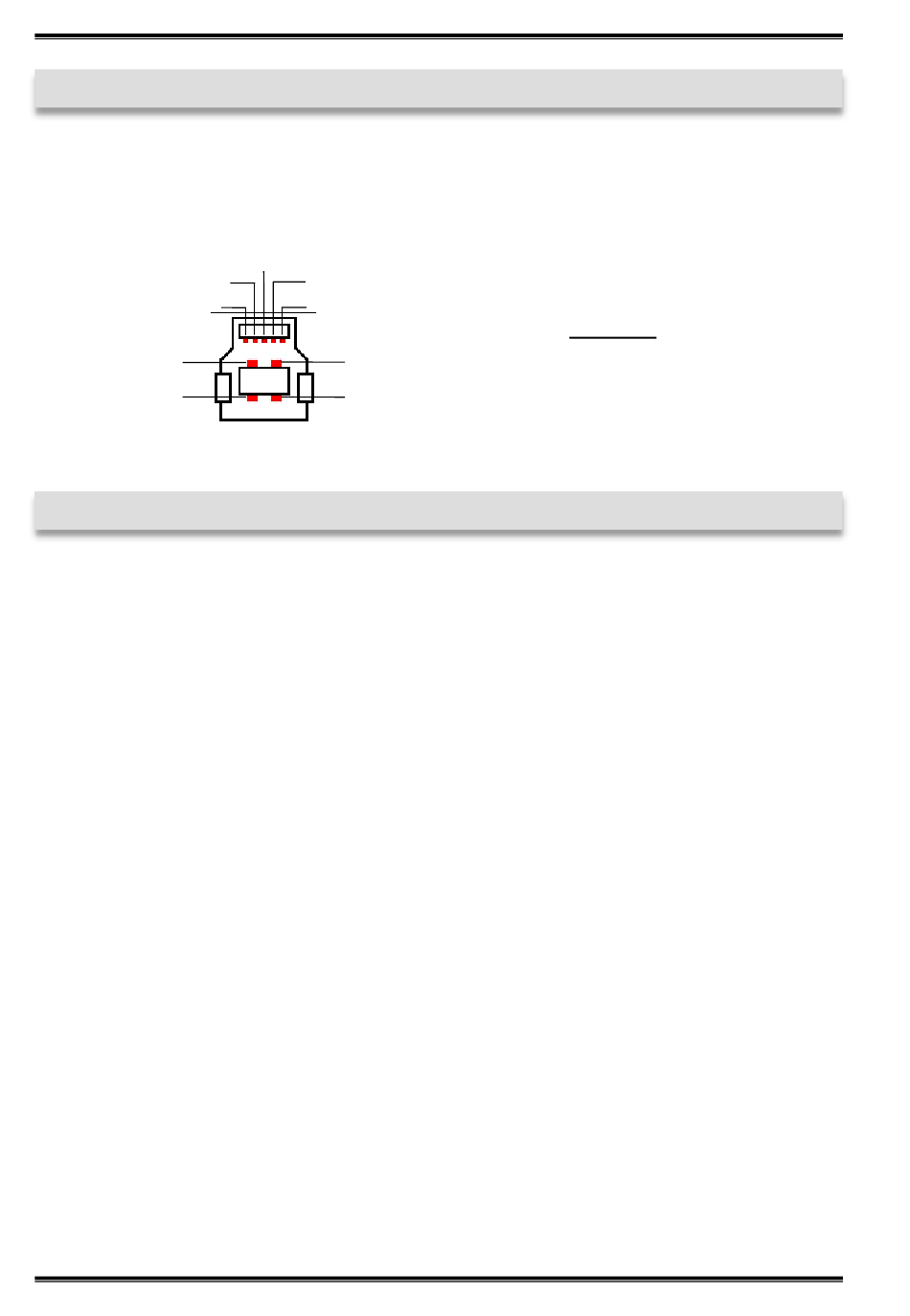

USB 3.2 Gen 1 B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

4. Hardware Installation

Because there are large differences between PC's, we can give you only a general installation
guide. Please refer your computer's reference manual whenever in doubt.
1. Install the EX-1505HMVS to the wall or to a DIN-Rail if required
2. Connect the USB cable to the USB B-Port at the Hub.
3. Connect the optional power supply into the Terminal Block at the Hub.
4. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC.
© Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
Attention!
Never plug in with force
or in wrong direction.
