Inhaltszusammenfassung für Exsys EX-1182VIS-2

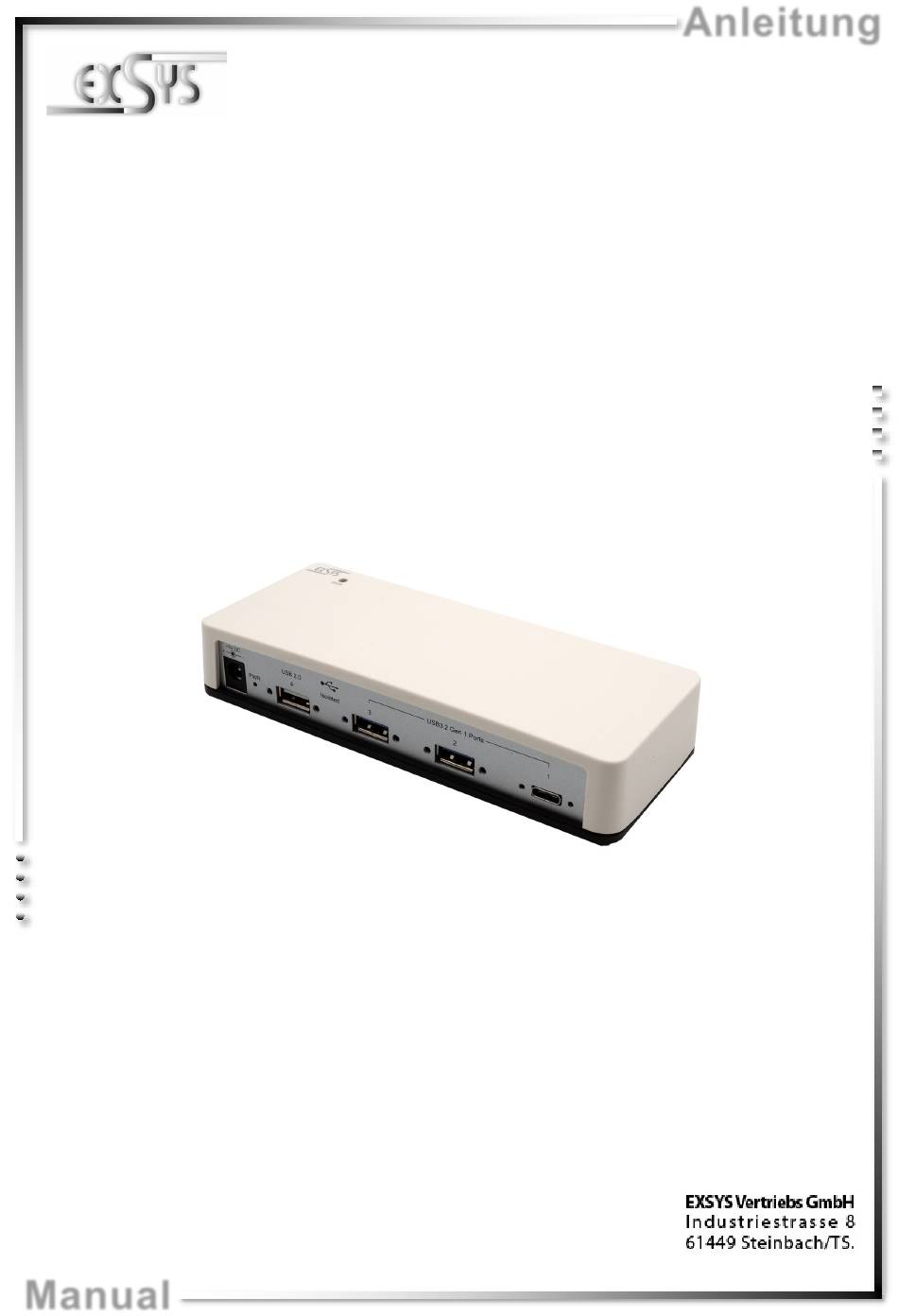

- Seite 1 Anleitung EX-1182VIS-2 USB 3.2 Gen 1 Hub mit 4 Port‘s, 15KV ESD Überspannungsschutz & 3KV Optische Isolation USB 3.2 Gen 1 Hub with 4 Port‘s, 15KV ESD Surge Protection & 3KV Optical Isolation Vers. 1.0 / 04.11.21 Manual...
-
Seite 2: Inhaltsverzeichnis
Extent of Delivery ······························································································· 8 Layout & Connectors ······················································································ 9-10 Layout ························································································································ 9 Connectors ·············································································································· 9-10 Hardware Installation ··························································································11 Driver Installation ·······························································································11 Cleaning ·········································································································11 Technical Information ·························································································12 Technical Drawing ·····························································································12 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Seite 3: Beschreibung
1. Beschreibung Der EX-1182VIS-2 ist ein USB 3.2 Gen 1 HUB für bis zu 4 Endgeräte. Der Hub ist mit zwei USB 3.2 Gen 1 A-Ports, einem USB 3.2 Gen 1 C-Port und einem USB 2.0 A-Port für Endgeräte und einem USB 3.2 Gen 1 B-Port für den Anschluss an den PC ausgestattet. -
Seite 4: Aufbau & Anschlüsse
1x USB 3.2 Gen 1 Downstream A-Buchse Downstream A-Buchse Downstream C-Buchse Rückseite: 1x USB 3.2 Gen 1 Upstream B-Buchse 3.2 Anschlüsse 5V Buchse: ACHTUNG!!! Nur zur Verwendung mit im Lieferumfang enthaltenem Netzteil! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... - Seite 5 USB 3.2 Gen 1 B-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Achtung! Stecker niemals umgekehrt oder mit VBus Gewalt einstecken. USB 2.0 A-Buchse: USB 2.0 A-Buchse Signal Signal DATA+ DATA- © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Seite 6: Hardware Installation
4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Anschluss der EX-1182VIS-2 geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie die EX-1182VIS-2 mit dem mitgelieferten DIN-Rail Kit auf einer Tragschiene oder mit der Wandmontagehalterung an eine Wand. -
Seite 7: Technische Daten
Betriebstemperatur: 0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +5 Volt Abmessung: 153,25 x 64,25 x 31,00 mm Gewicht: 675g 8. Technische Zeichnung © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Seite 8: Description
1. Description The EX-1182VIS-2 is a plug & play high-speed USB 3.2 Gen 1 hub for 4 USB devices. The EX- 1182VIS-2 is equipped with two USB 3.2 Gen 1 A-Ports, one USB 3.2 Gen 1 C-Port and one USB 2.0 A-Port for devices and one USB 3.2 Gen 1 B-Port for connection to the PC. -
Seite 9: Layout & Connectors
1x USB 3.2 Gen 1 Downstream A-Port Downstream A-Port Downstream C-Port Back: 1x USB 3.2 Gen 1 Upstream B-Port 3.2 Connectors 5V Connector: ATTENTION!!! Use only with Power Supply which is included in delivery! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... - Seite 10 USB 3.2 Gen 1 B-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force VBus or in wrong direction. USB 2.0 A-Port: USB 2.0 A-Port Signal Signal DATA+ DATA- © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Seite 11: Hardware Installation
1. Install the EX-1182VIS-2 on a DIN-Rail using the supplied DIN-Rail kit or on a wall using the wall mounting kit. 2. Now connect the USB cable to the USB 3.2 Gen 1 B-Port at the Hub. -
Seite 12: Technical Information
32° to 131° Fahrenheit Storage Temperature: -40° to 185° Fahrenheit Rel. Humidity: 5% to 95% Power: +5 Volt Size: 153,25 x 64,25 x 31,00 mm Weight: 675g 8. Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
