Installation
1. Seal the process connection (TMR31) with Teflon tape before you screw in the device.
2. Ensure that the hygienic process connections (TMR35) and the connection adapters can
withstand the maximum process pressure.
3. Install the device before the process application is started.

3.2.3 Installation in hygienic processes

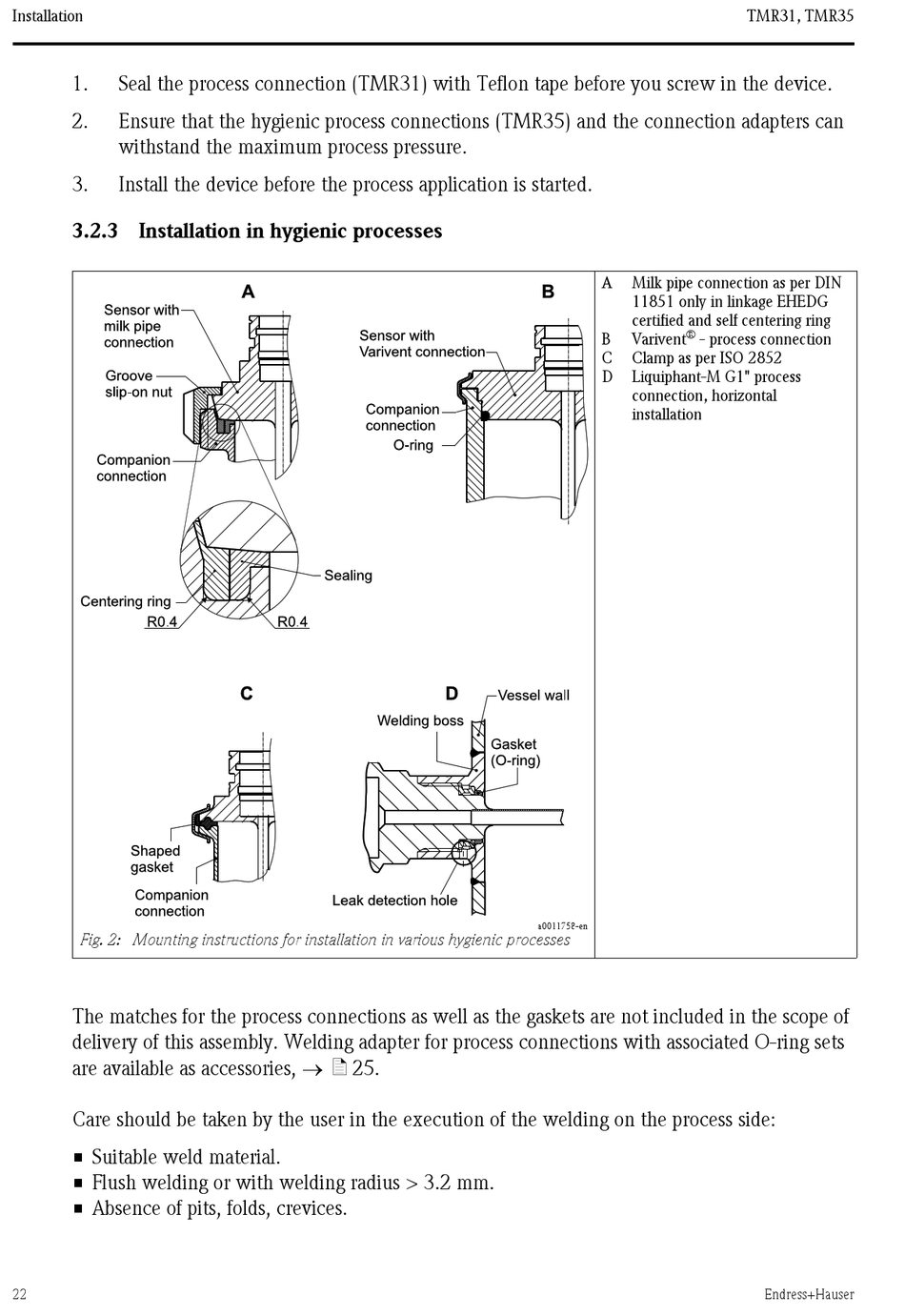

Fig. 2: Mounting instructions for installation in various hygienic processes
The matches for the process connections as well as the gaskets are not included in the scope of
delivery of this assembly. Welding adapter for process connections with associated O-ring sets
are available as accessories,  ä 25.
Care should be taken by the user in the execution of the welding on the process side:
• Suitable weld material.
• Flush welding or with welding radius > 3.2 mm.
• Absence of pits, folds, crevices.
22
A Milk pipe connection as per DIN
11851 only in linkage EHEDG
certified and self centering ring
®
B Varivent - process connection
C Clamp as per ISO 2852
D Liquiphant-M G1" process
connection, horizontal
installation
a0011758-en
TMR31, TMR35
