Description Of The Parts Of The Power Generator With Covers Fitted - Eisemann BSKA 9,5 EV SS curve Betriebsanleitung

4.2.

Description of the parts of the power generator with covers fitted

20-1
20-2
20-3
20-4
20-5
20-6 20-5
20-11
20-4
20-12

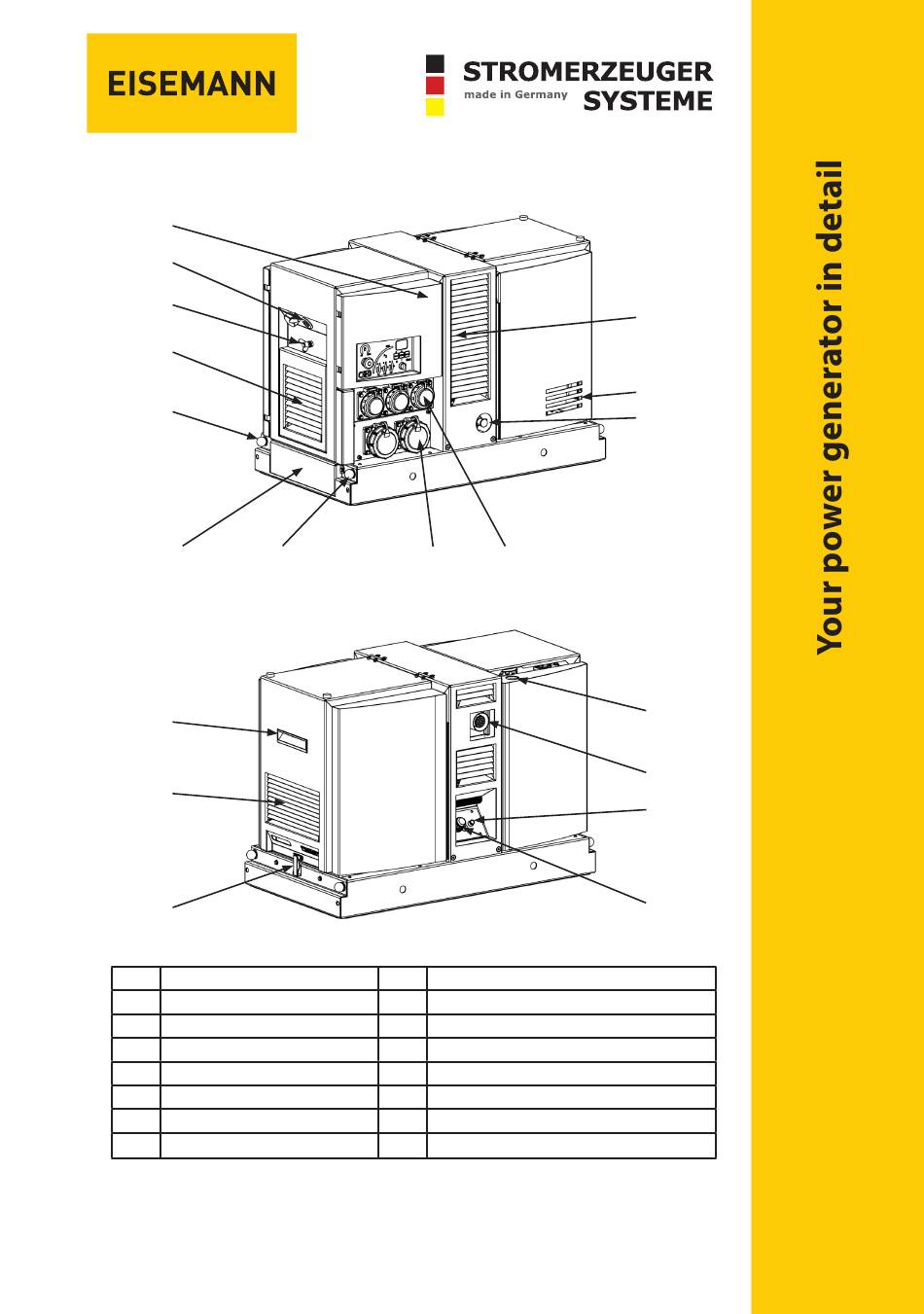

20-1 Control box door
20-2 Acoustic signal generator
20-3 Earth connection
20-4 Air inlet
20-5 Pull-out carrying handle
20-6 Battery compartment
20-7 CEE socket 400 V 16 A
20-8 Earthed shuttered socket 230 V
20-7 20-8
20-9 Connection to an external tank
20-10 Air outlet
20-11 Engine hood
20-12 Engine hood lock
20-13 Firecan socket
20-14 Fuse for battery charging circuit
20-15 Exhaust outlet
20-16 Fuel level gauge
20-10
20-4
20-09
20-16
20-15
20-14
20-13
Page 19
