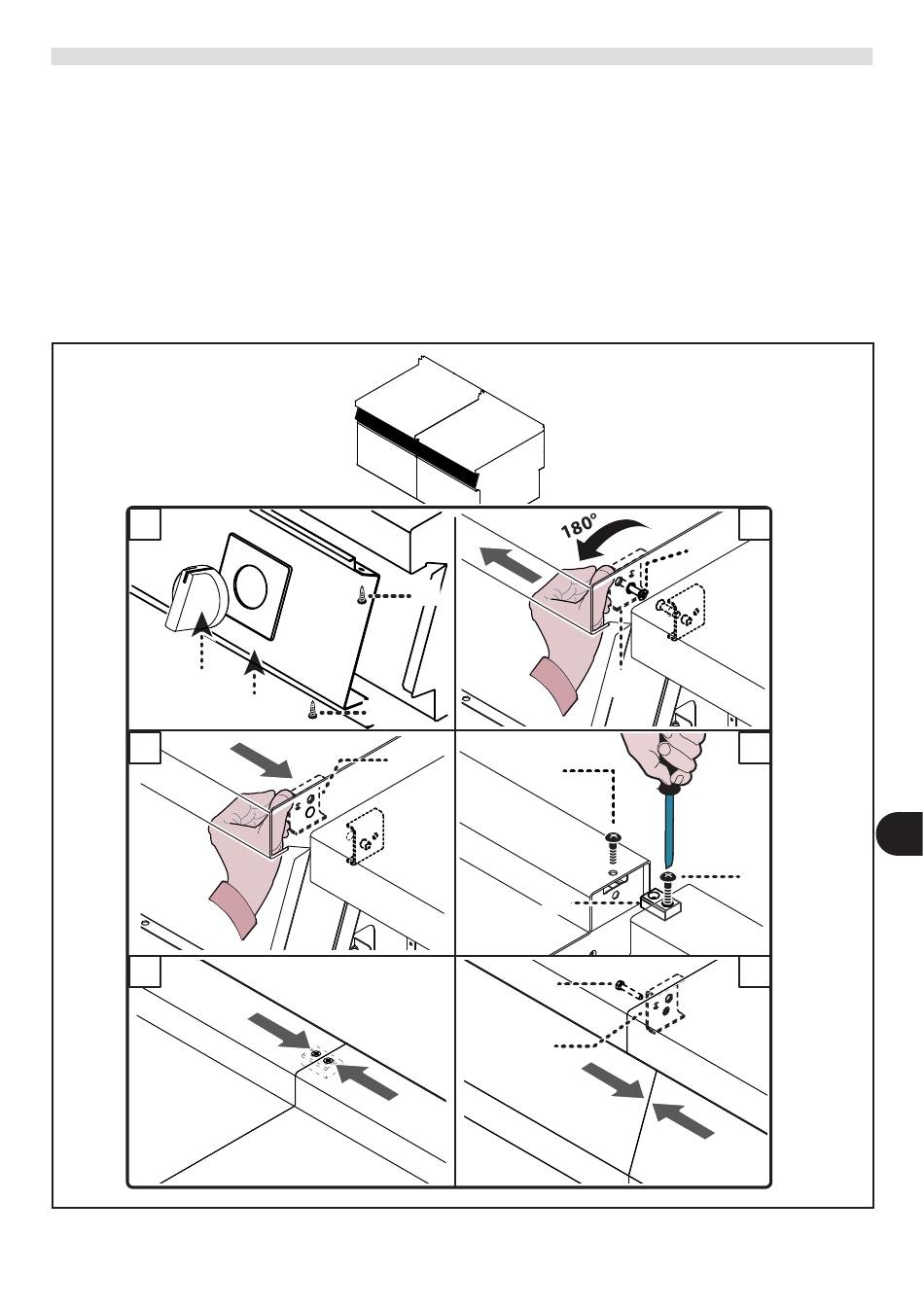

To assemble appliances in banks (side by side)
proceed as described below.
Pull off the knob (A) (fi g.1).
1)
Undo the screws (C) and remove the control
2)
panels (B) (fi g.1).
Undo the screw (D) and turn the bracket (E)
3)
180° anti-clockwise (fi g.2-3).
Connect the appliance using the screws (F)
4)
and the bracket (G) (rear part of the applian-
ce) (fi g.4-5).
1
A
3
5
3319970_inst_GB_rev.1

ASSEMBLY APPLIANCES IN BANKS

C
B
C
E
Connect the appliance using the screws (H)
5)
(supplied) and the bracket (E) (front part of
the appliance) (fi g.6).
Replace the control panels (B) and the knobs
6)
(A) on completion of the operation (fi g.1).
A variety of optional installation kits are availa-
ble for arranging appliances in banks (see "gene-
ral catalogue").
E
F
G
H
E
