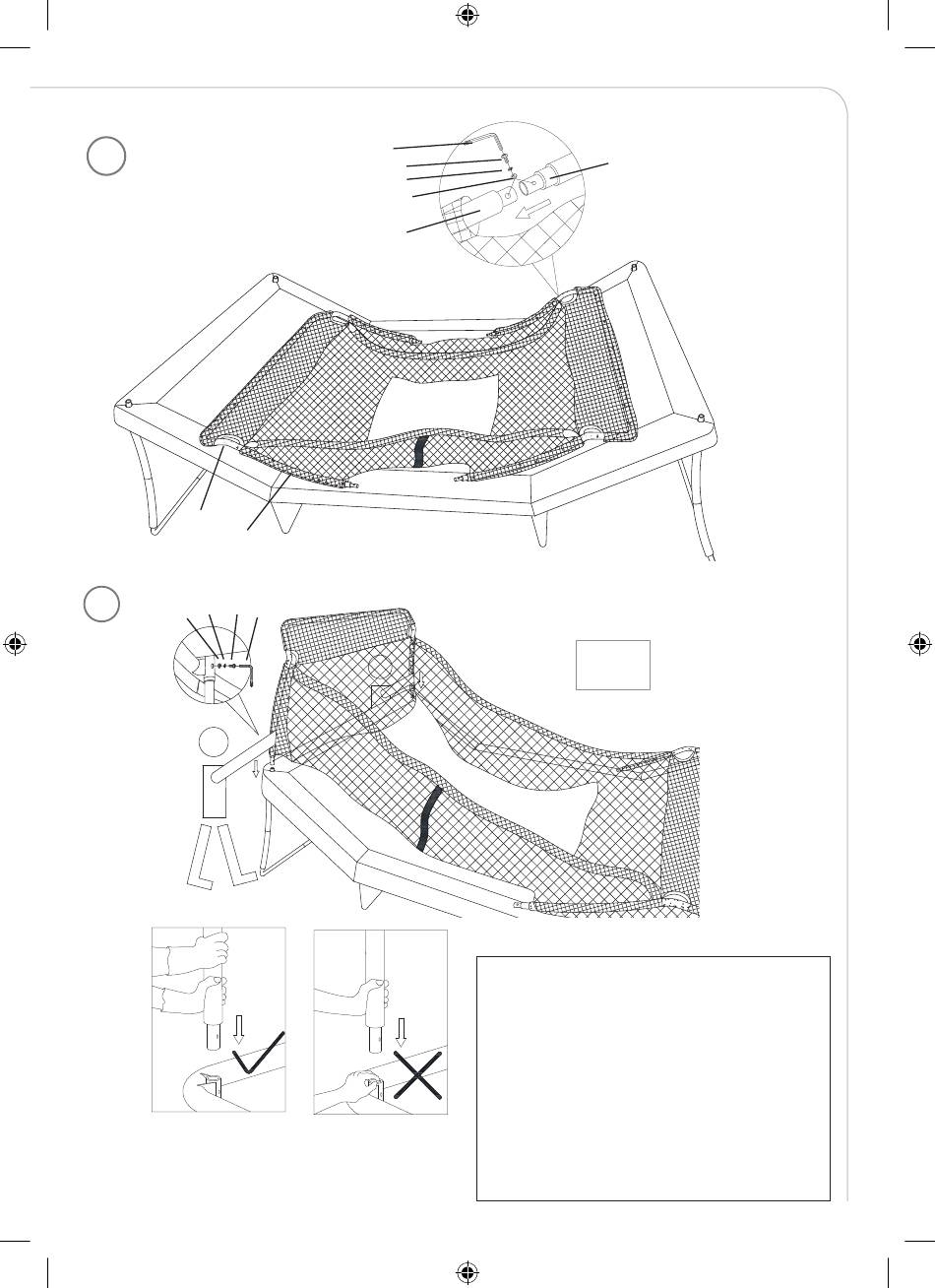

Step 18
Connect Curved Vertical Tube (# 23) to Arched Tube (# 28) using Arc Washer (# G), Spring Lock Washer (# E),
Screw (# F) and Allen Wrench (# I) as shown in FIGURE 28. Repeat the same for all four tubes.
17
Step 19
With one person at each end holding the tubes steady, lift up the Curved Vertical Tube (# 23) assembled in the
previous step and insert it) into the sockets on Corner Frame-Right (# 5) and Corner Frame-Left (# 6). Secure
using Arc Washer (# G), Spring Lock Washer (# E), Screw (# F) and Allen Wrench (# I) as shown in FIGURE
29. Repeat the same for the other side.
