RUSTA ADVANCED Gebrauchsanweisung Seite 59

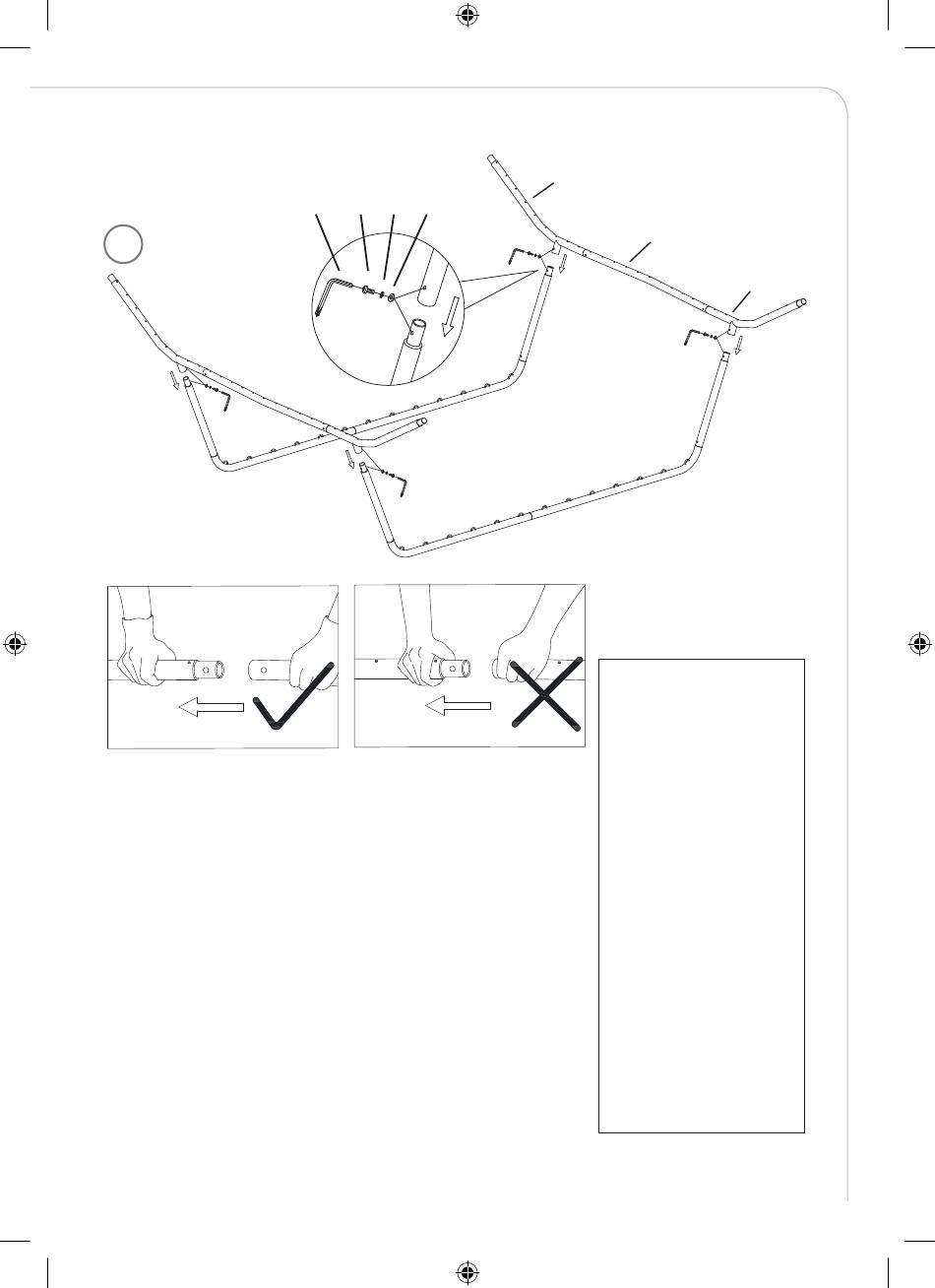

B. Lift the Center Leg Supports assembled in Step 2 to a vertical (standing) position and attach
The Center Frames installed in the previous step. Secure using Arc Washer (# G), Spring Lock Washer (# E),
Screw (# F) and Allen Wrench (# I) as shown in FIGURE 4.
Step 3 – Center Frame Assembly
Step 3 – Center Frame Assembly
.
A. Connect L-Frame (# 1) and L-Frame with "L" Mark (# 2) to the ends of Long Frame (# 3). Secure using Long
A. Connect L-Frame (# 1) and L-Frame with "L" Mark (# 2) to the ends of Long Frame (# 3). Secure using Long
Screw (# C), Large Arc Washer (# O), Nylon Nut (# D) and Wrench (# P) as shown in the enlarged diagrams.
Screw (# C), Large Arc Washer (# O), Nylon Nut (# D) and Wrench (# P) as shown in the enlarged diagrams.
Make sure all holes on the frame tubes are facing upward which are needed to install the springs later. Repeat
Make sure all holes on the frame tubes are facing upward which are needed to install the springs later. Repeat
in the same manner for the other set.
in the same manner for the other set.
3B
#1
#1
DO NOT PLACE HANDS NEAR THE OPENING WHEN CONNECTING THE TUBES. WEAR
DO NOT PLACE HANDS NEAR THE OPENING WHEN CONNECTING THE TUBES. WEAR
PROTECTIVE GLOVES TO PROTECT FROM INJURIES DURING ASSEMBLY.
PROTECTIVE GLOVES TO PROTECT FROM INJURIES DURING ASSEMBLY.
DO NOT PLACE HANDS NEAR THE OPENING WHEN CONNECTING THE TUBES. WEAR
PROTECTIVE GLOVES TO PROTECT FROM INJURIES DURING ASSEMBLY.
IM_759013120301_Trampoline_Advanced_550x400cm_v3.indd 59
TRAMPOLINE FRAME ASSEMBLY
TRAMPOLINE FRAME ASSEMBLY
# I # F # E # G
# C
# C
# O
# O
# D
# D
#P
#P
#3
#3
# 2
15
15
16
TRAMPOLINE FRAME ASSEMBLY
# 1
# 3
# I
# I
# 2
FIGURE 3
FIGURE 3
WARNING! Never place
your hands near the tube
openings! Risk of trapping!
Always use gloves. /
VARNING! Placera aldrig
händerna i närheten av
rörens öppningar, klämrisk!
Använd alltid handskar. /
ADVARSEL! Plasser aldri
hendene nær røråpningene
på grunn av klemrisiko!
Bruk alltid hansker. /
WARNUNG! Niemals die
Hände in der Nähe der
Rohröff nungen halten.
Quetschgefahr! Verwenden
Sie immer Handschuhe. /
VAROITUS! Älä koskaan
aseta käsiäsi putkien
aukkojen lähelle
puristumisvaaran takia!
Käytä aina käsineitä.
# 2
FIGURE 4
59
