205
20 10
85
194

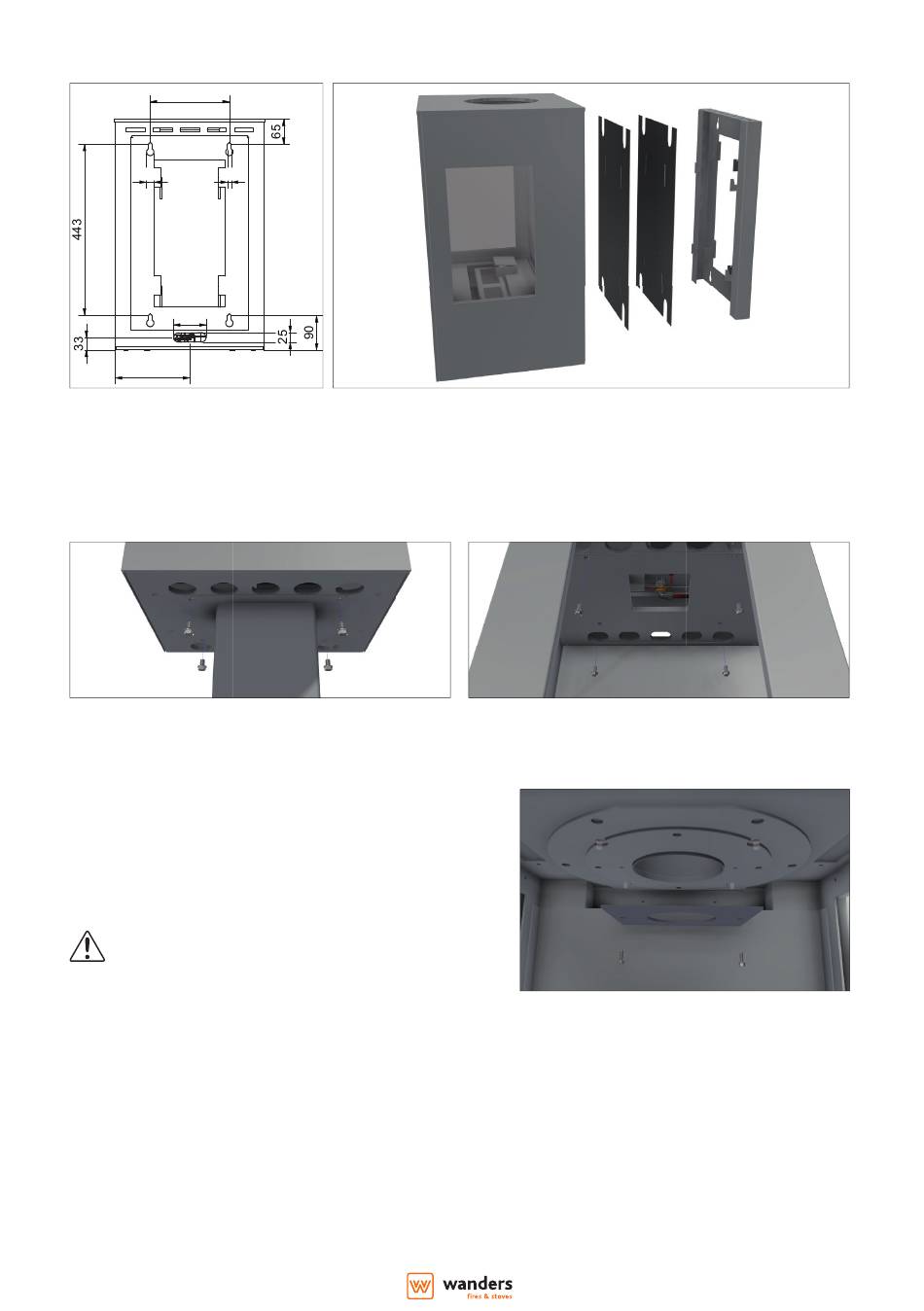

Placing the fi replace (freestanding)
• The fi replace must be placed on a suffi ciently sturdy fl oor.
• Both base versions must be screwed on using 4 M5 bolts that are screwed into the fi replace from the bottom up.
• No fl ammable materials such as curtains must be present in the vicinity of the fi replace. A safe distance to maintain regarding
such fl ammable materials can be found on page 58-60.
Installing the reducer
Depending on the length and shape of the concentric channel system
Ø 100 - Ø 150 mm and the outlet construction, a restrictor with a
diameter of Ø 35 mm, Ø 50 mm, Ø 60 mm or Ø 80 mm according to
the tables on page 23 must be installed in the top of the combustion
chamber. The standard culvert for the fl ue gases is Ø 100 mm.
Ensure that the reducer is properly fi tted. Fitting the
reducer incorrectly may cause defects to the appliance.

Placing the log set

The log set can be placed after opening the door as described on page 24.
Overview logs and decoration
Layout log set
• Place the logs according to the images corresponding with your fi replace.
• The logs needs to be placed exactly according to the examples.
• Ensure that the pilot fl ame is always free of obstructions so it can lit the main burner properly.
• Ensure the the glass is fi tted before lighting the fi replace.
GB
25
