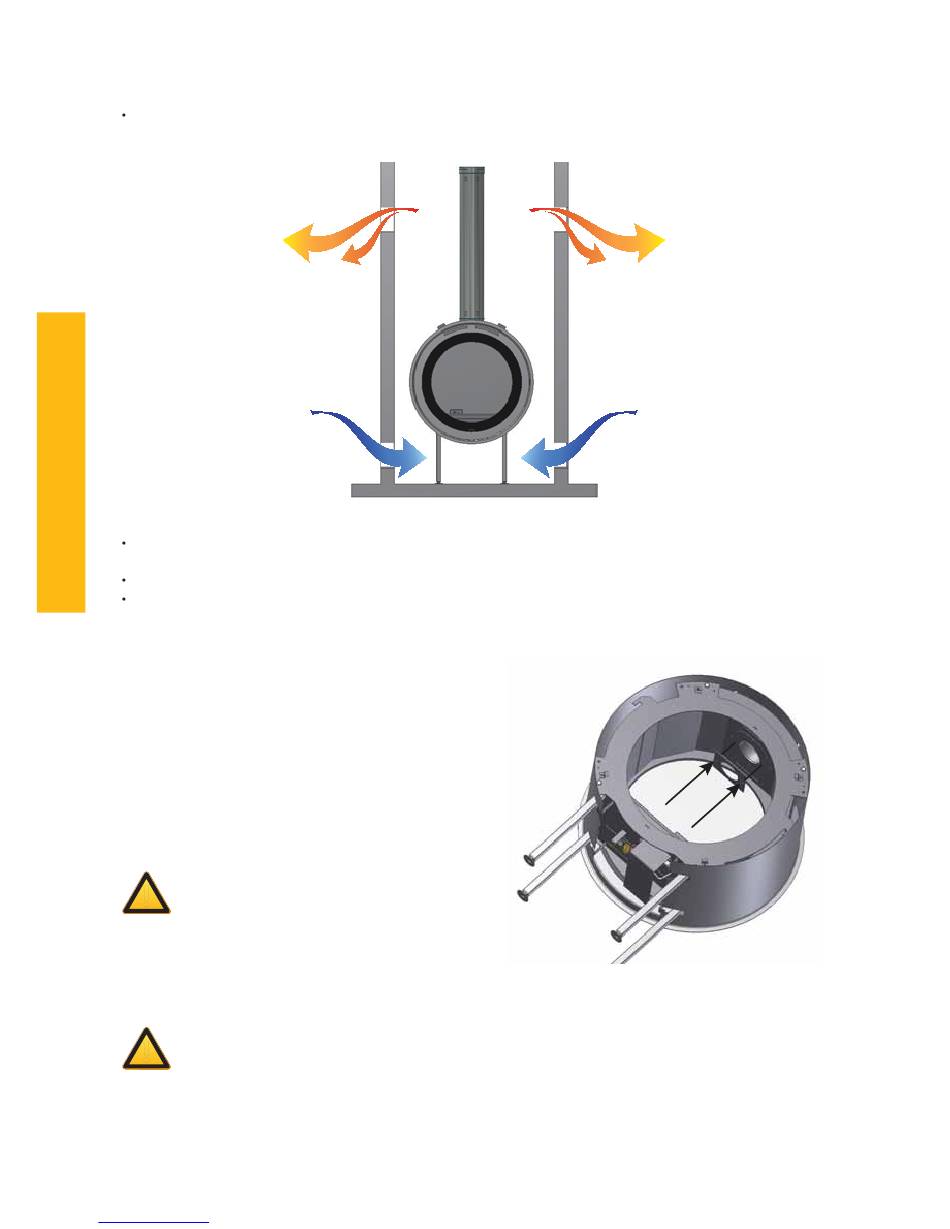

The fireplace must have convection grates on the underside and the upper side as shown on the image
below.
The minimum distance from the appliance to the rear wall must be 10 cm. The minimum distance on the
left and right sides of the stove must also be 10 cm.
The appliance must be placed on a floor that is solid enough to hold it.
It is forbidden use and/or to place flammable materials, such as curtains, in the vicinity of the appliance; it
is safe to keep them at a distance of at least 1.5m.

Mounting the collar shaft

Depending on the length and the form of the
concentric duct system Ø 100 - Ø 150 mm and the
outlet construction, you must mount a collar shaft
with a diameter of Ø 50mm, Ø 70 mm or Ø 80mm
according to the tables on page 26. The standard
passage for flue gases is Ø 100 mm on the upper side
of the combustion chamber.
Ensure that the collar shaft is properly fitted.
!
Fitting the collar shaft incorrectly may cause
defects to the appliance.

Placing the log set

Be sure to place the logs exactly as shown in the example.
!
The log set can be placed in the appliance after removing the front glass as shown on 27.
Place the log set of 8 pieces according to the directions and as show on the following images.
28
