Reaming the fin bed/Mounting the reamer
handpiece
Damage to nerves, spinal cord and
other tissue because of fin bed
reamed too deeply due to using too
long a reamer handpiece or reamer.
WARNING
Only use reamer handpiece Hi-
Line XS XL-1 (GB771R).
Only
(GE700SU).
Prior to mounting, verify that the safety stop of the
pneumatic motor is in position "0".
Assemble the compressed-air tube, the HiLAN
pneumatic motor and reamer handpiece 6 as
described and illustrated in the respective
instructions for use supplied with the products.

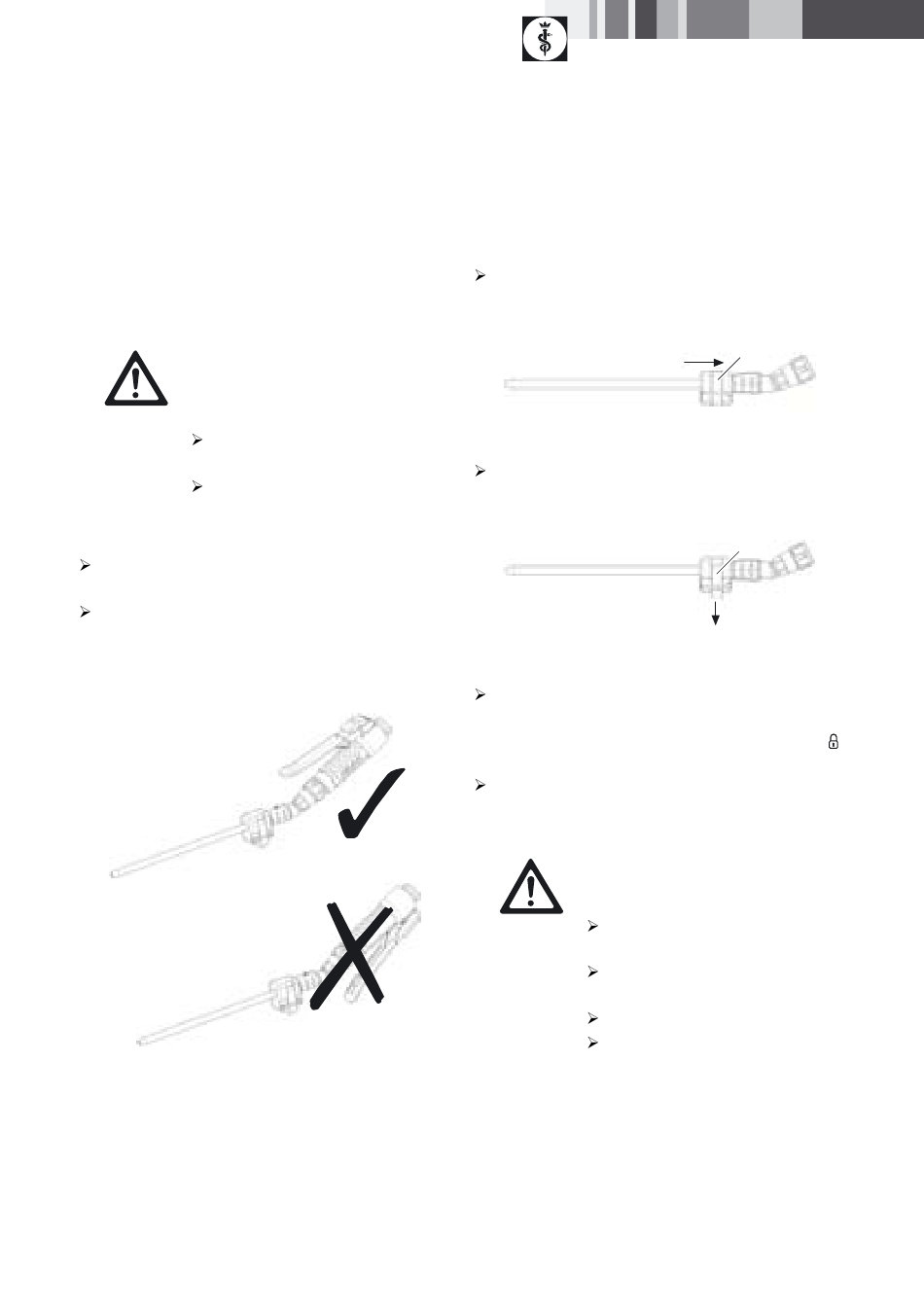

Fig. 2 Assembling
use activC reamer
Keep pressed locking clip 13 of mounting block 4
and push the clip over reamer handpiece 6, see Fig. 3.
Fig. 3 Mounting block with pressed locking clip
Slide on mounting block 4 as far as it will go and
release locking clip 13, see Fig. 4.
Fig. 4 Mounting block with locking clip engaged
Pull at the mounting block 4 to check whether it is
engaged properly. The arrow marking on the
locking clip 13 must point to the "locked"
pictogram.
Mount reamer 5 as described in the instructions for
use of reamer handpiece 6.
Risk of injury to blood vessels,
nerves, spinal cord or other tissue if
wrong reamer is used!
WARNING Only
GE700SU.
Check for technical faults prior
to use.
Do not used bent reamers.
Do not reuse reamers after first
use.
13
13
use activ C reamer
5
