B. Braun Aesculap Spine activ C FW645R Gebrauchsanweisung/Technische Beschreibung Seite 10

Aesculap Spine
activ C handle, reamer guide, chisel guide, trial implants

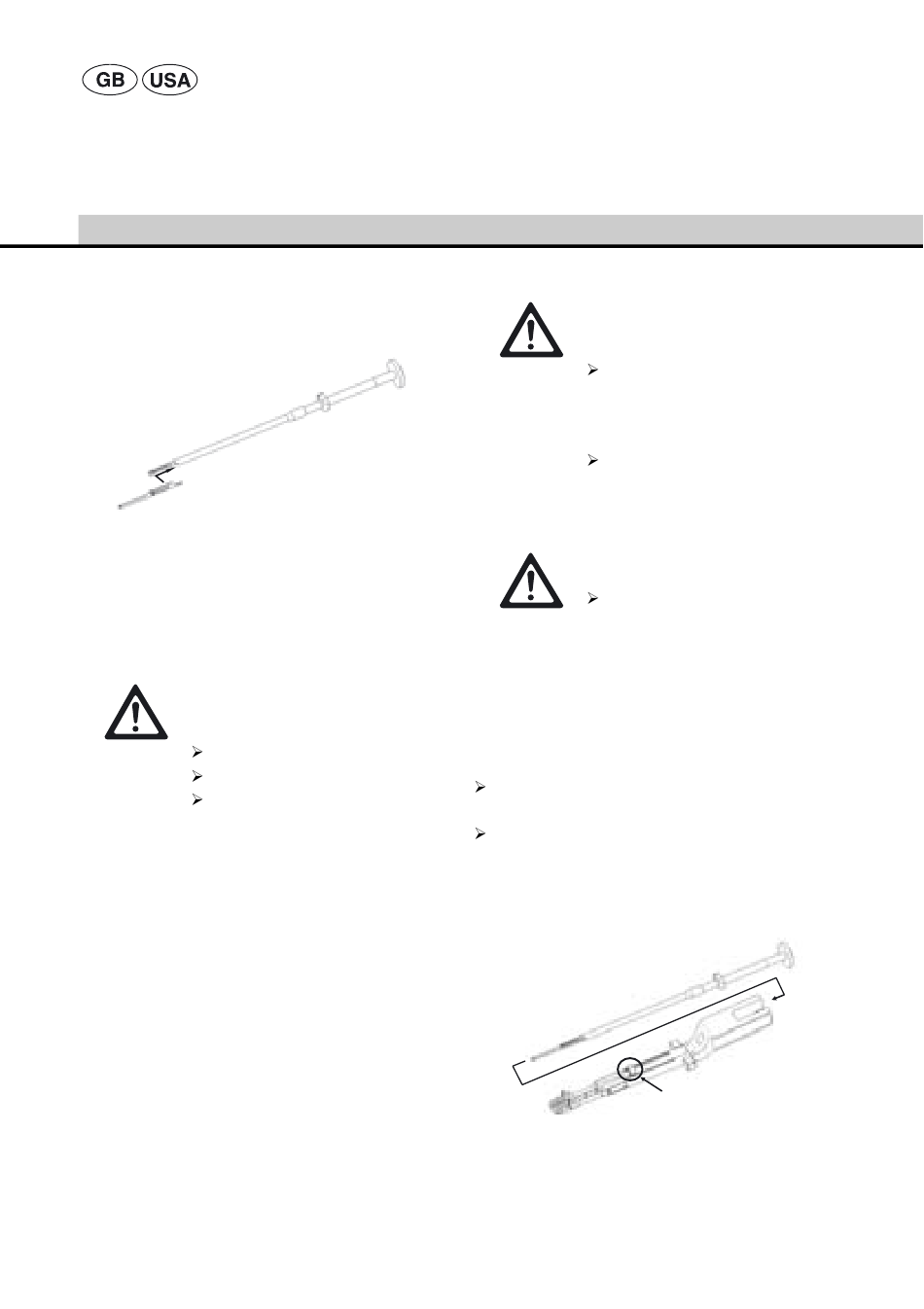

Fig. 6 Chisel and chisel holder
Risk of injury to blood vessels,
nerves, spinal cord or other tissue if
wrong chisel is used!
Only use chisel FW787R.
WARNING
Do not use bent chisels.
Do not reuse reamers after first
use.
Note
The chiseling of the fin bed determines the position and
orientation of the disk prosthesis in the plane of the
intervertebral disk. The fin bed must only be prepared
for the inferior implant plate.
8
Malpositioning of the intervertebral
disk prosthesis due to failure to
observe the midline!
Check the central position of
WARNING
the trial implant by means of
the midline marking and on the
AP-view X-ray image.
Make certain that the position
of the trial implant does not
change during reaming.
Risk of injury caused by sharp
chisel!
To avoid injuries to critical
blood vessels, nerves and other
WARNING
tissue, as well as injuries to the
operating surgeon, always work
with appropriate care when a
chisel is clamped in the chisel
holder.
A: Carefully push the chisel holder 9 with the
chisel through the rear chisel guide.
B: Carefully push the chisel holder 9 with the chisel
through the front chisel guide.
Fig. 7 Chisel holder and chisel guide
A
B
