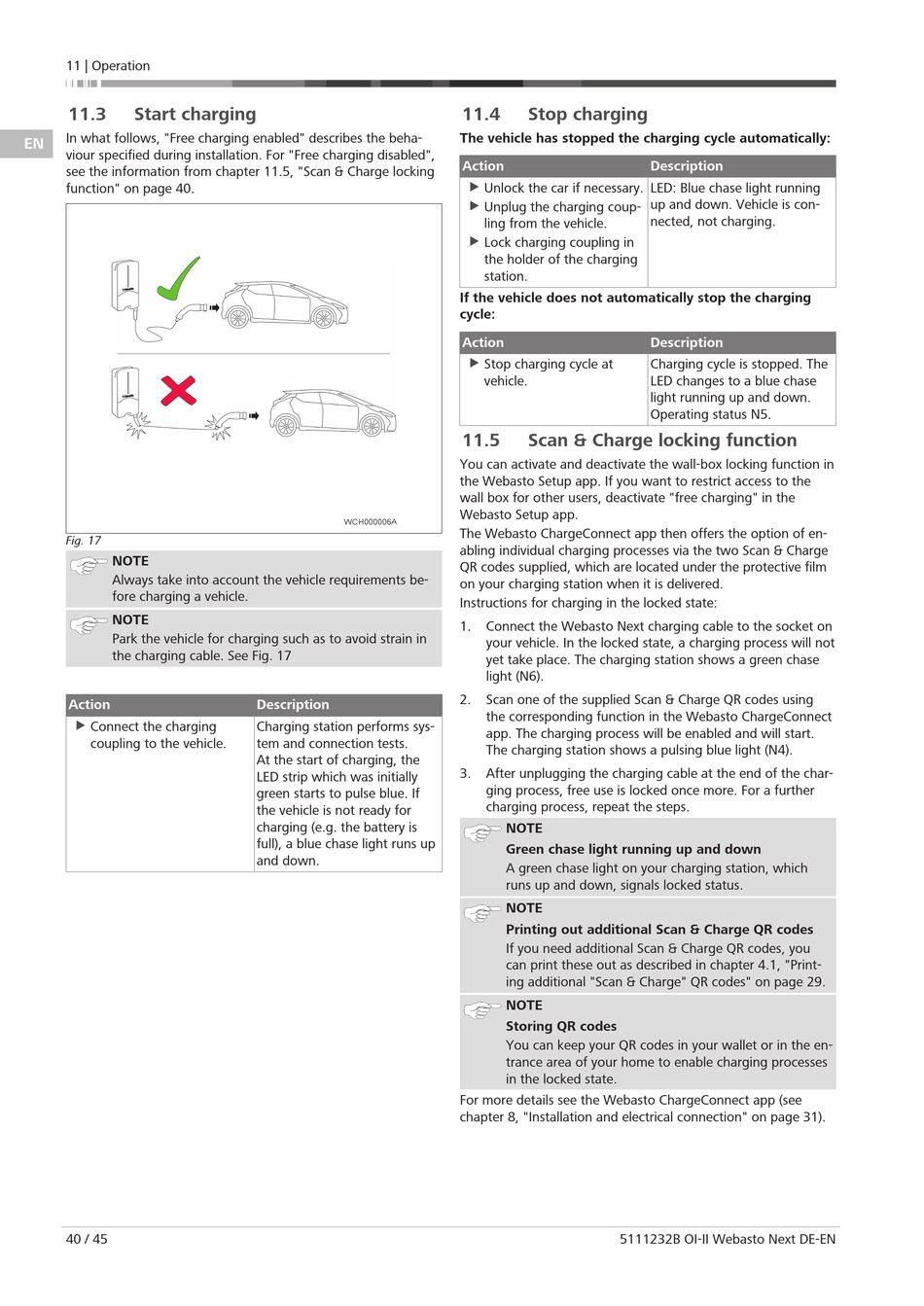

Start Charging; Stop Charging; Scan & Charge Locking Function - Webasto Next Bedienungs- Und Einbauanleitung

11 | Operation
11.3

Start charging

In what follows, "Free charging enabled" describes the beha-
EN
viour specified during installation. For "Free charging disabled",
see the information from chapter 11.5, "Scan & Charge locking
function" on page 40.
Fig. 17
NOTE
Always take into account the vehicle requirements be-
fore charging a vehicle.
NOTE
Park the vehicle for charging such as to avoid strain in
the charging cable. See Fig. 17
Action
u Connect the charging
coupling to the vehicle.
40 / 45
WCH000006A
Description
Charging station performs sys-
tem and connection tests.
At the start of charging, the
LED strip which was initially
green starts to pulse blue. If
the vehicle is not ready for
charging (e.g. the battery is
full), a blue chase light runs up
and down.
11.4

Stop charging

The vehicle has stopped the charging cycle automatically:
Action
u Unlock the car if necessary.
u
Unplug the charging coup-
ling from the vehicle.
u
Lock charging coupling in
the holder of the charging
station.
If the vehicle does not automatically stop the charging
cycle:
Action
u
Stop charging cycle at
vehicle.
11.5 Scan & Charge locking function
You can activate and deactivate the wall-box locking function in
the Webasto Setup app. If you want to restrict access to the
wall box for other users, deactivate "free charging" in the
Webasto Setup app.
The Webasto ChargeConnect app then offers the option of en-
abling individual charging processes via the two Scan & Charge
QR codes supplied, which are located under the protective film
on your charging station when it is delivered.
Instructions for charging in the locked state:
1. Connect the Webasto Next charging cable to the socket on
your vehicle. In the locked state, a charging process will not
yet take place. The charging station shows a green chase
light (N6).
2. Scan one of the supplied Scan & Charge QR codes using
the corresponding function in the Webasto ChargeConnect
app. The charging process will be enabled and will start.
The charging station shows a pulsing blue light (N4).
3. After unplugging the charging cable at the end of the char-
ging process, free use is locked once more. For a further
charging process, repeat the steps.
NOTE
Green chase light running up and down
A green chase light on your charging station, which
runs up and down, signals locked status.
NOTE
Printing out additional Scan & Charge QR codes
If you need additional Scan & Charge QR codes, you
can print these out as described in chapter 4.1, "Print-
ing additional "Scan & Charge" QR codes" on page 29.
NOTE
Storing QR codes
You can keep your QR codes in your wallet or in the en-
trance area of your home to enable charging processes
in the locked state.
For more details see the Webasto ChargeConnect app (see
chapter 8, "Installation and electrical connection" on page 31).
5111232B OI-II Webasto Next DE-EN
Description
LED: Blue chase light running
up and down. Vehicle is con-
nected, not charging.
Description
Charging cycle is stopped. The
LED changes to a blue chase
light running up and down.
Operating status N5.
