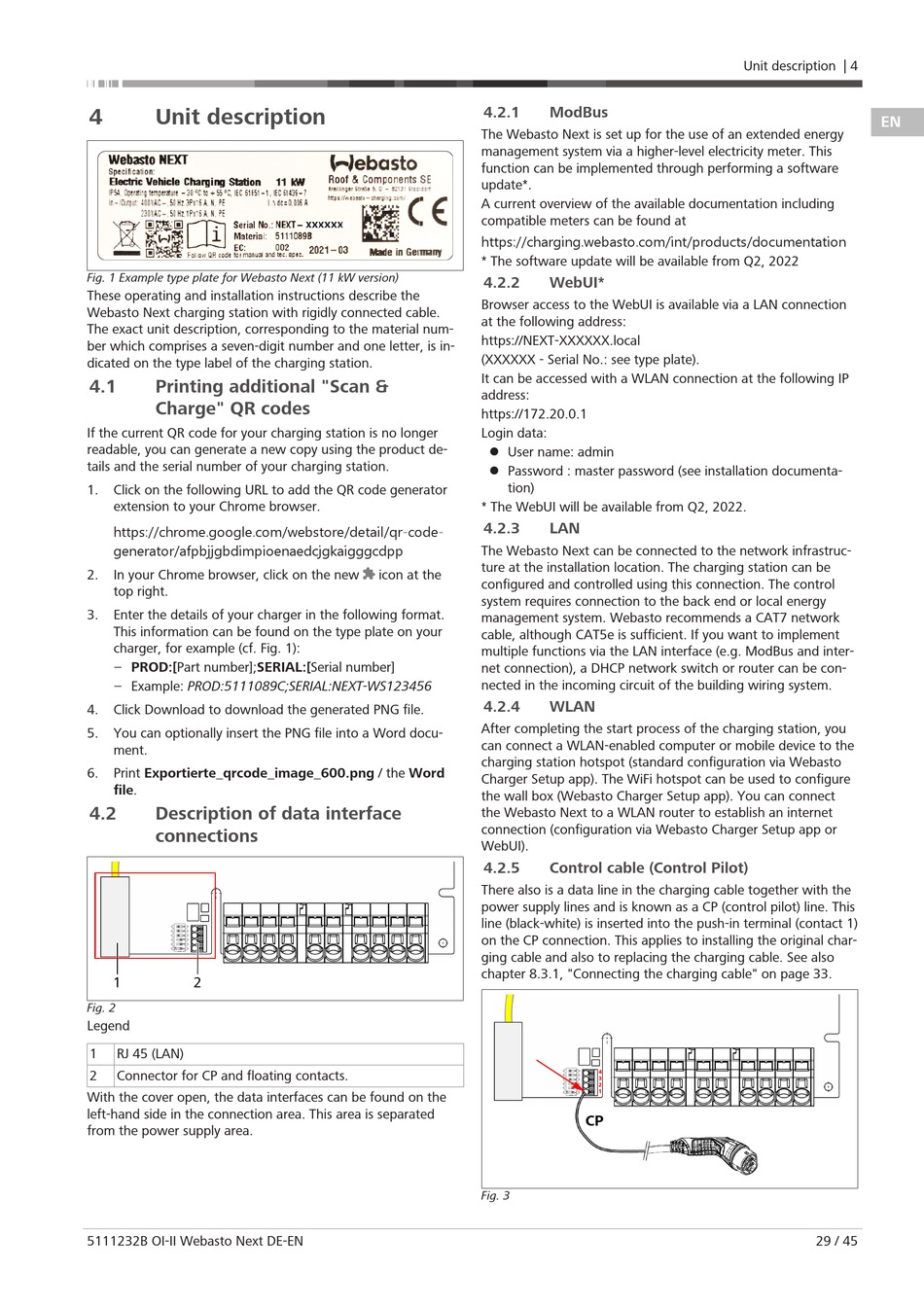

Unit description

Fig. 1 Example type plate for Webasto Next (11 kW version)
These operating and installation instructions describe the
Webasto Next charging station with rigidly connected cable.
The exact unit description, corresponding to the material num-
ber which comprises a seven-digit number and one letter, is in-
dicated on the type label of the charging station.
4.1 Printing additional "Scan &
Charge" QR codes
If the current QR code for your charging station is no longer
readable, you can generate a new copy using the product de-
tails and the serial number of your charging station.
1. Click on the following URL to add the QR code generator
extension to your Chrome browser.
https://chrome.google.com/webstore/detail/qr-code-
generator/afpbjjgbdimpioenaedcjgkaigggcdpp
2. In your Chrome browser, click on the new
top right.
3. Enter the details of your charger in the following format.
This information can be found on the type plate on your
charger, for example (cf. Fig. 1):
– PROD:[Part number];SERIAL:[Serial number]
– Example: PROD:5111089C;SERIAL:NEXT-WS123456
4. Click Download to download the generated PNG file.
5. You can optionally insert the PNG file into a Word docu-
ment.
6. Print Exportierte_qrcode_image_600.png / the Word
file.
4.2 Description of data interface
connections
1 2
Fig. 2
Legend
1 RJ 45 (LAN)
2 Connector for CP and floating contacts.
With the cover open, the data interfaces can be found on the
left-hand side in the connection area. This area is separated
from the power supply area.
5111232B OI-II Webasto Next DE-EN
4.2.1 ModBus
The Webasto Next is set up for the use of an extended energy
management system via a higher-level electricity meter. This
function can be implemented through performing a software
update*.
A current overview of the available documentation including
compatible meters can be found at
https://charging.webasto.com/int/products/documentation
* The software update will be available from Q2, 2022
4.2.2 WebUI*
Browser access to the WebUI is available via a LAN connection
at the following address:
https://NEXT-XXXXXX.local
(XXXXXX - Serial No.: see type plate).
It can be accessed with a WLAN connection at the following IP
address:
https://172.20.0.1
Login data:
l User name: admin
l Password : master password (see installation documenta-
tion)
* The WebUI will be available from Q2, 2022.
4.2.3 LAN
The Webasto Next can be connected to the network infrastruc-
ture at the installation location. The charging station can be
icon at the
configured and controlled using this connection. The control
system requires connection to the back end or local energy
management system. Webasto recommends a CAT7 network
cable, although CAT5e is sufficient. If you want to implement
multiple functions via the LAN interface (e.g. ModBus and inter-
net connection), a DHCP network switch or router can be con-
nected in the incoming circuit of the building wiring system.
4.2.4 WLAN
After completing the start process of the charging station, you
can connect a WLAN-enabled computer or mobile device to the
charging station hotspot (standard configuration via Webasto
Charger Setup app). The WiFi hotspot can be used to configure
the wall box (Webasto Charger Setup app). You can connect
the Webasto Next to a WLAN router to establish an internet
connection (configuration via Webasto Charger Setup app or
WebUI).
4.2.5 Control cable (Control Pilot)
There also is a data line in the charging cable together with the
power supply lines and is known as a CP (control pilot) line. This
line (black-white) is inserted into the push-in terminal (contact 1)
on the CP connection. This applies to installing the original char-
ging cable and also to replacing the charging cable. See also
chapter 8.3.1, "Connecting the charging cable" on page 33.
Fig. 3
Unit description | 4
