5 | Transportation and storage

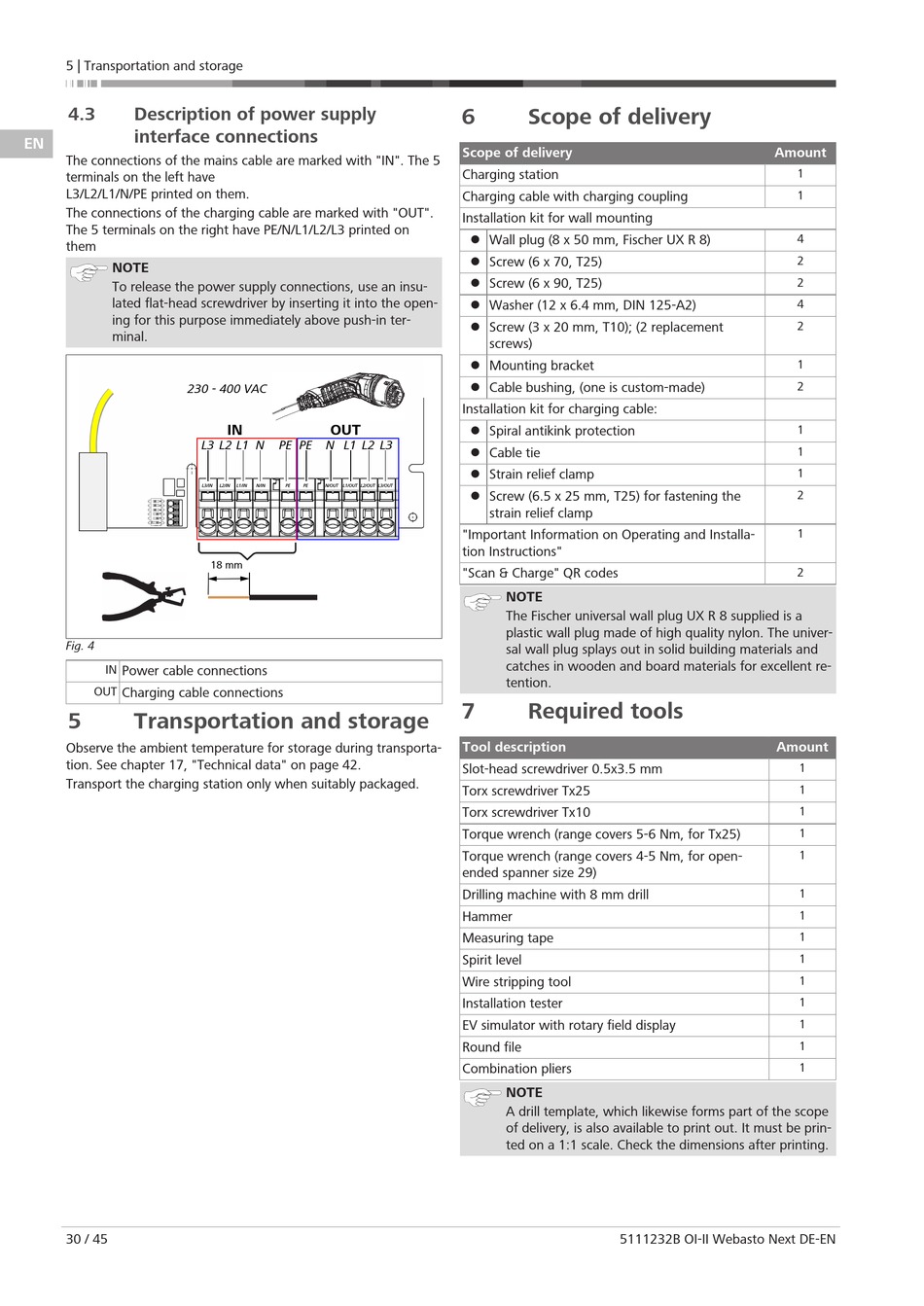

4.3 Description of power supply
interface connections
EN
The connections of the mains cable are marked with "IN". The 5
terminals on the left have
L3/L2/L1/N/PE printed on them.
The connections of the charging cable are marked with "OUT".
The 5 terminals on the right have PE/N/L1/L2/L3 printed on
them
NOTE
To release the power supply connections, use an insu-
lated flat-head screwdriver by inserting it into the open-
ing for this purpose immediately above push-in ter-
minal.
230 - 400 VAC
Fig. 4
IN Power cable connections
OUT Charging cable connections
5 Transportation and storage
Observe the ambient temperature for storage during transporta-
tion. See chapter 17, "Technical data" on page 42.
Transport the charging station only when suitably packaged.
30 / 45
IN OUT
L3 L2 L1 N PE PE N L1 L2 L3
L3/IN L2/IN L1/IN N/IN PE PE N/OUT L1/OUT L2/OUT L3/OUT
18 mm
6

Scope of delivery

Scope of delivery
Charging station
Charging cable with charging coupling
Installation kit for wall mounting
l Wall plug (8 x 50 mm, Fischer UX R 8)
l Screw (6 x 70, T25)
l Screw (6 x 90, T25)
l Washer (12 x 6.4 mm, DIN 125-A2)
l Screw (3 x 20 mm, T10); (2 replacement
screws)
l Mounting bracket
l Cable bushing, (one is custom-made)
Installation kit for charging cable:
l Spiral antikink protection
l Cable tie
l Strain relief clamp
l Screw (6.5 x 25 mm, T25) for fastening the
strain relief clamp
"Important Information on Operating and Installa-
tion Instructions"
"Scan & Charge" QR codes
NOTE
The Fischer universal wall plug UX R 8 supplied is a
plastic wall plug made of high quality nylon. The univer-
sal wall plug splays out in solid building materials and
catches in wooden and board materials for excellent re-
tention.
7

Required tools

Tool description
Slot-head screwdriver 0.5x3.5 mm
Torx screwdriver Tx25
Torx screwdriver Tx10
Torque wrench (range covers 5-6 Nm, for Tx25)
Torque wrench (range covers 4-5 Nm, for open-
ended spanner size 29)
Drilling machine with 8 mm drill
Hammer
Measuring tape
Spirit level
Wire stripping tool
Installation tester
EV simulator with rotary field display
Round file
Combination pliers
NOTE
A drill template, which likewise forms part of the scope
of delivery, is also available to print out. It must be prin-
ted on a 1:1 scale. Check the dimensions after printing.
5111232B OI-II Webasto Next DE-EN
Amount
1
1
4
2
2
4
2
1
2
1
1
1
2
1
2
Amount
1
1
1
1
1
1
1
1
1
1
1
1
1
1
