8.3.1 Connecting the charging cable
1. Push the spiral antikink protection with the threadless
opening forward over the supplied charging cable.
2. Guide the charging cables through the previously pre-as-
sembled sealing clip.
NOTE
Ensure correct fit of the previously pre-assembled rub-
ber seals in the sealing clip.
3. Push the charging cable at least 10 mm beyond the upper
edge of the clamping area of the strain relief clamp.
4. Turn the antikink protection spiral several turns onto the
sealing clip.
NOTE
Do not tighten yet.

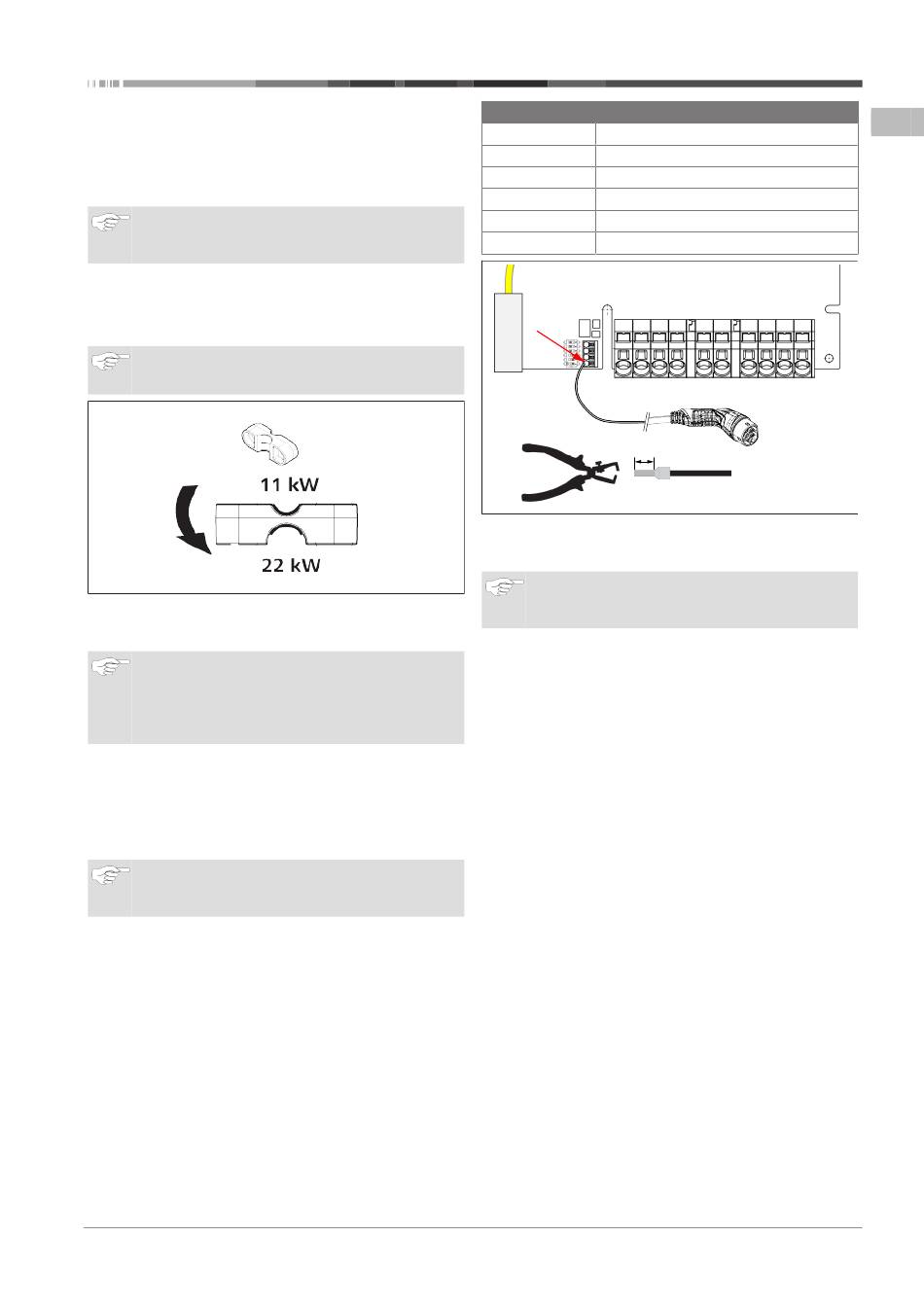

Fig. 6
5. Screw in the supplied strain relief clamp in the correct posi-
tion on the charging cable.
NOTE
The strain relief clamp has two position options for
charging cable versions 11 kW and 22 kW.
Ensure that the "11 kW installed" label for an 11 kW
charging cable is visible.
6. Fit the strain relief clamp in the correct mounting position
using the supplied self-tapping Torx screws (6.5 x 25 mm)
and tighten to 5.5 Nm. (Attention: Do not overtighten
screws).
7. The strain relief clamp must be flush when securely
screwed in.
NOTE
Perform a tension test on the charging cable to make
sure that the cable cannot move.
8. Screw the antikink protection spiral onto the sealing clip
with a torque of 4 Nm.
9. Using the slot-head screwdriver (3.5 mm), connect the indi-
vidual cable ends according to the specification in the illus-
tration (Fig. 8) on the right terminal block with the "OUT"
label.
10. To do this, insert the screwdriver in the designated upper
opening of the spring relief for the terminal block and open
the clamping spring.
11. Now insert the individual wire into the designated connec-
tion opening of the terminal block (lower opening).
12. Then pull the screwdriver out again and perform a tension
test to make sure that the individual wires are clamped
properly and fully.
5111232B OI-II Webasto Next DE-EN
Charging cable
Blue
Brown
Black
Grey
Yellow-green
Black-white
Fig. 7
1. Connect the black/white control cable (CP) with a wire end
ferrule to the terminal (contact 1).
WEM000091
NOTE
Push the white spring contact of the connection on the
right down while inserting the control cable fully.
2. Perform a tension test to make sure that the cable is
clamped properly and fully.
Installation and electrical connection | 8
Description
N
L1
L2
L3
PE
Control cable (CP)
4
3
2
1
CP
8 mm
EN
