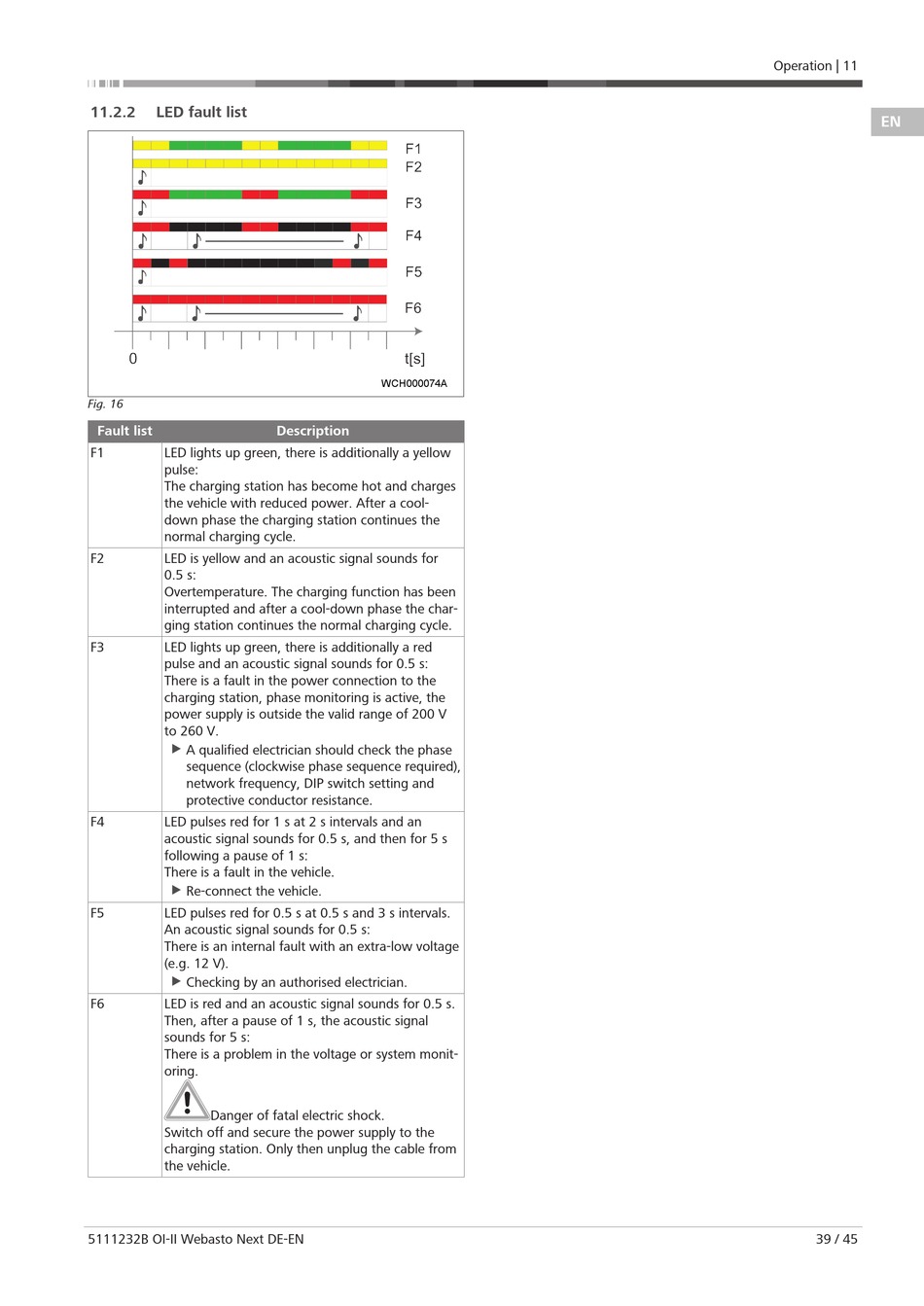

11.2.2 LED fault list
Fig. 16

Fault list

F1 LED lights up green, there is additionally a yellow
pulse:
The charging station has become hot and charges
the vehicle with reduced power. After a cool-
down phase the charging station continues the
normal charging cycle.
F2 LED is yellow and an acoustic signal sounds for
0.5 s:
Overtemperature. The charging function has been
interrupted and after a cool-down phase the char-
ging station continues the normal charging cycle.
F3 LED lights up green, there is additionally a red
pulse and an acoustic signal sounds for 0.5 s:
There is a fault in the power connection to the
charging station, phase monitoring is active, the
power supply is outside the valid range of 200 V
to 260 V.
u A qualified electrician should check the phase
sequence (clockwise phase sequence required),
network frequency, DIP switch setting and
protective conductor resistance.
F4 LED pulses red for 1 s at 2 s intervals and an
acoustic signal sounds for 0.5 s, and then for 5 s
following a pause of 1 s:
There is a fault in the vehicle.
u
Re-connect the vehicle.
F5 LED pulses red for 0.5 s at 0.5 s and 3 s intervals.
An acoustic signal sounds for 0.5 s:
There is an internal fault with an extra-low voltage
(e.g. 12 V).
u Checking by an authorised electrician.
F6 LED is red and an acoustic signal sounds for 0.5 s.
Then, after a pause of 1 s, the acoustic signal
sounds for 5 s:
There is a problem in the voltage or system monit-
oring.
Danger of fatal electric shock.
Switch off and secure the power supply to the
charging station. Only then unplug the cable from
the vehicle.
