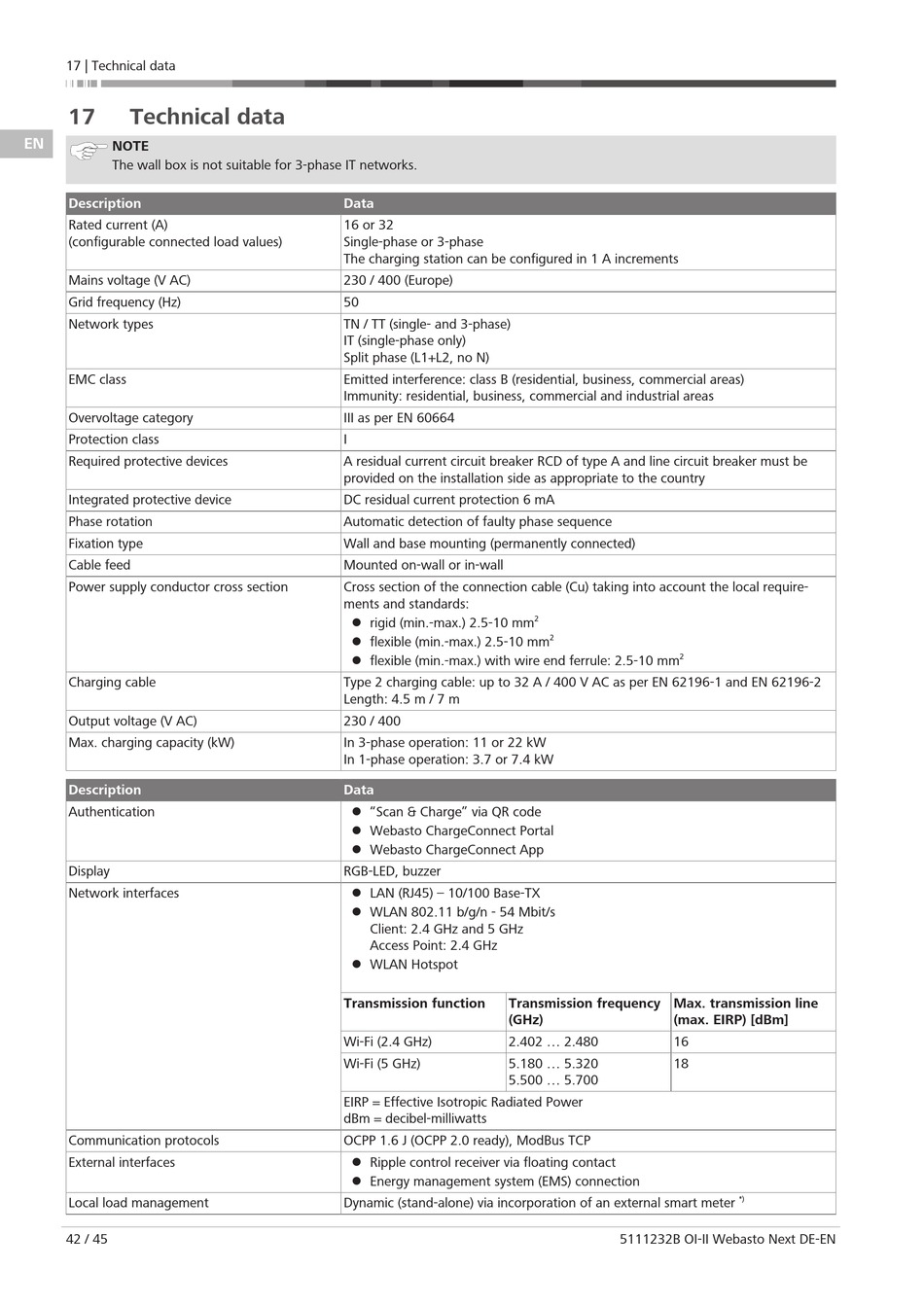

17 Technical data
EN
NOTE
The wall box is not suitable for 3-phase IT networks.
Description
Rated current (A)
(configurable connected load values)
Mains voltage (V AC)
Grid frequency (Hz)
Network types
EMC class
Overvoltage category
Protection class
Required protective devices
Integrated protective device
Phase rotation
Fixation type
Cable feed
Power supply conductor cross section
Charging cable
Output voltage (V AC)
Max. charging capacity (kW)
Description
Authentication
Display
Network interfaces
Communication protocols
External interfaces
Local load management
42 / 45
Data
16 or 32
Single-phase or 3-phase
The charging station can be configured in 1 A increments
230 / 400 (Europe)
50
TN / TT (single- and 3-phase)
IT (single-phase only)
Split phase (L1+L2, no N)
Emitted interference: class B (residential, business, commercial areas)
Immunity: residential, business, commercial and industrial areas
III as per EN 60664
I
A residual current circuit breaker RCD of type A and line circuit breaker must be
provided on the installation side as appropriate to the country
DC residual current protection 6 mA
Automatic detection of faulty phase sequence
Wall and base mounting (permanently connected)
Mounted on-wall or in-wall
Cross section of the connection cable (Cu) taking into account the local require-
ments and standards:
l rigid (min.-max.) 2.5-10 mm
l flexible (min.-max.) 2.5-10 mm
l flexible (min.-max.) with wire end ferrule: 2.5-10 mm
Type 2 charging cable: up to 32 A / 400 V AC as per EN 62196-1 and EN 62196-2
Length: 4.5 m / 7 m
230 / 400
In 3-phase operation: 11 or 22 kW
In 1-phase operation: 3.7 or 7.4 kW
Data
l "Scan & Charge" via QR code
l Webasto ChargeConnect Portal
l Webasto ChargeConnect App
RGB-LED, buzzer
l LAN (RJ45) – 10/100 Base-TX
l WLAN 802.11 b/g/n - 54 Mbit/s
Client: 2.4 GHz and 5 GHz
Access Point: 2.4 GHz
l WLAN Hotspot
Transmission function Transmission frequency
(GHz)
Wi-Fi (2.4 GHz) 2.402 ... 2.480
Wi-Fi (5 GHz) 5.180 ... 5.320
5.500 ... 5.700
EIRP = Effective Isotropic Radiated Power
dBm = decibel-milliwatts
OCPP 1.6 J (OCPP 2.0 ready), ModBus TCP
l Ripple control receiver via floating contact
l Energy management system (EMS) connection
Dynamic (stand-alone) via incorporation of an external smart meter
