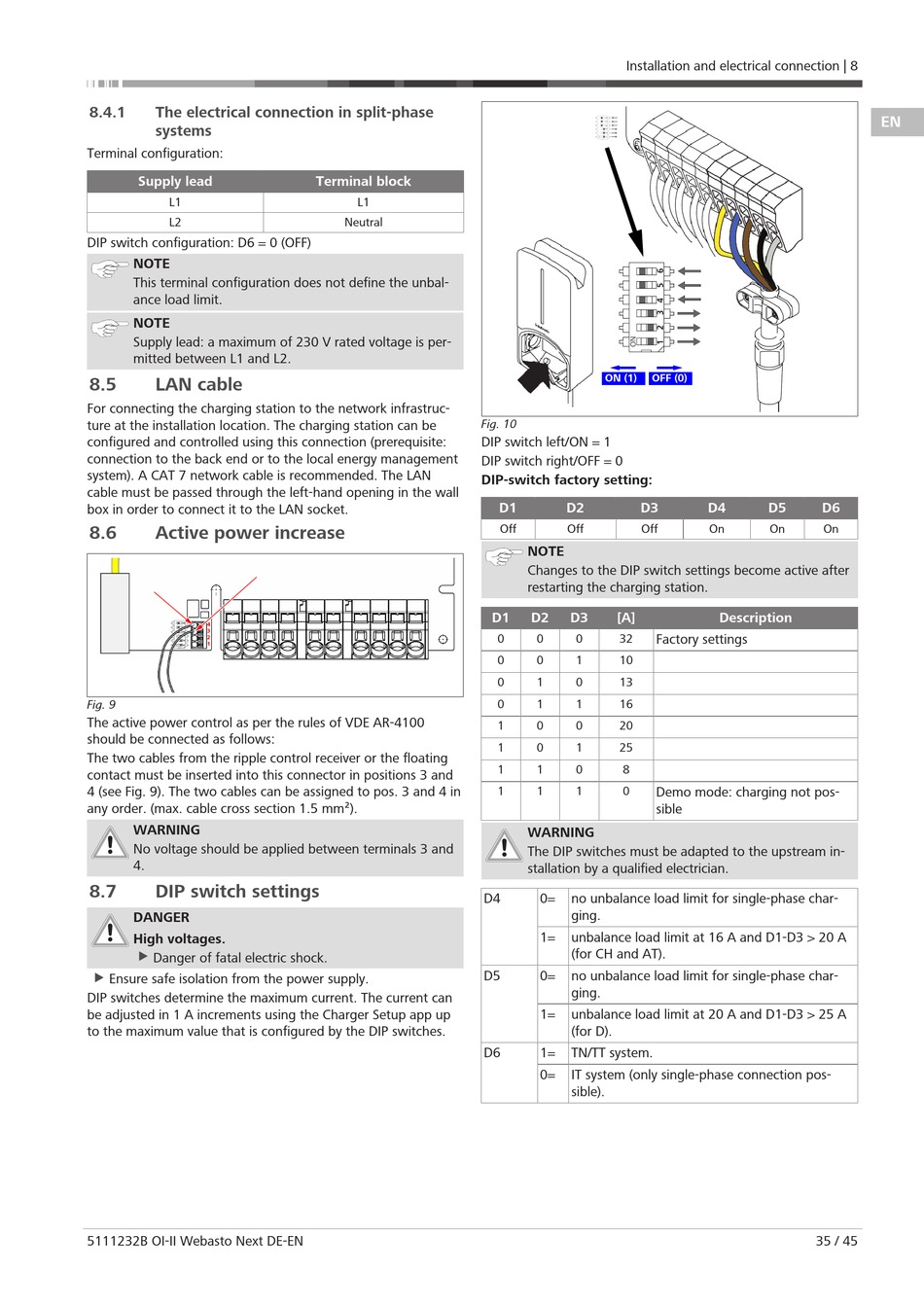

8.4.1 The electrical connection in split-phase
systems
Terminal configuration:
Supply lead
L1
L2
DIP switch configuration: D6 = 0 (OFF)
NOTE
This terminal configuration does not define the unbal-
ance load limit.
NOTE
Supply lead: a maximum of 230 V rated voltage is per-
mitted between L1 and L2.
8.5

LAN cable

For connecting the charging station to the network infrastruc-
ture at the installation location. The charging station can be
configured and controlled using this connection (prerequisite:
connection to the back end or to the local energy management
system). A CAT 7 network cable is recommended. The LAN
cable must be passed through the left-hand opening in the wall
box in order to connect it to the LAN socket.
8.6

Active power increase

4
3
2
1
Fig. 9
The active power control as per the rules of VDE AR-4100
should be connected as follows:
The two cables from the ripple control receiver or the floating
contact must be inserted into this connector in positions 3 and
4 (see Fig. 9). The two cables can be assigned to pos. 3 and 4 in
any order. (max. cable cross section 1.5 mm²).
WARNING
No voltage should be applied between terminals 3 and
4.
8.7

DIP switch settings

DANGER
High voltages.
u
Danger of fatal electric shock.
u Ensure safe isolation from the power supply.
DIP switches determine the maximum current. The current can
be adjusted in 1 A increments using the Charger Setup app up
to the maximum value that is configured by the DIP switches.
5111232B OI-II Webasto Next DE-EN

Terminal block

L1
Neutral
Fig. 10
DIP switch left/ON = 1
DIP switch right/OFF = 0
DIP-switch factory setting:
D4
D5
D6
Installation and electrical connection | 8
ON (1) OFF (0)
D1 D2 D3
Off Off Off
NOTE
Changes to the DIP switch settings become active after
restarting the charging station.
D1 D2 D3 [A]
0 0 0 32 Factory settings
0 0 1 10
0 1 0 13
0 1 1 16
1 0 0 20
1 0 1 25
1 1 0 8
1 1 1 0
Demo mode: charging not pos-
sible
WARNING
The DIP switches must be adapted to the upstream in-
stallation by a qualified electrician.
0= no unbalance load limit for single-phase char-
ging.
1= unbalance load limit at 16 A and D1-D3 > 20 A
(for CH and AT).
0= no unbalance load limit for single-phase char-
ging.
1= unbalance load limit at 20 A and D1-D3 > 25 A
(for D).
1= TN/TT system.
0= IT system (only single-phase connection pos-
sible).
EN
D4 D5 D6
On On On
Description
