8.

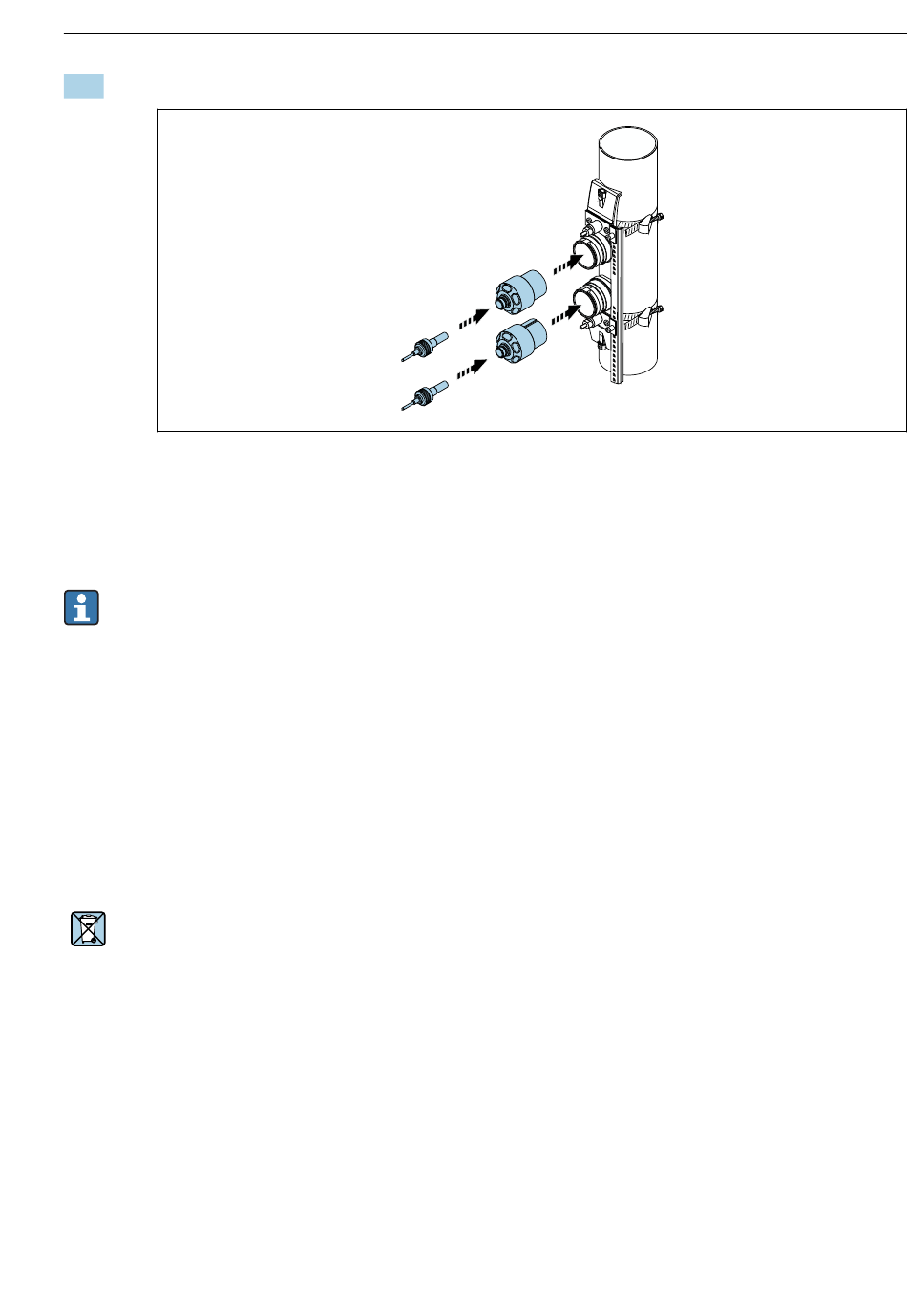

Insert the sensor cable into the sensor until the end stop and tighten the coupling nut.
19
Mounting the sensor and connecting the sensor cable
The sensors can now be connected to the transmitter via the sensor cables and the
error message can be checked in the sensor check function. This completes the
mounting procedure.
• The visible measuring pipe surface must be clean (free from flaking paint and/or rust)
to ensure good acoustic contact.
• If the sensor is removed from the measuring pipe, it must be cleaned and new coupling
gel applied (if there is no coupling pad).
• On rough measuring pipe surfaces, the gaps in the rough surface must be filled with
sufficient amounts of coupling gel if the use of the coupling pad does not suffice
(installation quality check).
9
Disposal
If required by the Directive 2012/19/EU on waste electrical and electronic equipment
(WEEE), the product is marked with the depicted symbol in order to minimize the disposal
of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as
unsorted municipal waste. Instead, return them to Endress+Hauser for disposal under the
applicable conditions.
Endress+Hauser
EA01368D
31
