*The distance between the strap bolt and strapping band lock must be at least 500 mm (20 in).
• For single-traverse mounting with 180° (opposite) (single-path measurement,
A0044304), (two-path measurement, A0043168)
• For double-traverse mounting (single-path measurement, A0044305), (two-path
measurement, A0043309)
• Electrical connection
8.2.8
Sensor holder with welded bolts (Prosonic Flow P, W)
Can be used for
• Measuring devices with measuring range DN 50 to 4000 (2 to 160")
• Mounting on pipes DN 50 to 4000 (2 to 160")
Procedure:
• The welded bolts must be fixed at the same installation distances as the mounting bolts
with strapping bands. The following sections explain how to align the mounting bolts,
depending on the mounting method and measurement method:
• Installation for measurement via 1 traverse →  26
• Installation for measurement via 2 traverses →  29
• The sensor holder is secured as standard with a locking nut with a metric M6 ISO thread. If
another thread should be used for fastening purposes, a sensor holder with a detachable
locking nut must be used.
M6
1
 8

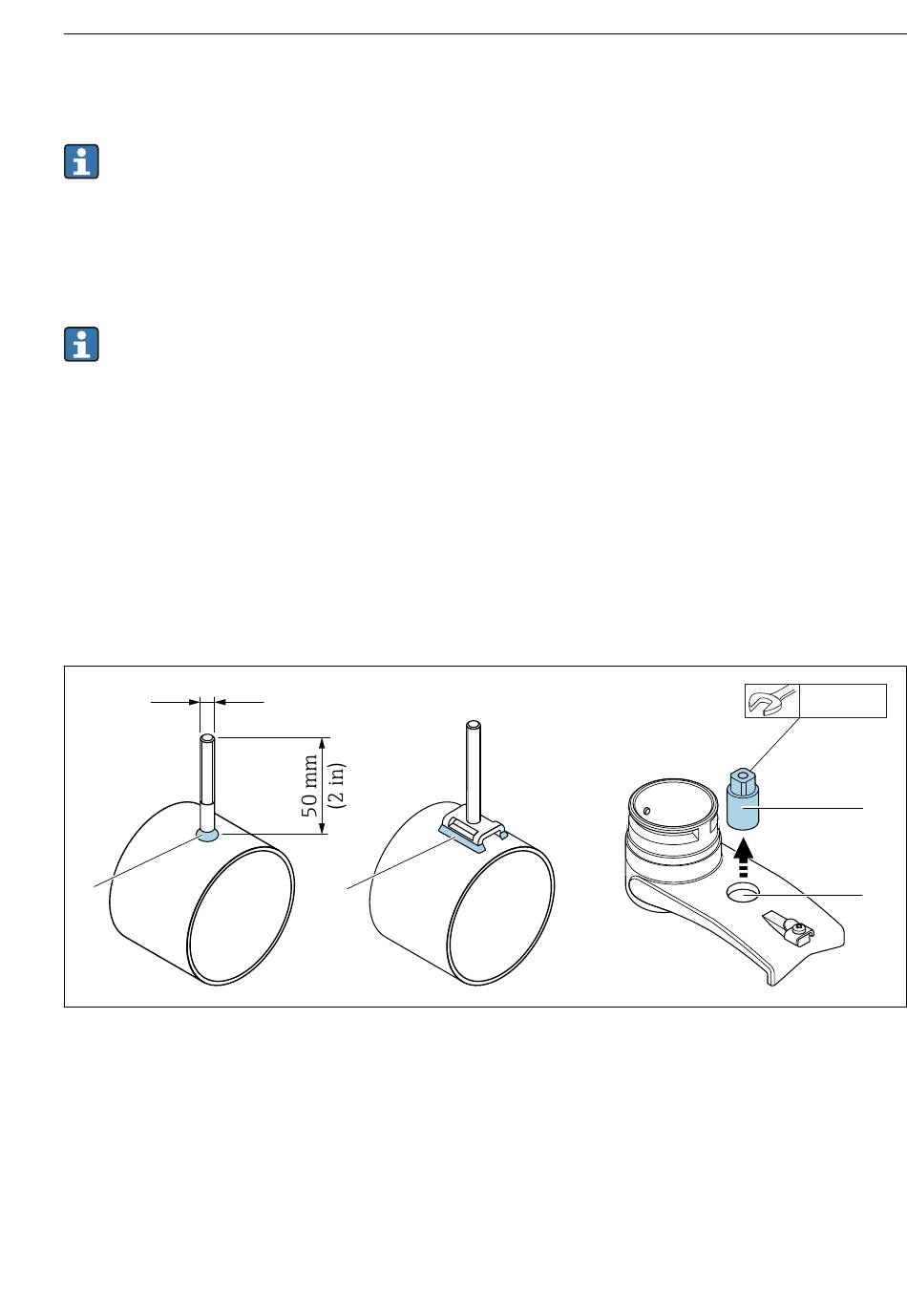

Holder with welded bolts
1
Welding seam
2
Locking nut
3
Hole diameter max. 8.7 mm (0.34 in)
Endress+Hauser
1
EA01368D
13 mm
2
3
23
