Overall description

Introduction

HRV 501 overview

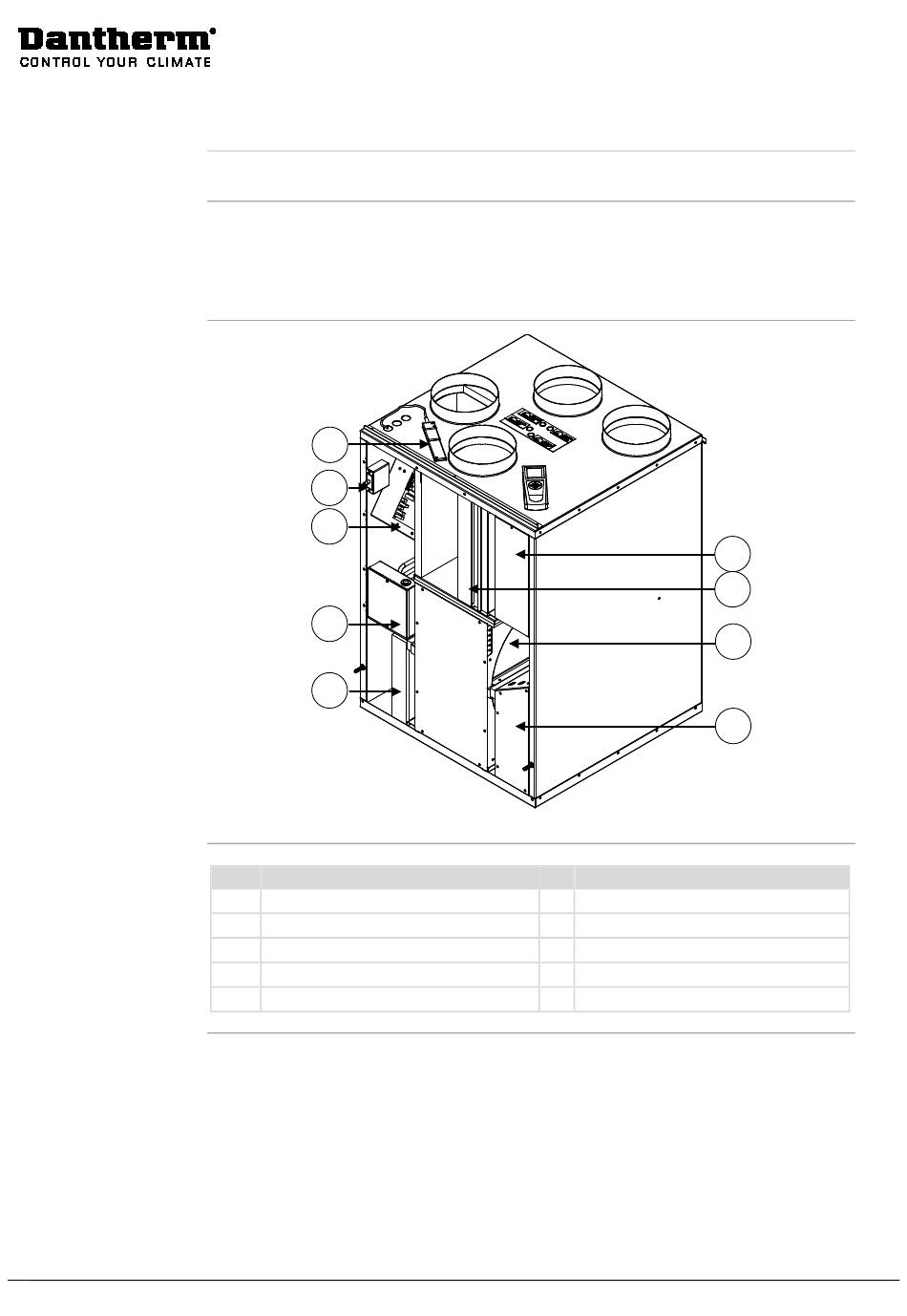

Illustration, inter-
nal
Parts overview
4
This section gives you a description of the overall unit.
HRV 501 ventilation unit, supply fresh air to residential home, and exchanging heat
from outgoing air to incoming air, resulting in very low energy loss.
HRV 501 is designed to be wall mounted in dry surroundings and >10°C. e.g. utility
room or similar heated rooms.
1
2
3
4
5
No.
1 Antenna module
2 Safety switch
3 Control board
4 Electric heating element (accessory)
5 Filter (G4)
Fig. 1
Part No.
6
7
8
9
6
7
8
9
Part
Supply air fan
Filter (F7)
Heat exchanger
Extract air fan
