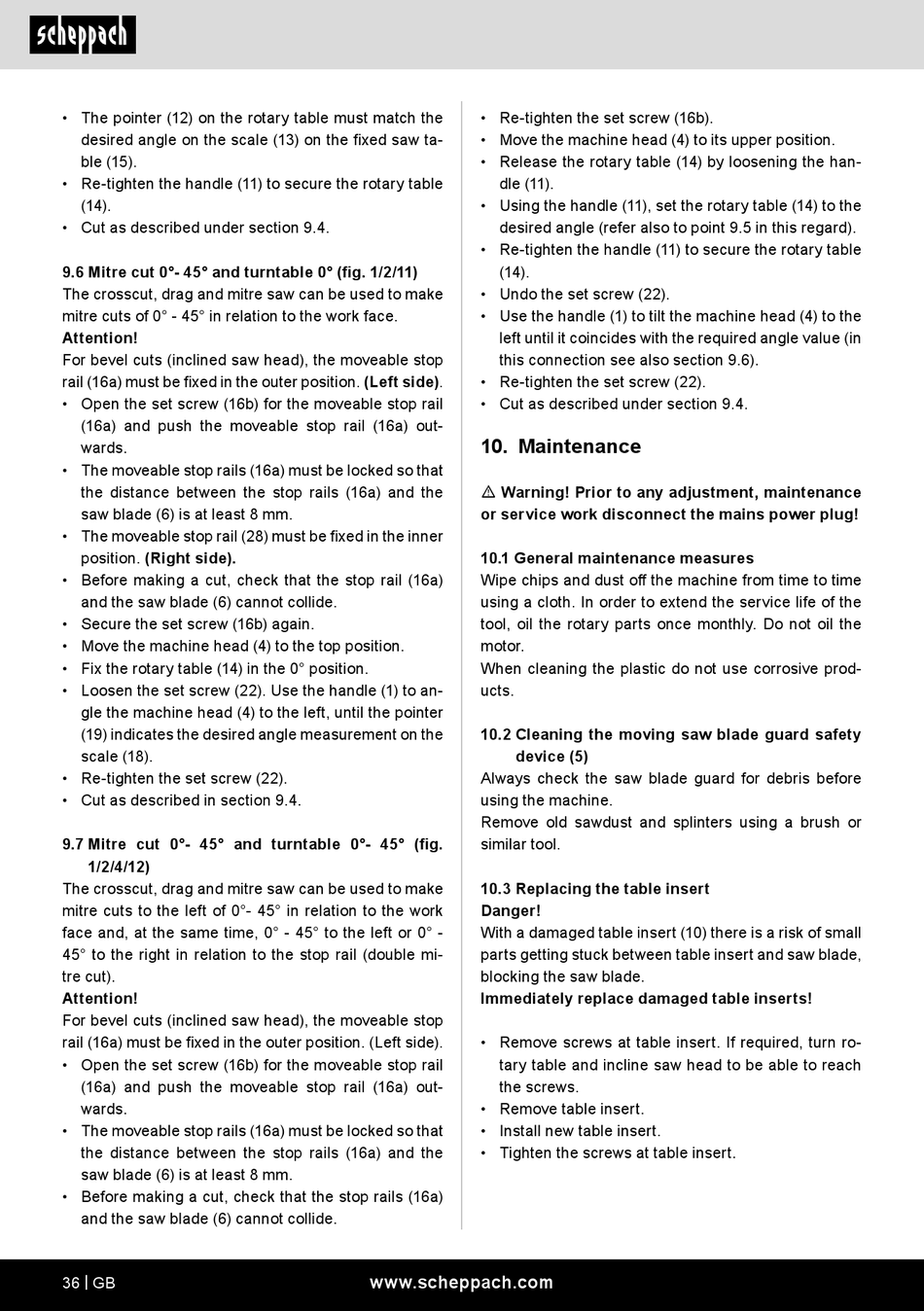

• The pointer (12) on the rotary table must match the
desired angle on the scale (13) on the fixed saw ta-
ble (15).
• Re-tighten the handle (11) to secure the rotary table
(14).
• Cut as described under section 9.4.
9.6 Mitre cut 0°- 45° and turntable 0° (fig. 1/2/11)
The crosscut, drag and mitre saw can be used to make
mitre cuts of 0° - 45° in relation to the work face.
Attention!
For bevel cuts (inclined saw head), the moveable stop
rail (16a) must be fixed in the outer position. (Left side).
• Open the set screw (16b) for the moveable stop rail
(16a) and push the moveable stop rail (16a) out-
wards.
• The moveable stop rails (16a) must be locked so that
the distance between the stop rails (16a) and the
saw blade (6) is at least 8 mm.
• The moveable stop rail (28) must be fixed in the inner
position. (Right side).
• Before making a cut, check that the stop rail (16a)
and the saw blade (6) cannot collide.
• Secure the set screw (16b) again.
• Move the machine head (4) to the top position.
• Fix the rotary table (14) in the 0° position.
• Loosen the set screw (22). Use the handle (1) to an-
gle the machine head (4) to the left, until the pointer
(19) indicates the desired angle measurement on the
scale (18).
• Re-tighten the set screw (22).
• Cut as described in section 9.4.
9.7 Mitre cut 0°- 45° and turntable 0°- 45° (fig.
1/2/4/12)
The crosscut, drag and mitre saw can be used to make
mitre cuts to the left of 0°- 45° in relation to the work
face and, at the same time, 0° - 45° to the left or 0° -
45° to the right in relation to the stop rail (double mi-
tre cut).
Attention!
For bevel cuts (inclined saw head), the moveable stop
rail (16a) must be fixed in the outer position. (Left side).
• Open the set screw (16b) for the moveable stop rail
(16a) and push the moveable stop rail (16a) out-
wards.
• The moveable stop rails (16a) must be locked so that
the distance between the stop rails (16a) and the
saw blade (6) is at least 8 mm.
• Before making a cut, check that the stop rails (16a)
and the saw blade (6) cannot collide.
36 | GB
• Re-tighten the set screw (16b).
• Move the machine head (4) to its upper position.
• Release the rotary table (14) by loosening the han-
dle (11).
• Using the handle (11), set the rotary table (14) to the
desired angle (refer also to point 9.5 in this regard).
• Re-tighten the handle (11) to secure the rotary table
(14).
• Undo the set screw (22).
• Use the handle (1) to tilt the machine head (4) to the
left until it coincides with the required angle value (in
this connection see also section 9.6).
• Re-tighten the set screw (22).
• Cut as described under section 9.4.

10. Maintenance

m Warning! Prior to any adjustment, maintenance
or service work disconnect the mains power plug!
10.1 General maintenance measures
Wipe chips and dust off the machine from time to time
using a cloth. In order to extend the service life of the
tool, oil the rotary parts once monthly. Do not oil the
motor.
When cleaning the plastic do not use corrosive prod-
ucts.
10.2 Cleaning the moving saw blade guard safety
device (5)
Always check the saw blade guard for debris before
using the machine.
Remove old sawdust and splinters using a brush or
similar tool.

10.3 Replacing the table insert

Danger!
With a damaged table insert (10) there is a risk of small
parts getting stuck between table insert and saw blade,
blocking the saw blade.
Immediately replace damaged table inserts!
• Remove screws at table insert. If required, turn ro-
tary table and incline saw head to be able to reach
the screws.
• Remove table insert.
• Install new table insert.
• Tighten the screws at table insert.
