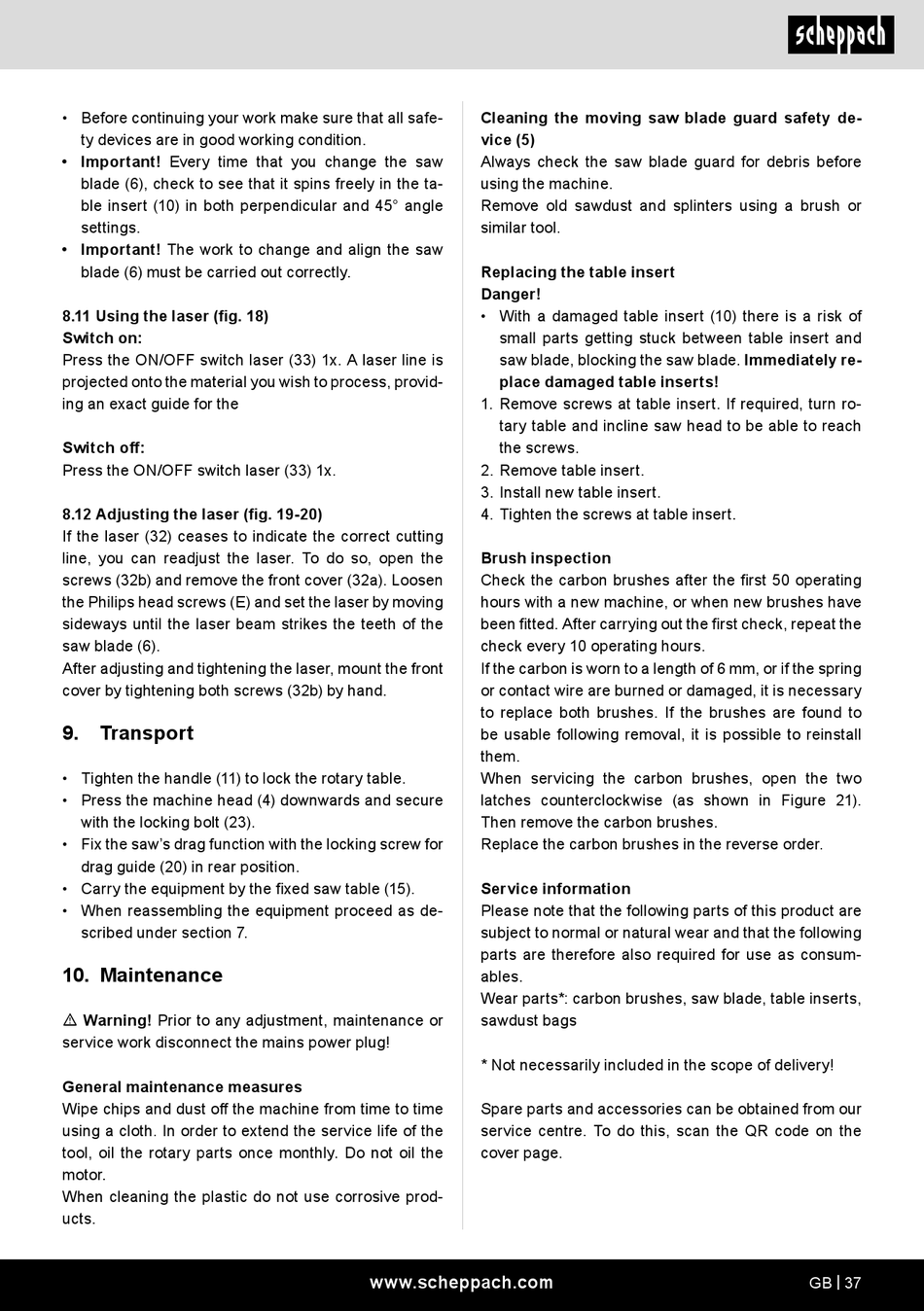

• Before continuing your work make sure that all safe-
ty devices are in good working condition.
• Important! Every time that you change the saw
blade (6), check to see that it spins freely in the ta-
ble insert (10) in both perpendicular and 45° angle
settings.
• Important! The work to change and align the saw
blade (6) must be carried out correctly.
8.11 Using the laser (fig. 18)
Switch on:
Press the ON/OFF switch laser (33) 1x. A laser line is
projected onto the material you wish to process, provid-
ing an exact guide for the
Switch off:
Press the ON/OFF switch laser (33) 1x.
8.12 Adjusting the laser (fig. 19-20)
If the laser (32) ceases to indicate the correct cutting
line, you can readjust the laser. To do so, open the
screws (32b) and remove the front cover (32a). Loosen
the Philips head screws (E) and set the laser by moving
sideways until the laser beam strikes the teeth of the
saw blade (6).
After adjusting and tightening the laser, mount the front
cover by tightening both screws (32b) by hand.
9.

Transport

• Tighten the handle (11) to lock the rotary table.
• Press the machine head (4) downwards and secure
with the locking bolt (23).
• Fix the saw's drag function with the locking screw for
drag guide (20) in rear position.
• Carry the equipment by the fixed saw table (15).
• When reassembling the equipment proceed as de-
scribed under section 7.

10. Maintenance

m Warning! Prior to any adjustment, maintenance or
service work disconnect the mains power plug!
General maintenance measures
Wipe chips and dust off the machine from time to time
using a cloth. In order to extend the service life of the
tool, oil the rotary parts once monthly. Do not oil the
motor.
When cleaning the plastic do not use corrosive prod-
ucts.
Cleaning the moving saw blade guard safety de-
vice (5)
Always check the saw blade guard for debris before
using the machine.
Remove old sawdust and splinters using a brush or
similar tool.
Replacing the table insert
Danger!
• With a damaged table insert (10) there is a risk of
small parts getting stuck between table insert and
saw blade, blocking the saw blade. Immediately re-
place damaged table inserts!
1. Remove screws at table insert. If required, turn ro-
tary table and incline saw head to be able to reach
the screws.
2. Remove table insert.
3. Install new table insert.
4. Tighten the screws at table insert.
Brush inspection
Check the carbon brushes after the first 50 operating
hours with a new machine, or when new brushes have
been fitted. After carrying out the first check, repeat the
check every 10 operating hours.
If the carbon is worn to a length of 6 mm, or if the spring
or contact wire are burned or damaged, it is necessary
to replace both brushes. If the brushes are found to
be usable following removal, it is possible to reinstall
them.
When servicing the carbon brushes, open the two
latches counterclockwise (as shown in Figure 21).
Then remove the carbon brushes.
Replace the carbon brushes in the reverse order.
Service information
Please note that the following parts of this product are
subject to normal or natural wear and that the following
parts are therefore also required for use as consum-
ables.
Wear parts*: carbon brushes, saw blade, table inserts,
sawdust bags
* Not necessarily included in the scope of delivery!
Spare parts and accessories can be obtained from our
service centre. To do this, scan the QR code on the
cover page.
