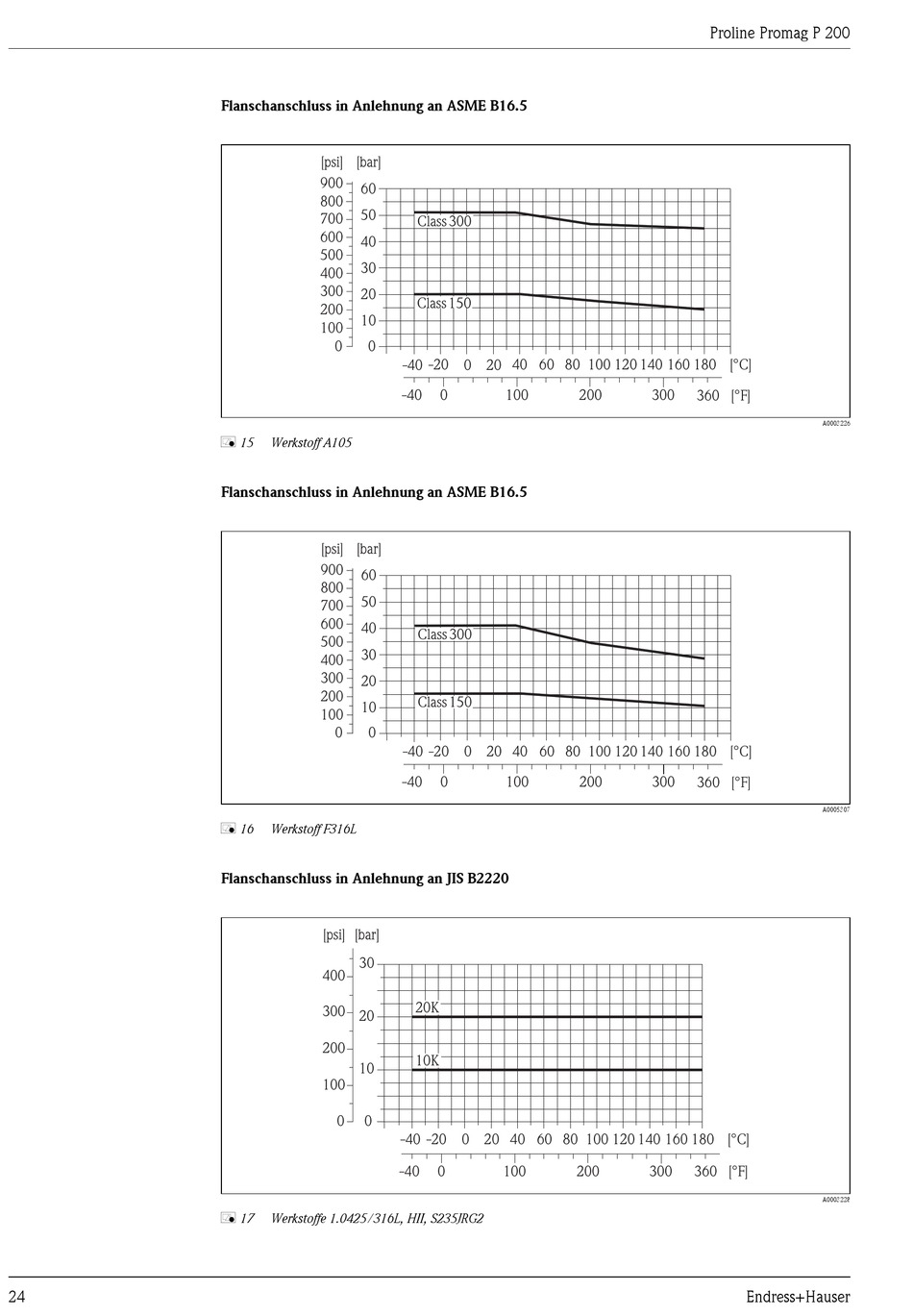

Flanschanschluss in Anlehnung an ASME B16.5
[psi] [bar]
900
60
800
50
700
600
40
500
30
400
300
20
200
10
100
0 0
å 15 Werkstoff A105
Flanschanschluss in Anlehnung an ASME B16.5
[psi] [bar]
900
60
800
50
700
600
40
500
30
400
300
20
200
10
100
0 0
å 16 Werkstoff F316L
Flanschanschluss in Anlehnung an JIS B2220
[psi] [bar]
30
400
300
20
200
10
100
0 0
å 17 Werkstoffe 1.0425/316L, HII, S235JRG2
Class 300
Class 150
-40 -20 0 20 40 60 80 100 120 140 160 180 [°C]
-40 0 100
Class 300
Class 150
-40 -20 0 20 40 60 80 100 120 140 160 180 [°C]
-40 0 100
20K
10K
-40 -20 0 20 40 60 80 100 120 140 160 180 [°C]
-40 0 100
Proline Promag P 200
200 300 360 [°F]
200 300 360 [°F]
200 300 360 [°F]
Endress+Hauser
A0003226
A0005307
A0003228
