5.3.2

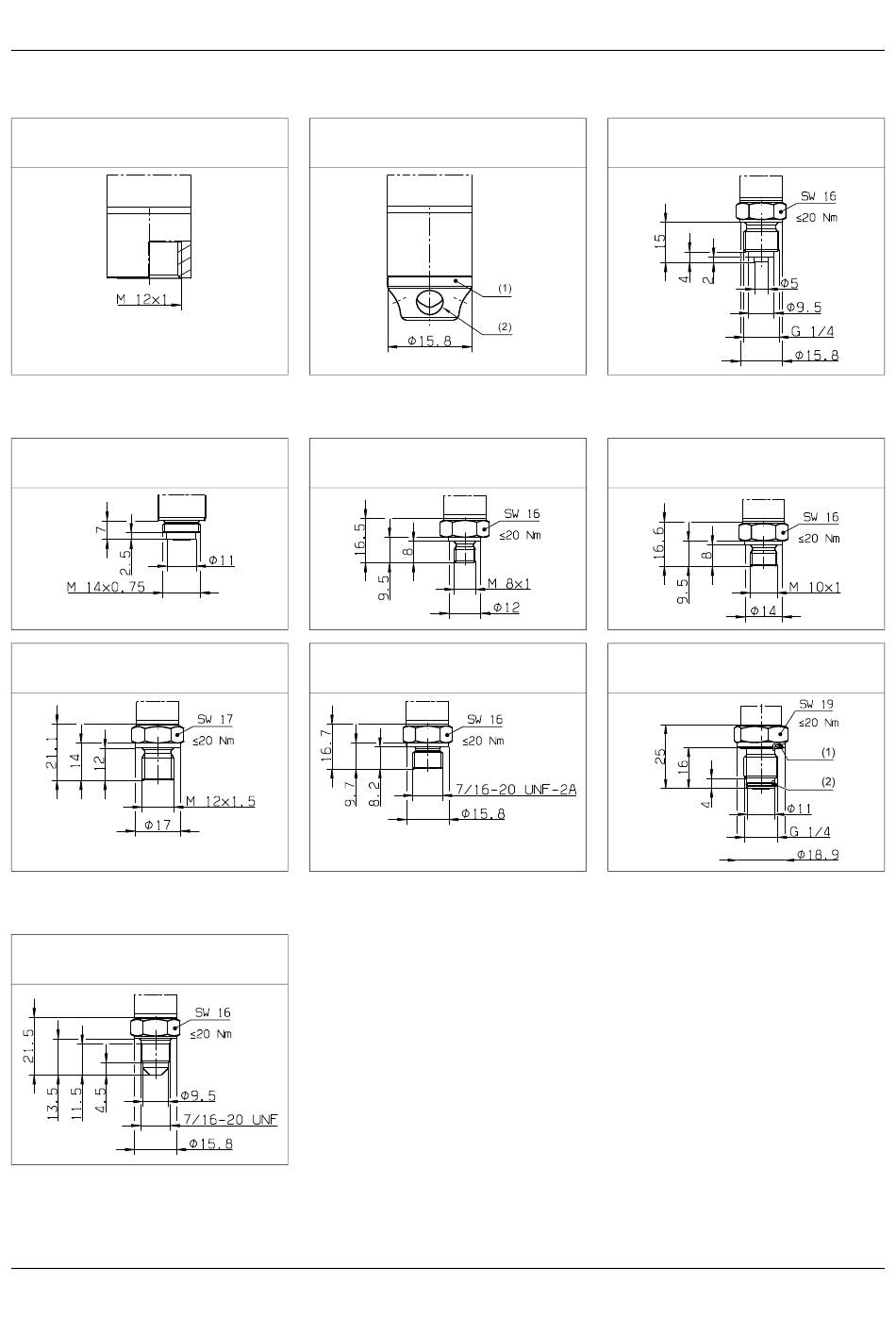

Process connections

480
M12 × 1 internal
507
M14 × 0.75 front-flush
532
M12 (× 1.5) DIN 3852-1
562
7/16-20 UNF SAE J514
481
M12 × 1 with protective cap
(1) Protective cap
(2) 5× drilled hole Ø 5 mm
530
M8 (× 1) DIN 3852-1
544
7/16-20 UNF-2A
5 Mounting
502
G 1/4 according to DIN EN 837
531
M10 (× 1) DIN 3852-1
561
G 1/4 front-flush, double seal
(1) Profile seal G 1/4
(2) O-ring 9×1
17
