Accessories - JUMO MIDAS S22 Ex Betriebsanleitung

3.4

Accessories

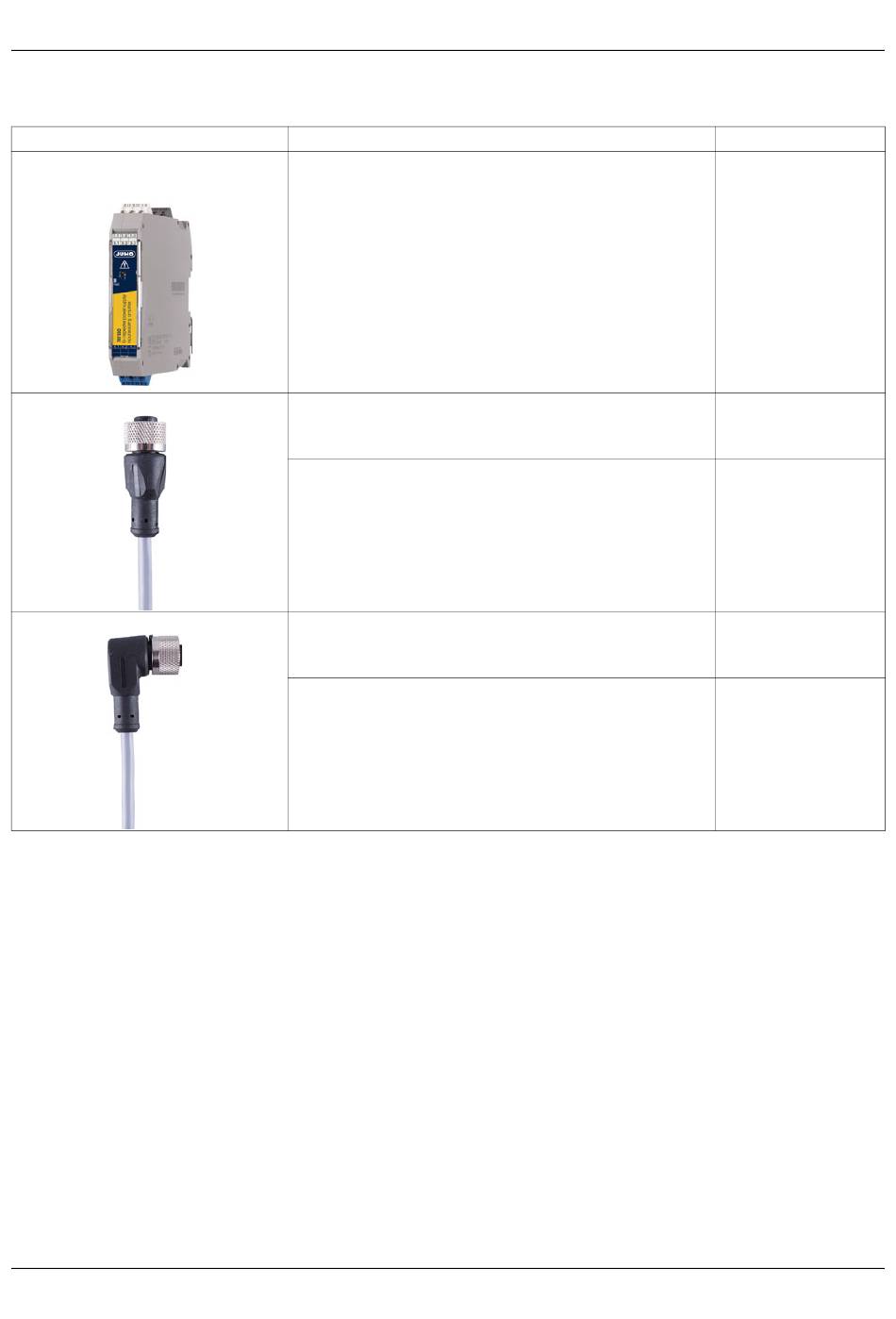

Designation
Ex-i repeater power supply/input
isolating amplifier
Cable box, straight
Cable box, angled
3 Identifying the device version
Description
The Ex-i repeater power supply/input isolating amplifier
is designed for operating intrinsically safe transmitters
(Ex-i) and mA current sources installed in potentially ex-
plosive (Ex) areas.
Two-wire transmitters are supplied with energy and an-
alog 0/4 to 20 mA measured values are transmitted from
the Ex-area to the non-Ex-area. The output of the mod-
ule can be operated actively or passively. Further tech-
nical data and the relevant safety requirements are
available in the operating manual B 707530.0.
The gray PVC connecting cable is 2 m in length and has
a 4-pole, straight M12 × 1 connector with gold-plated
contacts on the device side.
The blue PUR connecting cable is 2 m in length and has
a 4-pole, straight M12 × 1 connector with gold-plated
contacts on the device side.
A pressure equalization hose that is used for versions
with a relative pressure range is included in the cable.
The gray PVC connecting cable is 2 m in length and has
a 4-pole, angled M12 × 1 connector with gold-plated
contacts on the device side.
The blue PUR connecting cable is 2 m in length and has
a 4-pole, angled M12 × 1 connector with gold-plated
contacts on the device side.
A pressure equalization hose that is used for versions
with a relative pressure range is included in the cable.
Part no.
00577948
00404585
00693035
00409334
00693038
11
