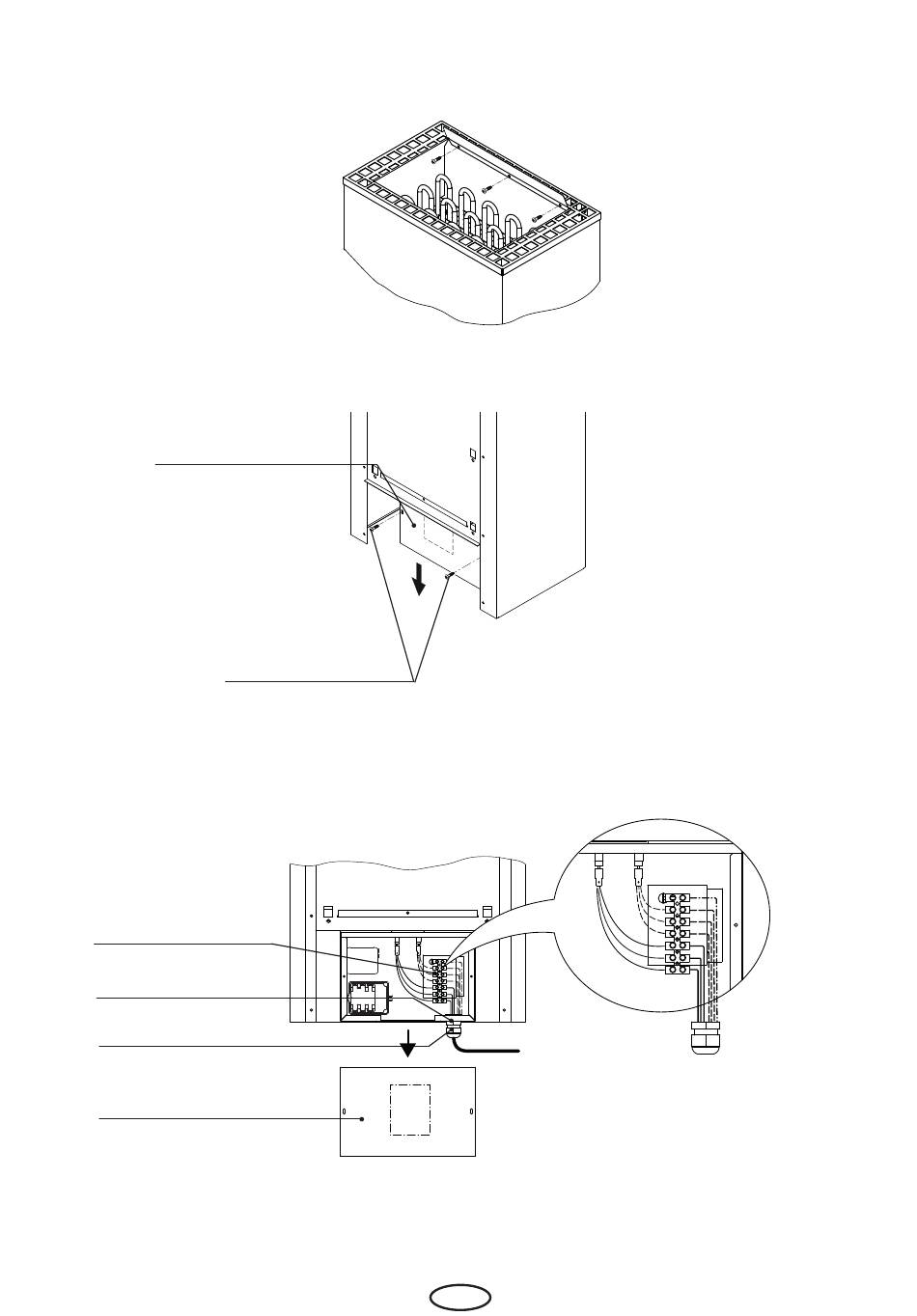

• Attach the enclosed air deflector as shown in Fig. 5. To do this, first release the central screw on
the top cover, then attach the deflector using this and two more tapping screws 4.2 x 9.5 from
the poly bag.
• Open the terminal box by undoing 2 screws as shown in Fig. 6 and pulling the cover panel
downwards.
Terminal box lid
• Connect the power cable as shown in the wiring diagram.
• There is a wiring diagram attached on the inside of the terminal box.
• Electrical connection shall be made as per Fig. 7 and connection example.
Terminal
Counternut
Cable screw connection
Connection box lid
• Check that all clamps are tightened correctly.
• Close the terminal box and the cover again using the two screws. Ensure that the cover panel is
pushed under the edge of the terminal box as far as possible.
